Auxiliary Relay Box 1

NOTE: For component location, see ELECTRICAL COMPONENT LOCATOR article.

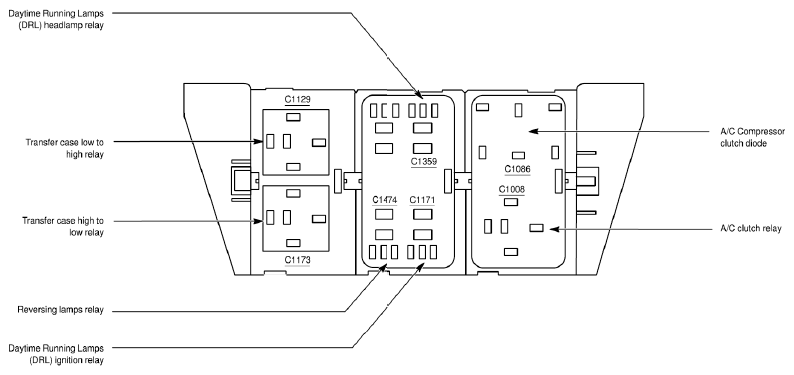

Fig 1: Auxiliary Relay Box 1 Components

Courtesy of FORD MOTOR CO.

AUXILIARY RELAY BOX 1 RELAY IDENTIFICATION

RELAY NUMBER	RELAY DESCRIPTION
C1173	Transfer case high to low relay
C1129	Transfer case low to high relay
C1359	Daytime Running Lamps (DRL) headlamp relay
C1088	A/C clutch relay
C1171	Daytime Running Lamps (DRL) Ignition Relay
C1474	Reversing lamps relay
