Connector Reference and Terminal Readings

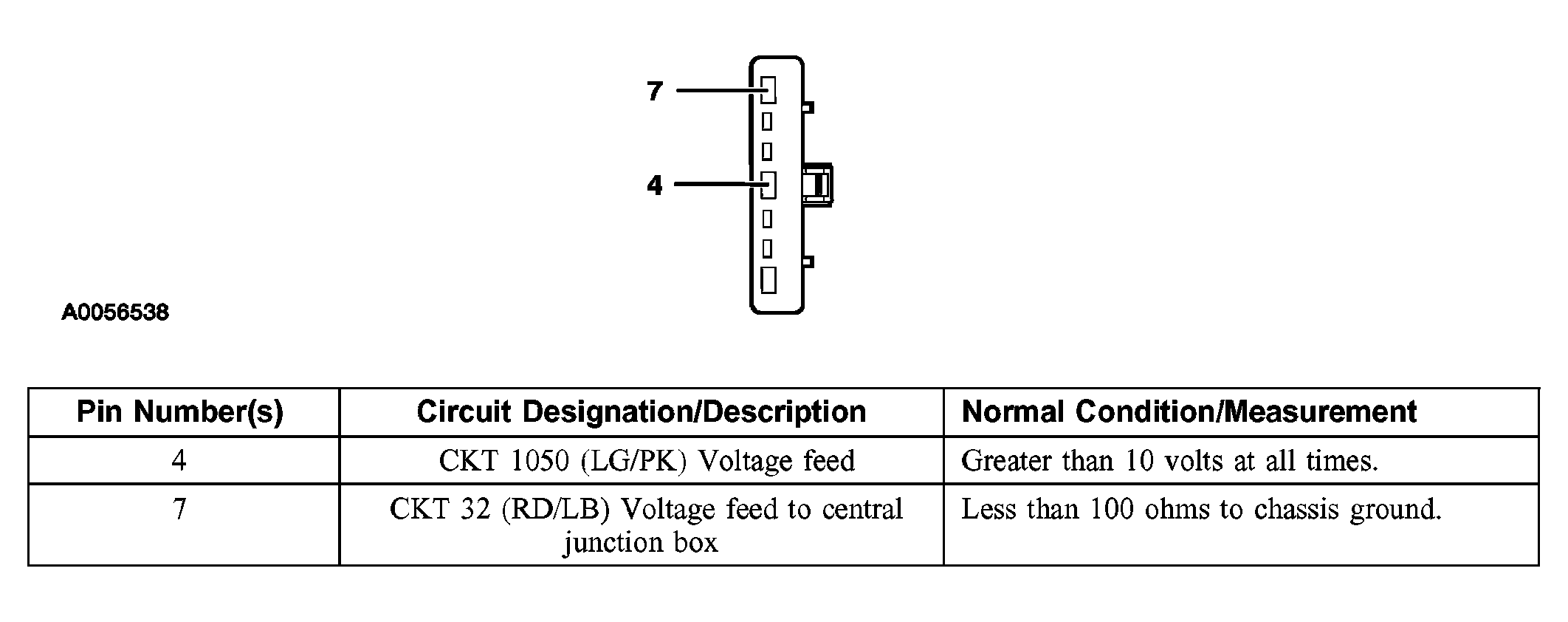

Fig 1: Identifying Ignition Switch C250 Connector Pins

Courtesy of FORD MOTOR CO.

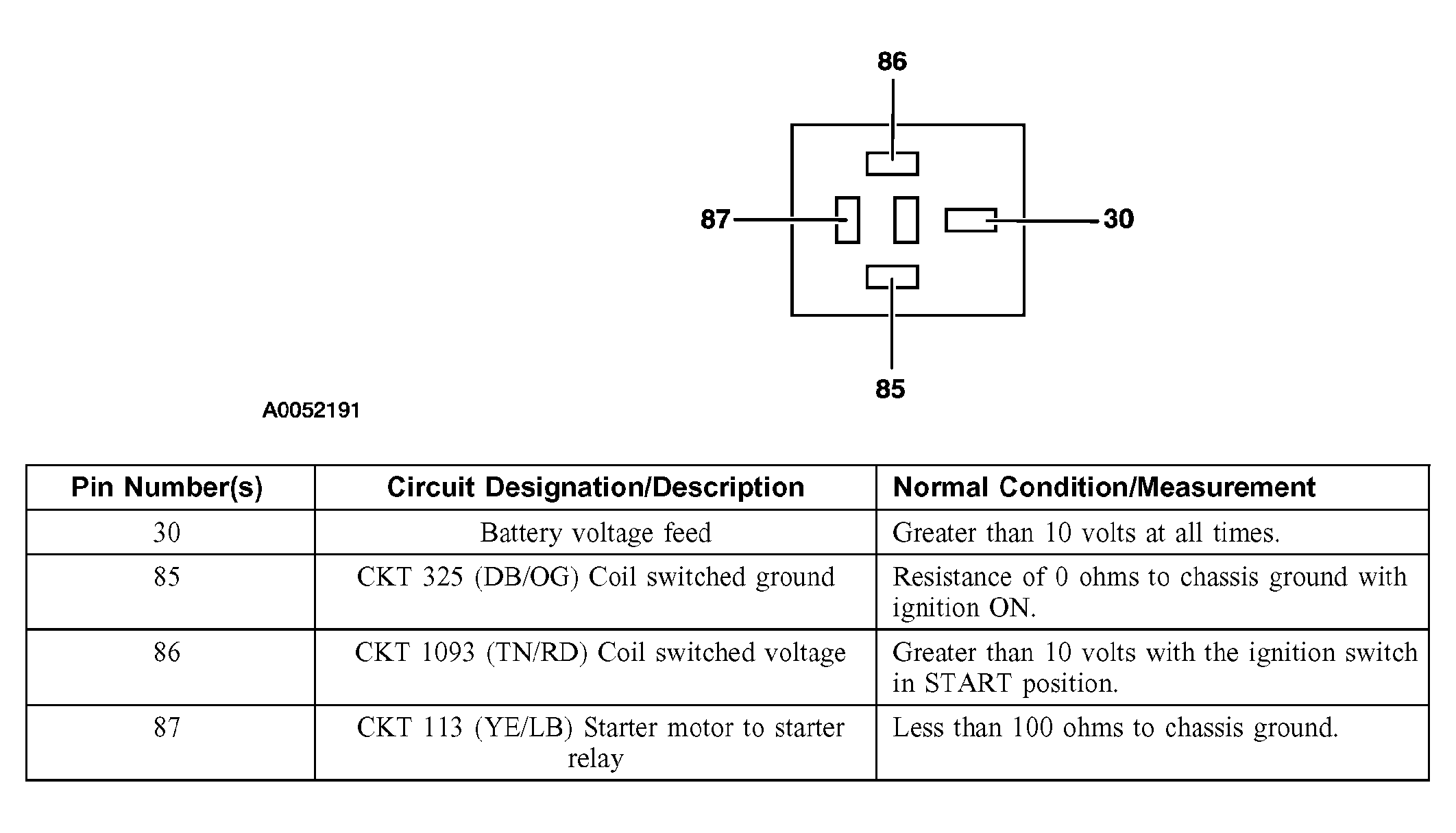

Fig 2: Identifying Starter Motor Relay Connector Pins

Courtesy of FORD MOTOR CO.

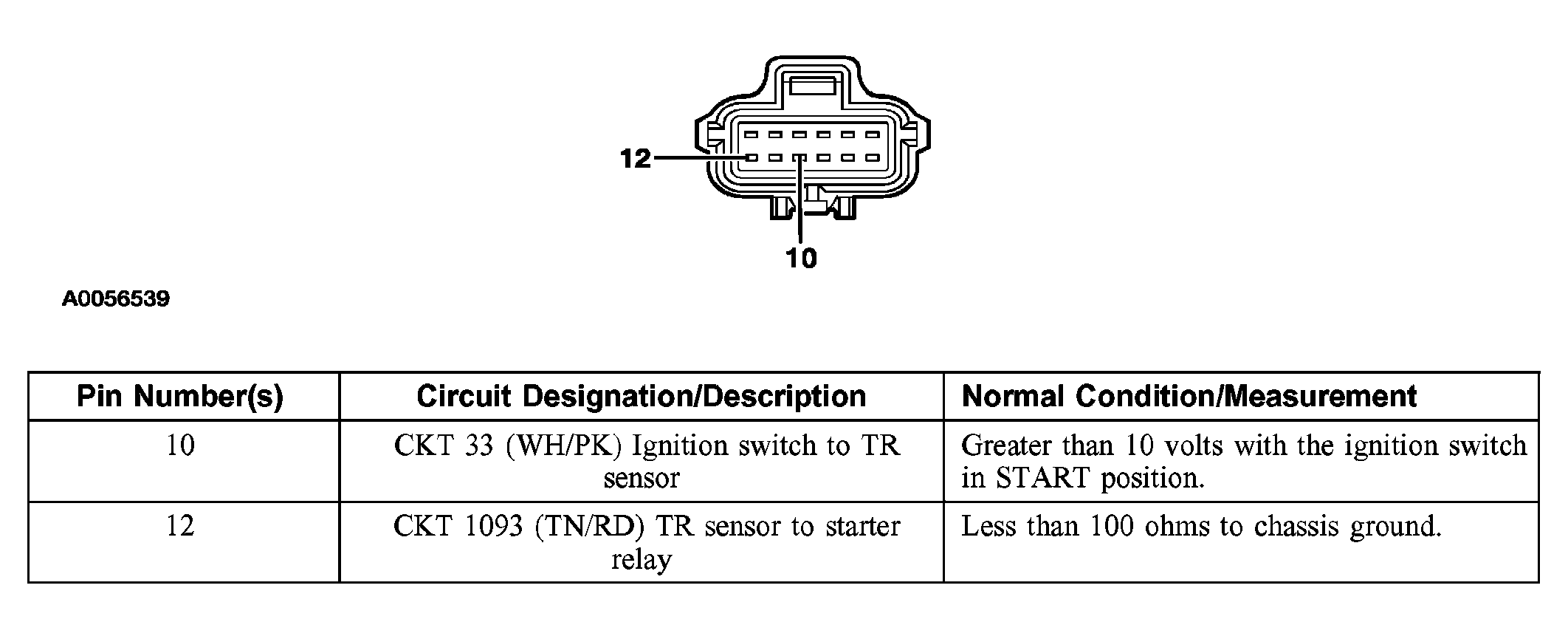

Fig 3: Identifying Digital Transmission Range (TR) Sensor C167 Connector Pins

Courtesy of FORD MOTOR CO.
