Removal and Installation
- Remove the intake manifold. For additional information, refer to ENGINE .

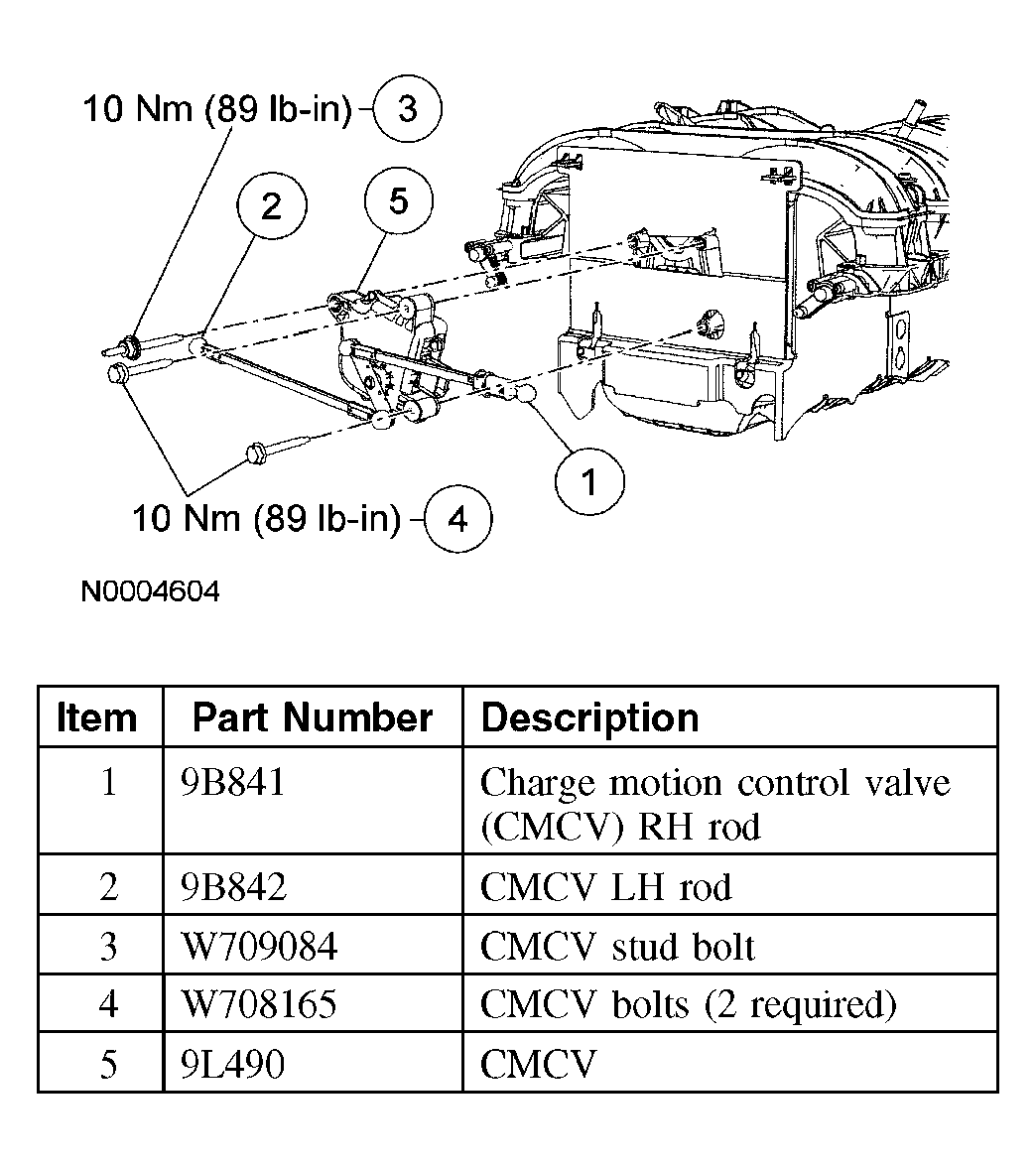

- Disconnect the charge motion control valve (CMCV) RH and LH rods from the intake manifold.
- Remove the stud bolt, the 2 bolts and the CMCV.
- To install, tighten to 10 Nm (89 lb-in).
- To install, reverse the removal procedure.
