Master window adjust switch - Expedition: Schematic

WARNING: This page is about a different car, the 2006 Lincoln Navigator and 2006 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

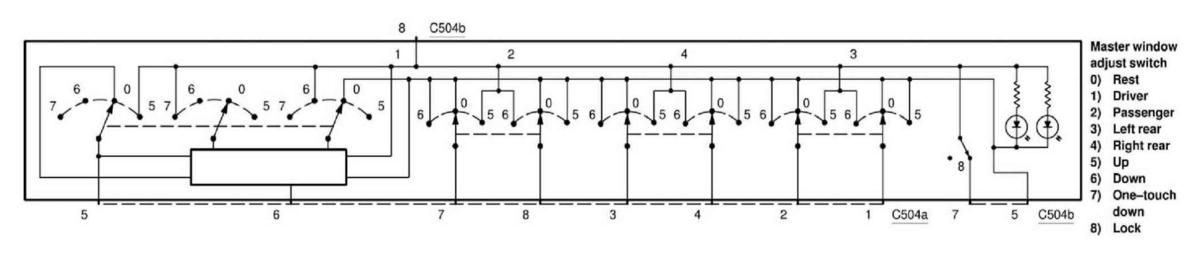

Fig 1: Master Window Adjust Switch - Schematic Diagram (Expedition)
G04596339Courtesy of FORD MOTOR CO.
