Driveshaft - Exploded View

WARNING: This page is about a different car, the 2006 Lincoln Navigator and 2006 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

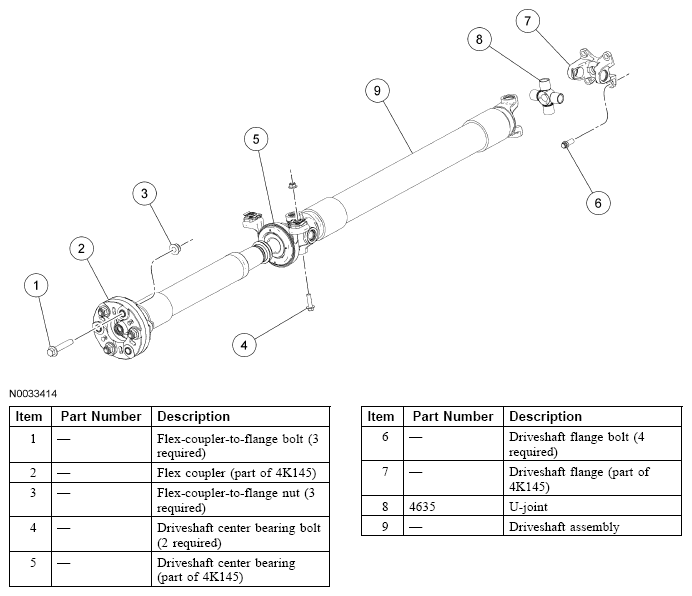

Fig 1: Exploded View Of Front Driveshaft

Courtesy of FORD MOTOR CO.

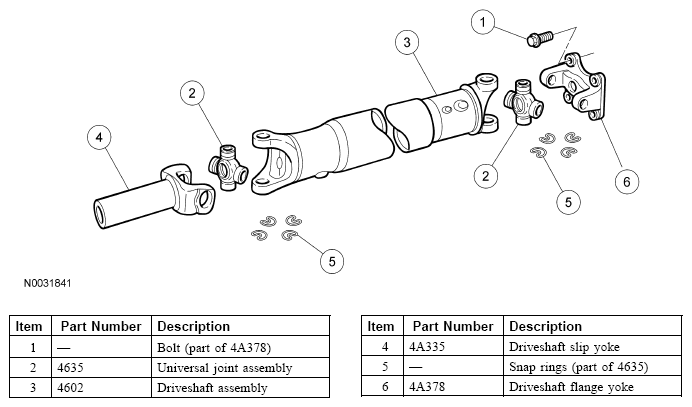

Fig 2: Exploded View Of Rear Driveshaft - Navigator 4WD, Expedition 4WD And 2WD

Courtesy of FORD MOTOR CO.

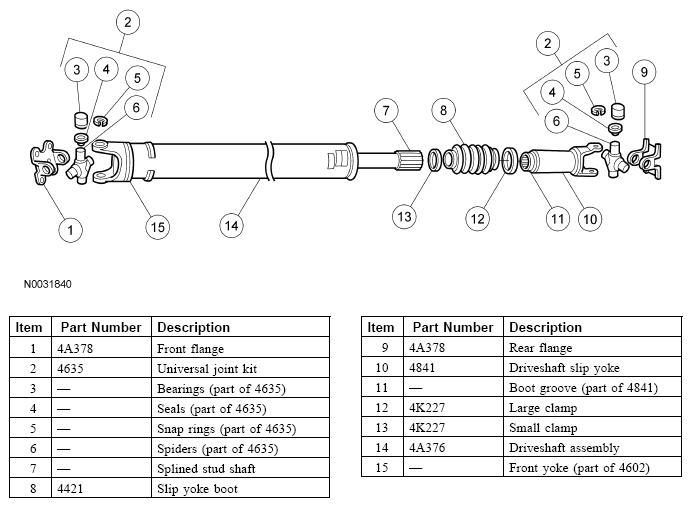

Fig 3: Exploded View Of Rear Driveshaft - Navigator 2WD

Courtesy of FORD MOTOR CO.

For additional information, refer to the appropriate procedure.
