Compressor Manifold and Tube Assembly: Notes

WARNING: This page is about a different car, the 2006 Lincoln Navigator and 2006 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL SPECIFICATION

Item	Specification
PAG Refrigerant Compressor Oil (R134a Systems) YN-12-D	WSH-M1C231-B

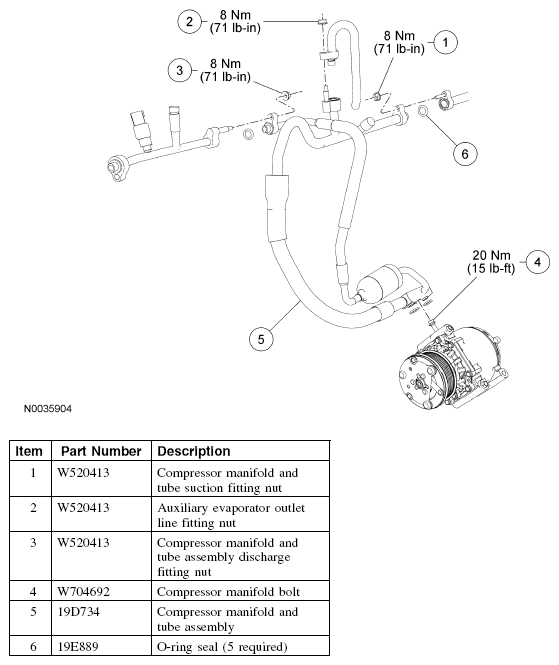

Fig 1: Compressor Manifold & Tube Assembly Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.
