WARNING: This page is about a different car, the 2006 Lincoln Navigator and 2006 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Vehicle body removed for clarity.
Exhaust system may vary by vehicle.

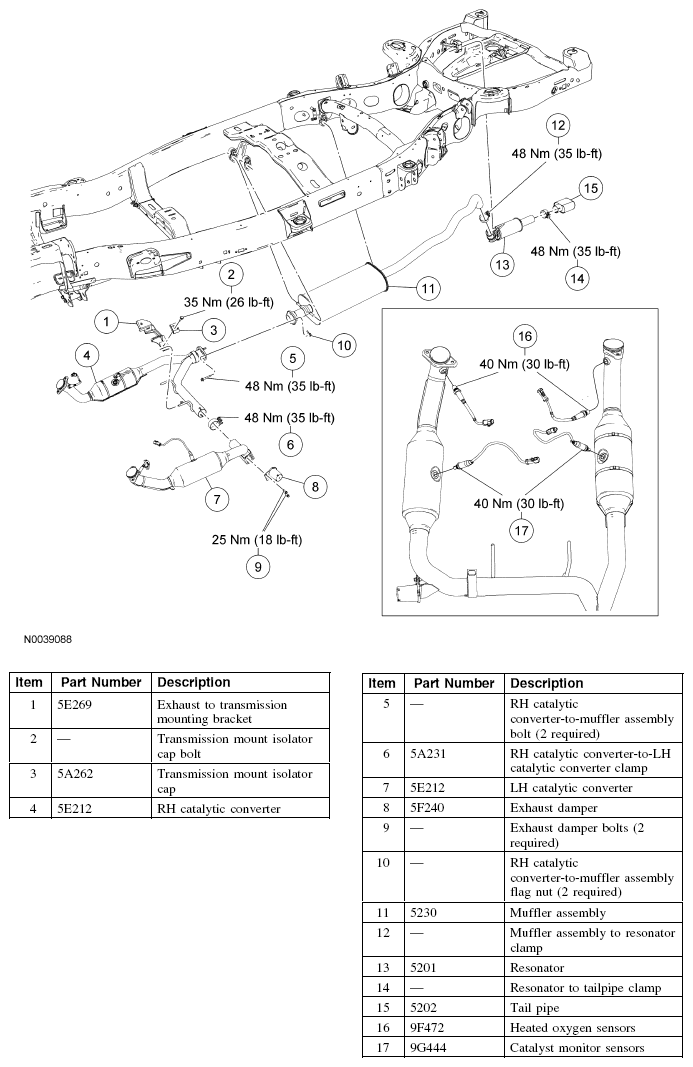

Fig 1: Exploded View Of Exhaust System Components With Torque Specifications
Courtesy of FORD MOTOR CO.
For additional information, refer to the appropriate procedure.
