Windshield Glass: Notes

WARNING: This page is about a different car, the 2006 Lincoln Navigator and 2006 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S)

G04630930Courtesy of FORD MOTOR CO.
Rotunda Pneumatic Knife with Offset Blade
107-R1511 or equivalent
G04630931Courtesy of FORD MOTOR CO.
The Pumper
164-R2459 or equivalent
G04630932Courtesy of FORD MOTOR CO.
Rotunda Interior Auto Glass Cut-Out Knife Kit
164-R2450 or equivalent
MATERIAL SPECIFICATIONS

Item Specification
DOW AUTOMOTIVE 2-HOUR CURE
Urethane Adhesive Betaseal® Express -
Urethane One Step Glass Primer Betaprime® 5500/5500 A/5500SA -
SIKA 2-HOUR CURE
Urethane Adhesive Sika Tack ASAP -
Urethane Metal and Glass Primer Sika 206 G+P -

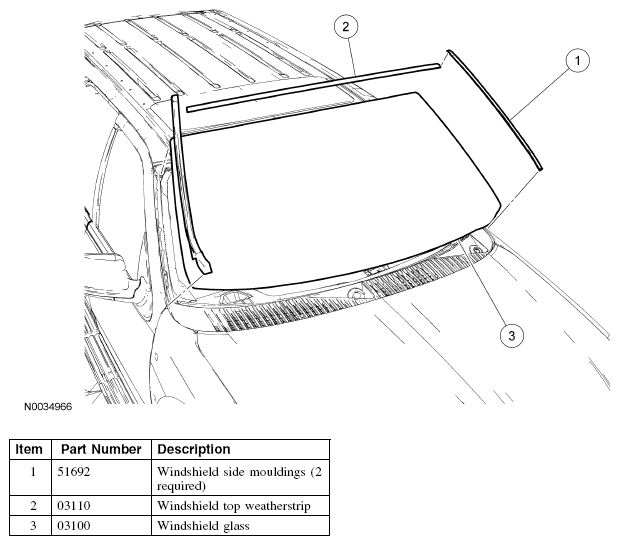

Fig 1: Exploded View Of Windshield Glass Components
G04630933Courtesy of FORD MOTOR CO.
