Rear Disc Brake System - Exploded View

WARNING: This page is about a different car, the 2006 Lincoln Navigator and 2006 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

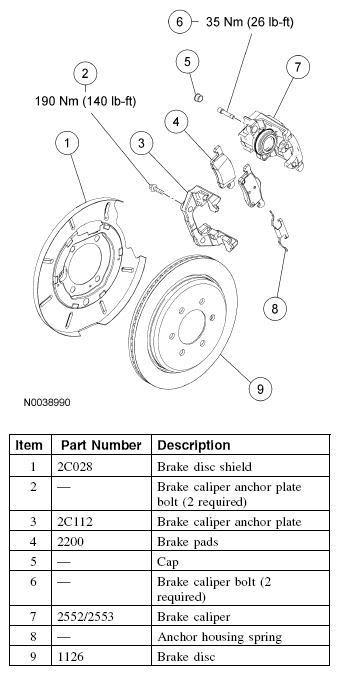

Fig 1: Rear Brake Disc Replacement Components -- With Torque Specifications
