Safety Canopy Module: Notes

WARNING: This page is about a different car, the 2006 Lincoln Navigator and 2006 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

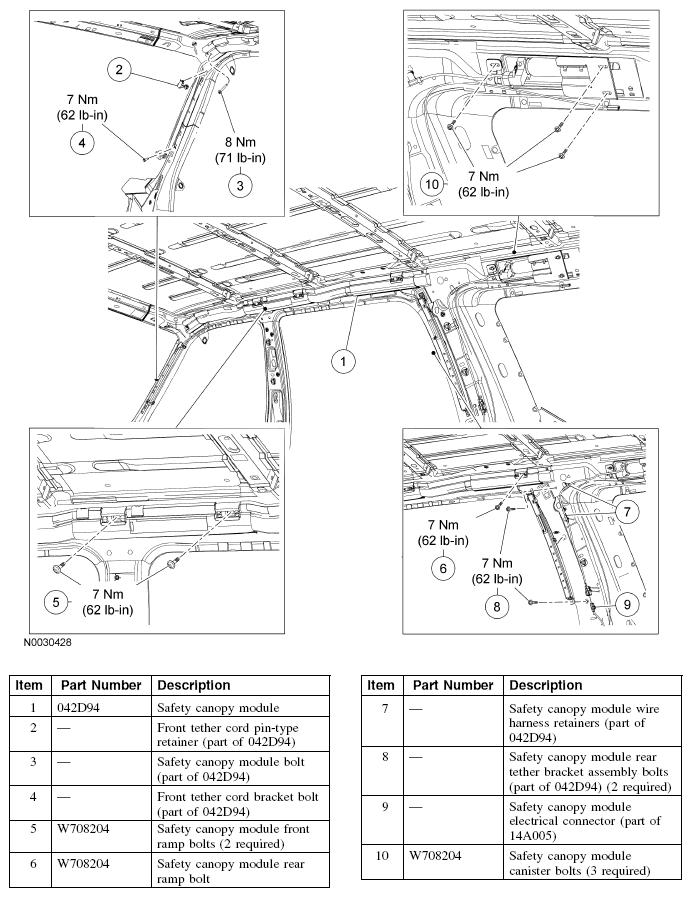

Fig 1: Exploded View Of Safety Canopy Module Components With Torque Specifications
G04631535Courtesy of FORD MOTOR CO.
