Reverse Sun Gear: Disassembly

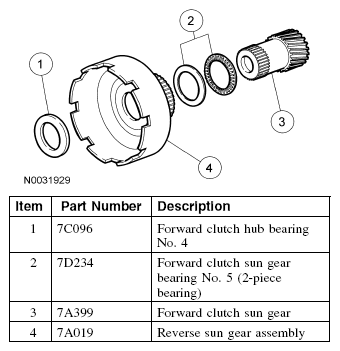

Fig 1: Exploded View Of Reverse Sun Gear Components
G04628552Courtesy of FORD MOTOR CO.
  1. Remove the reverse clutch sun gear assembly and the No. 4 forward clutch hub bearing and race.
    Fig 2: Locating No. 4 Forward Clutch Hub Bearing & Race
    G04628553Courtesy of FORD MOTOR CO.
  2. Remove the forward clutch sun gear assembly and the No. 5 forward clutch sun gear bearing and race.
    Fig 3: Locating No. 5 Forward Clutch Sun Gear Bearing & Race
    G04628554Courtesy of FORD MOTOR CO.
