Digital Transmission Range (TR) Sensor: Notes

SPECIAL TOOL TABLE

G04628309Courtesy of FORD MOTOR CO.
 Alignment Gauge, TR Sensor
307-351 (T97L-70010-A)

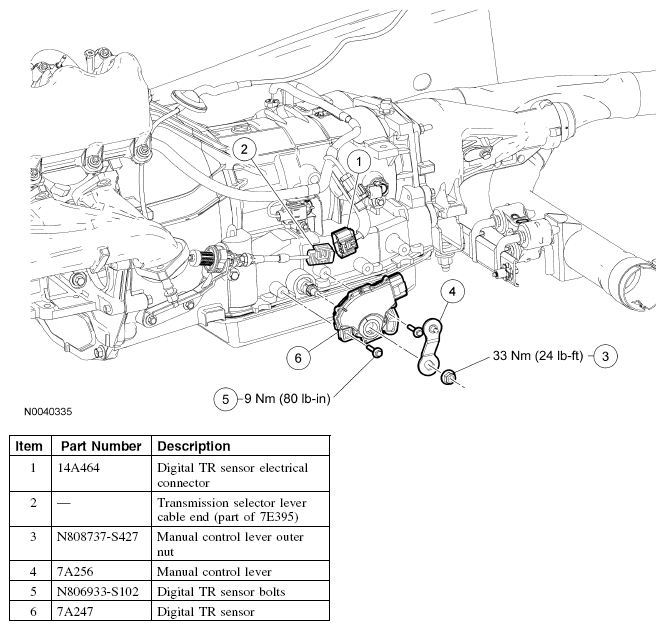

Fig 1: Identifying Digital Transmission Range (TR) Sensor
G04628310Courtesy of FORD MOTOR CO.
