Safety Belt System - Exploded View, Front

NOTE: RH side shown, LH side similar.

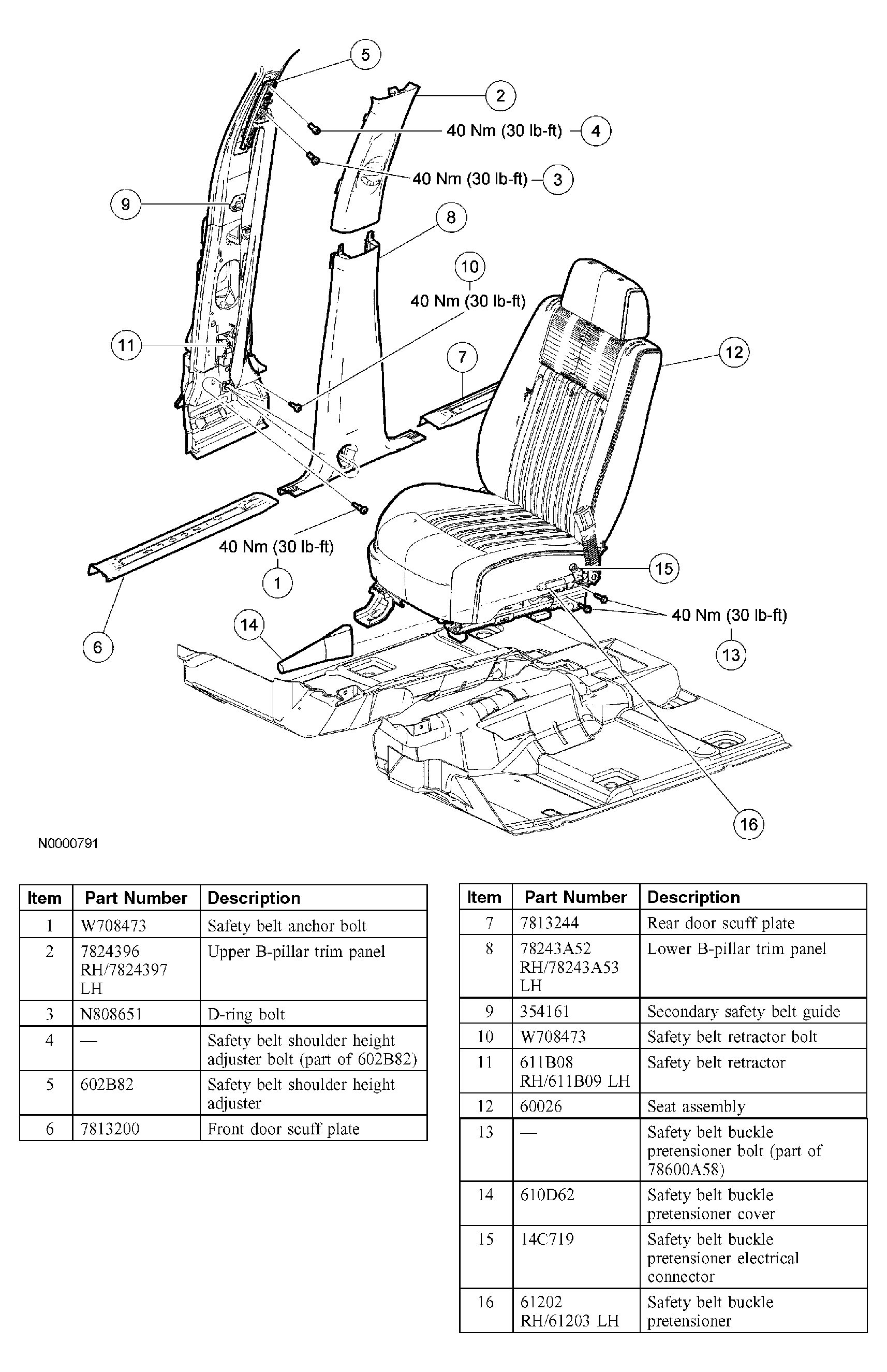

Fig 1: Exploded View Of Front Safety Belt System With Torque Specifications

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the procedures.
