Underbody Misalignment Check
- To align or square a body, take two opposite diagonal measurements between pillars. Take measurements between reference points such as crease lines or weld joints which are diagonally opposite each other on the two pillars being measured.
- When repairing a vehicle with damage on both sides, take horizontal and vertical measurements from an intact Sport Trac vehicle and transfer the dimensions to the damaged vehicle. Alignment can be made by diagonal measurements taken from points on two pillars.

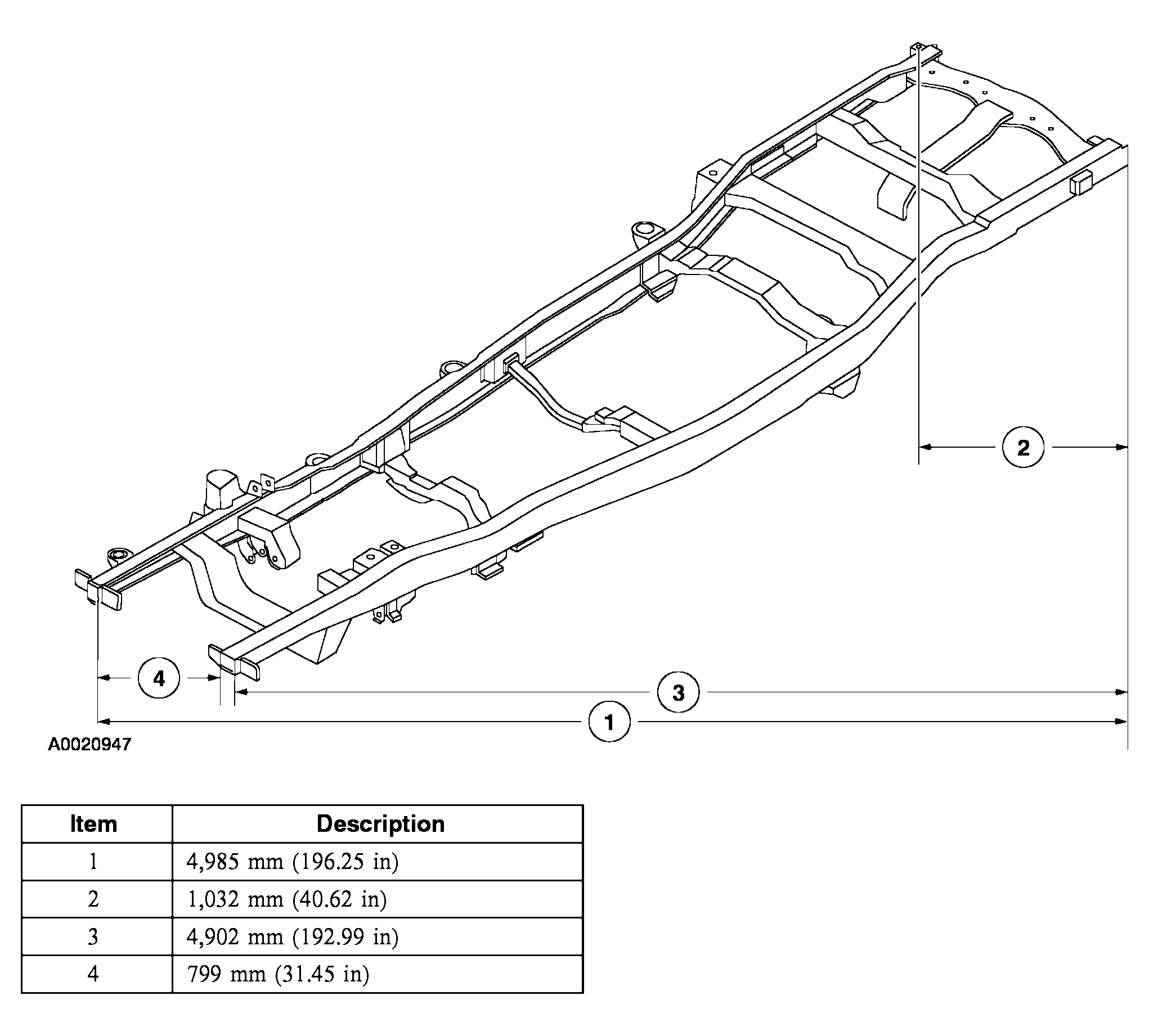

- The dimensions of the underbody must be restored in repairing major body damage to provide correct front and rear wheel geometry. Once the frame and suspension members are aligned, other repair operations can be carried out.
CAUTION:
Do not correct a serious misalignment with one jacking operation. Align each section proportionately until the correct dimensions are obtained.
NOTE:
To make sure of accurate measurements, remove all trim from the reference points to expose bare metal.
