Disassembled Views

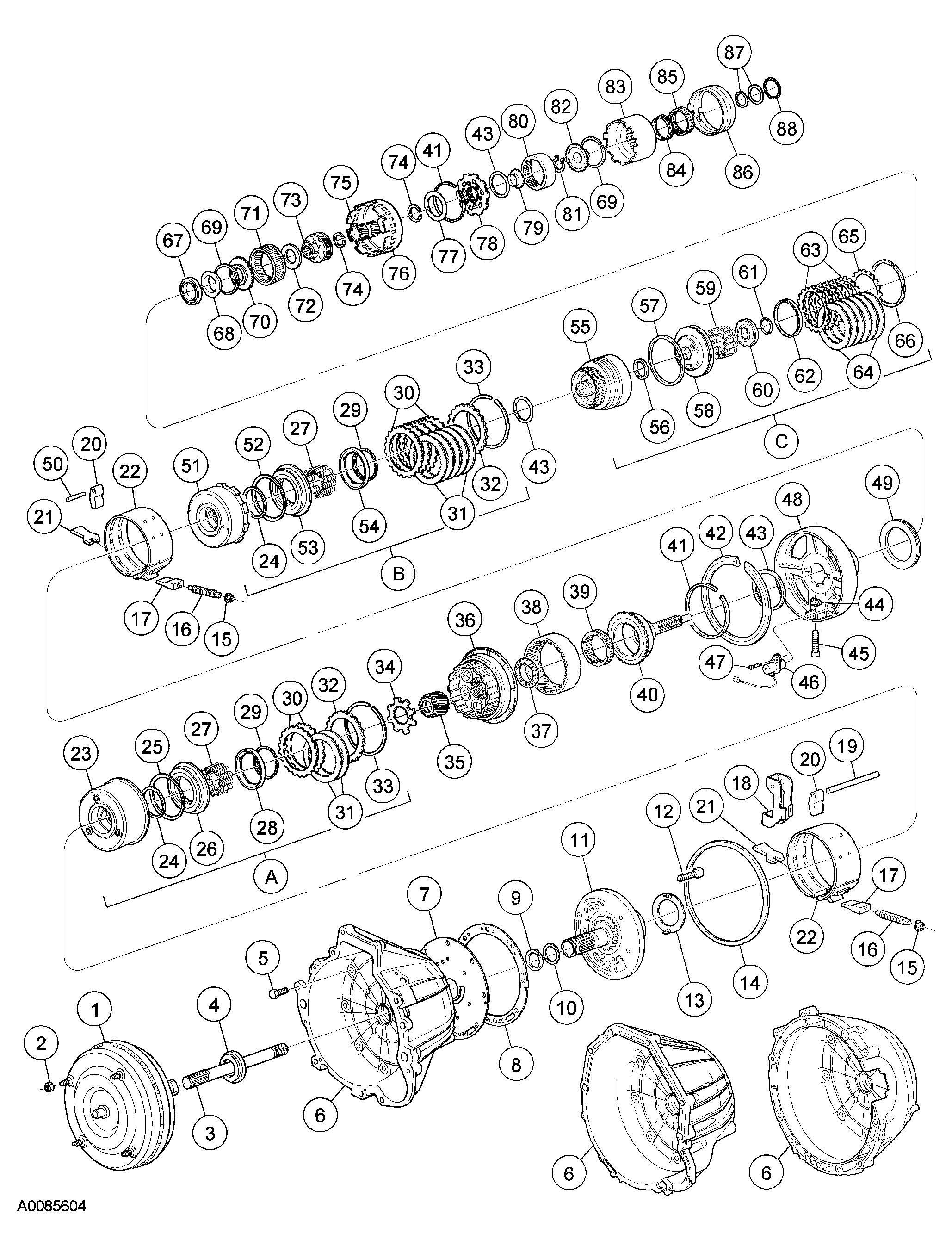

Fig 1: Disassembled View Of Automatic Transmission (1 Of 2)

Courtesy of FORD MOTOR CO.

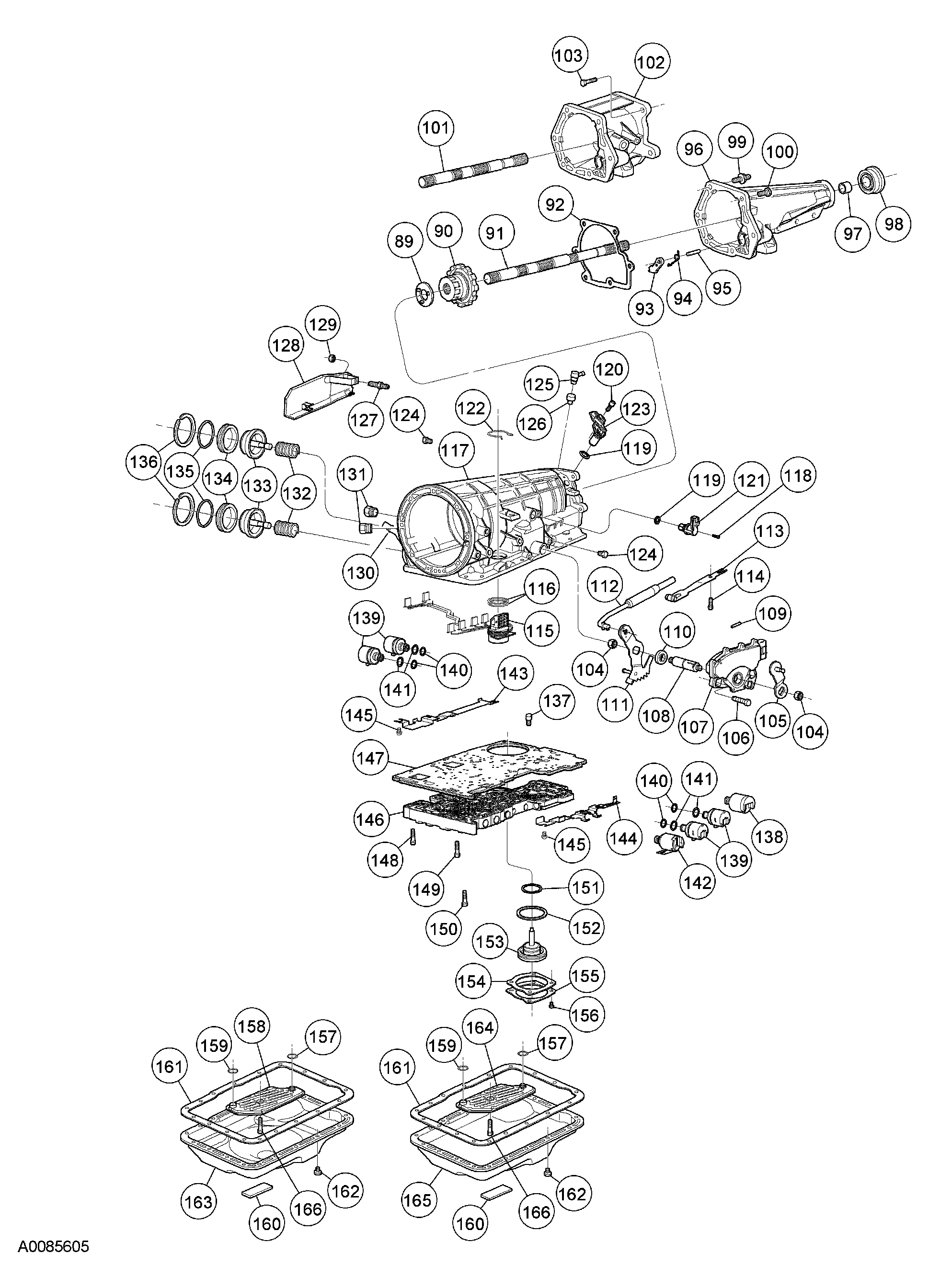

Fig 2: Disassembled View Of Automatic Transmission (2 Of 2)

Courtesy of FORD MOTOR CO.

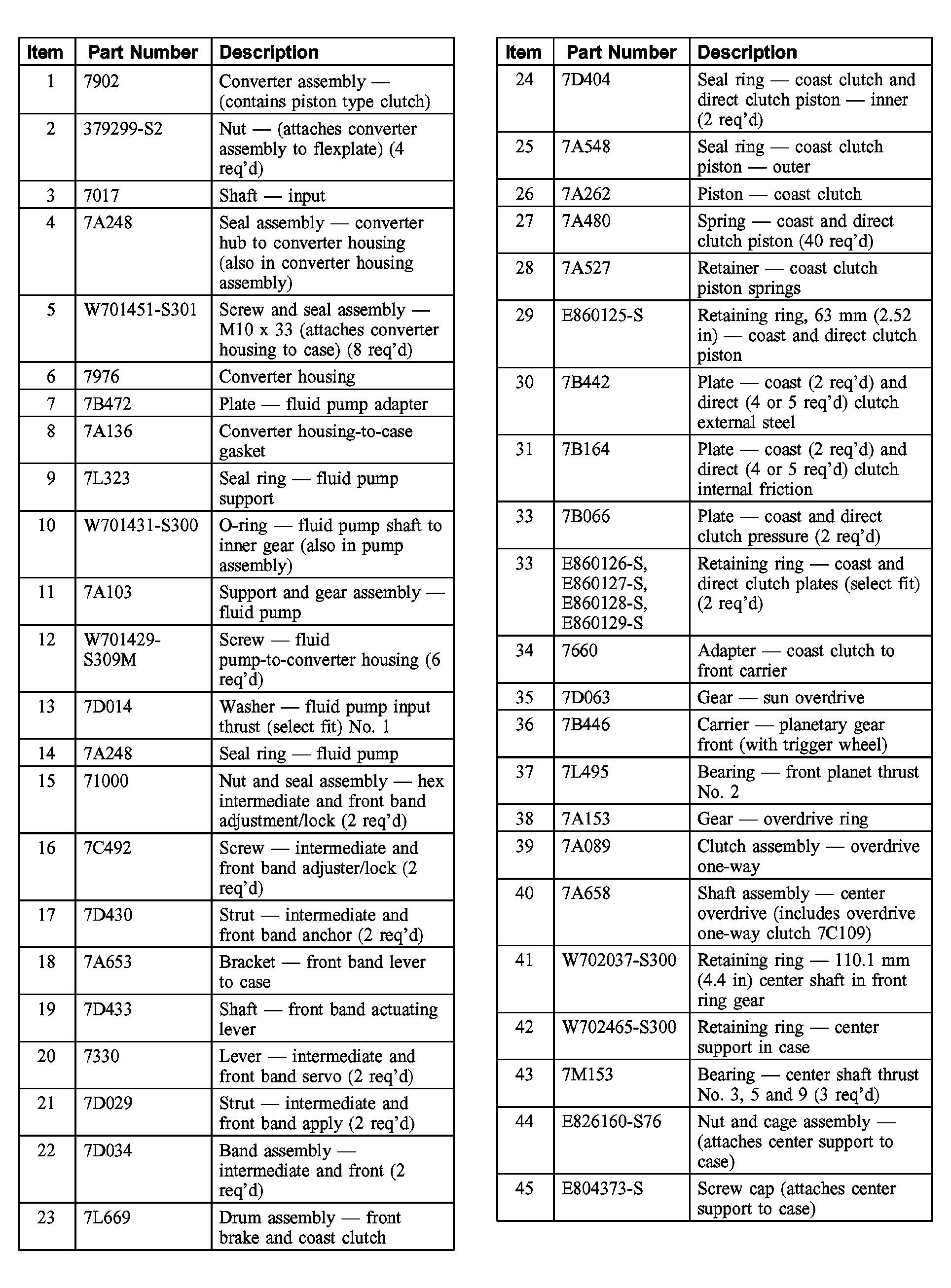

Fig 3: Identifying Automatic Transmission Components (1 Of 4)

Courtesy of FORD MOTOR CO.

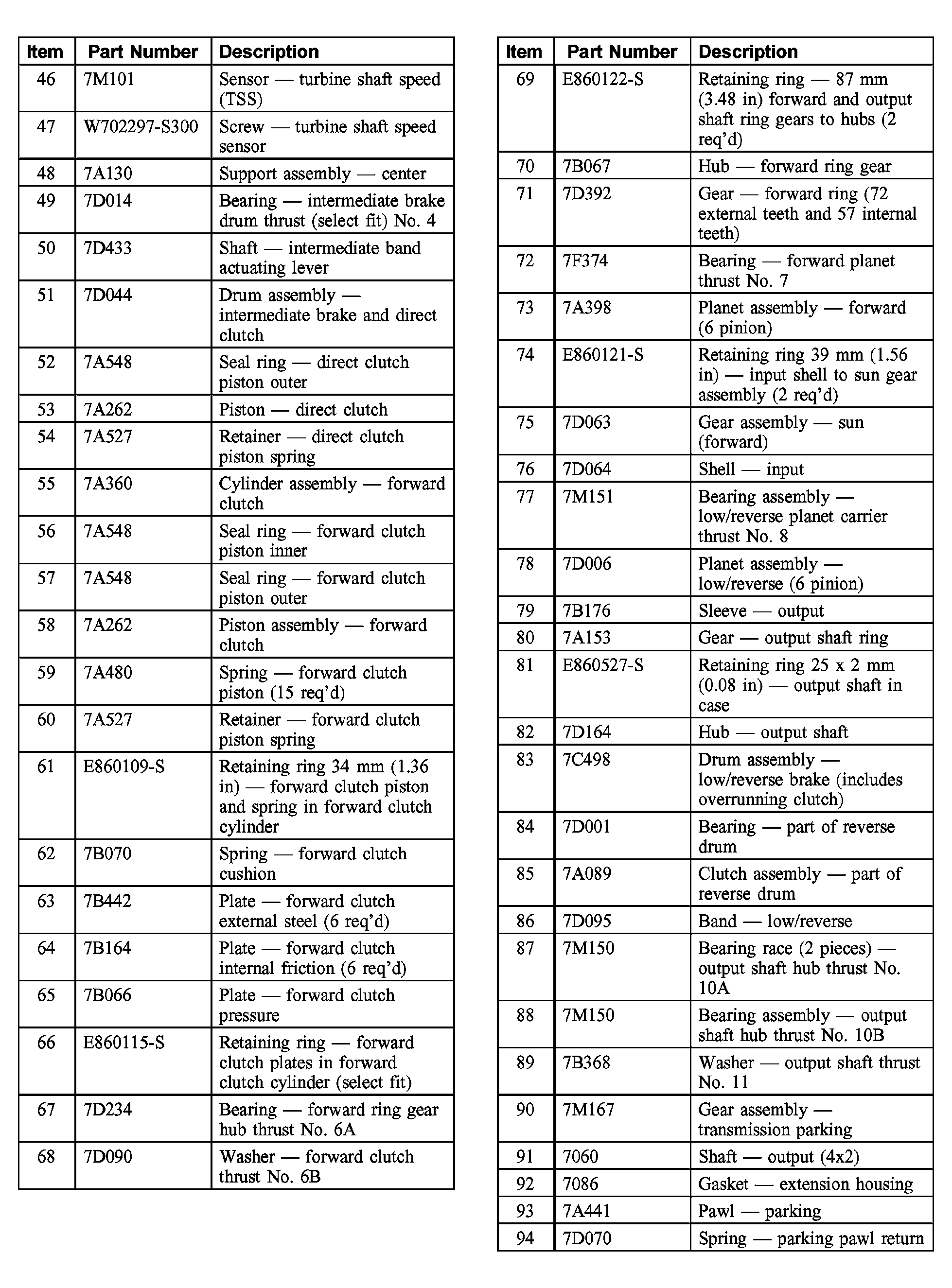

Fig 4: Identifying Automatic Transmission Components (2 Of 4)

Courtesy of FORD MOTOR CO.

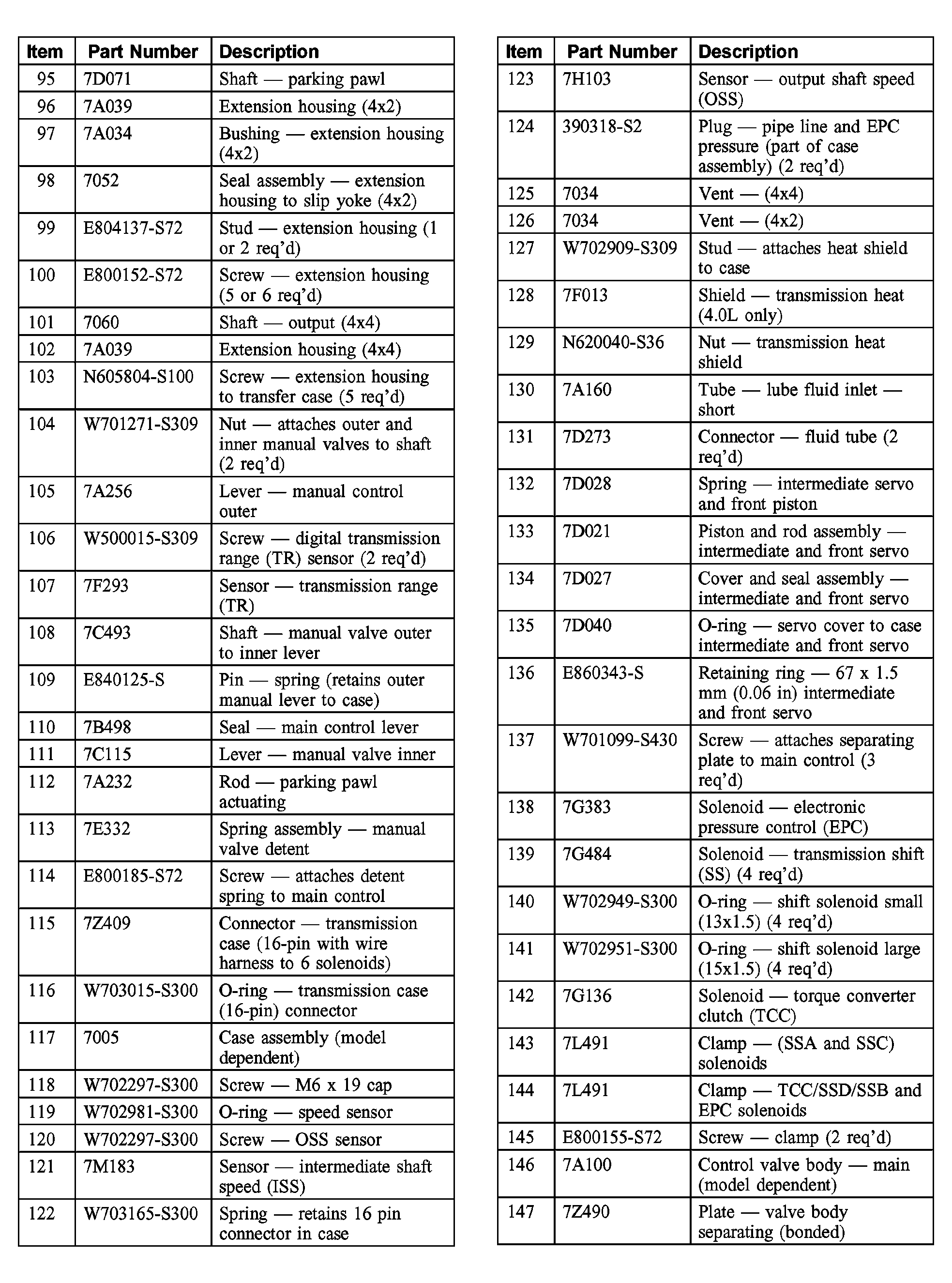

Fig 5: Identifying Automatic Transmission Components (3 Of 4)

Courtesy of FORD MOTOR CO.

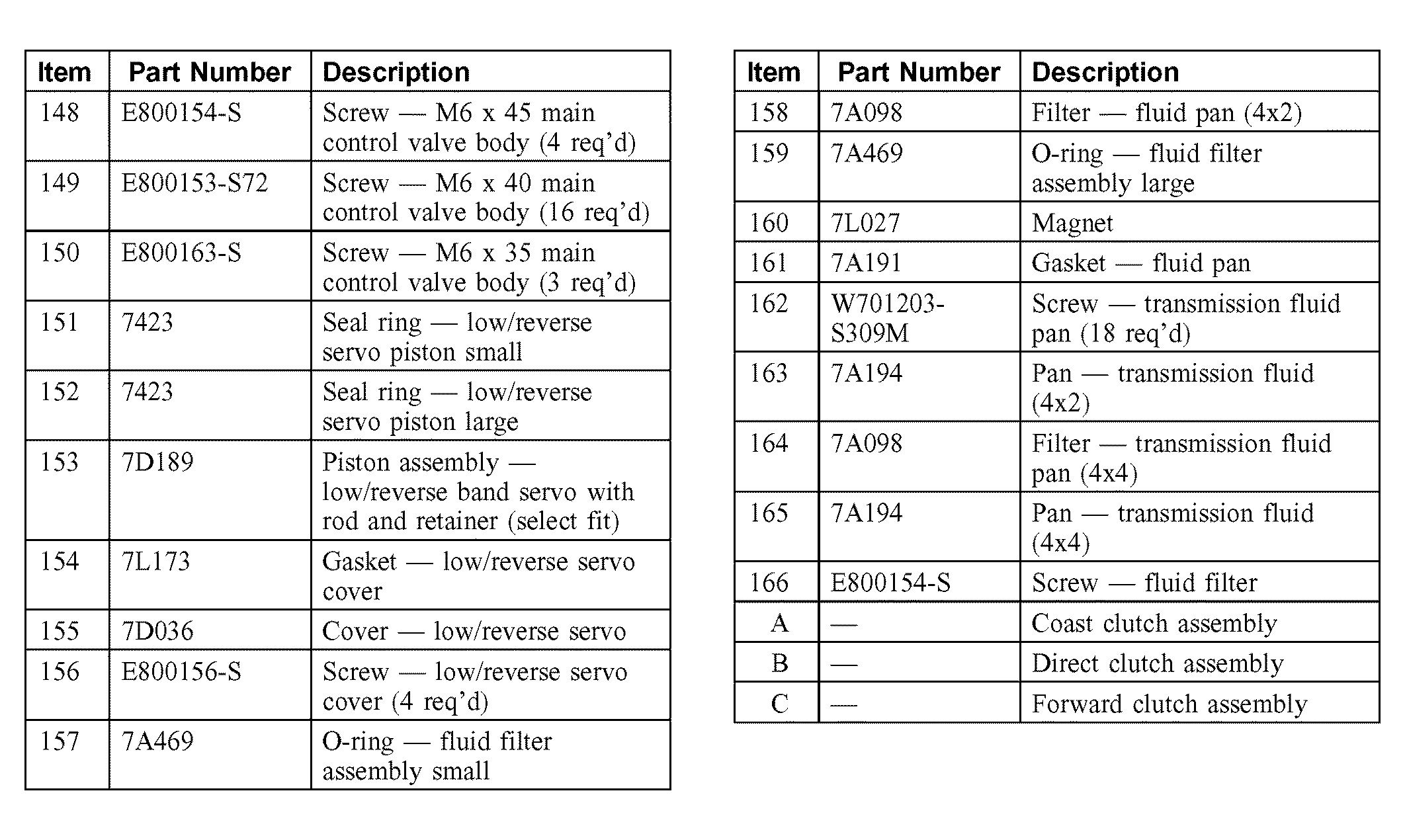

Fig 6: Identifying Automatic Transmission Components (4 Of 4)

Courtesy of FORD MOTOR CO.
