Forward Clutch: Material

MATERIAL SPECIFICATION

Item Specification
MERCON® V Automatic Transmission Fluid XT-5-QM MERCON® V

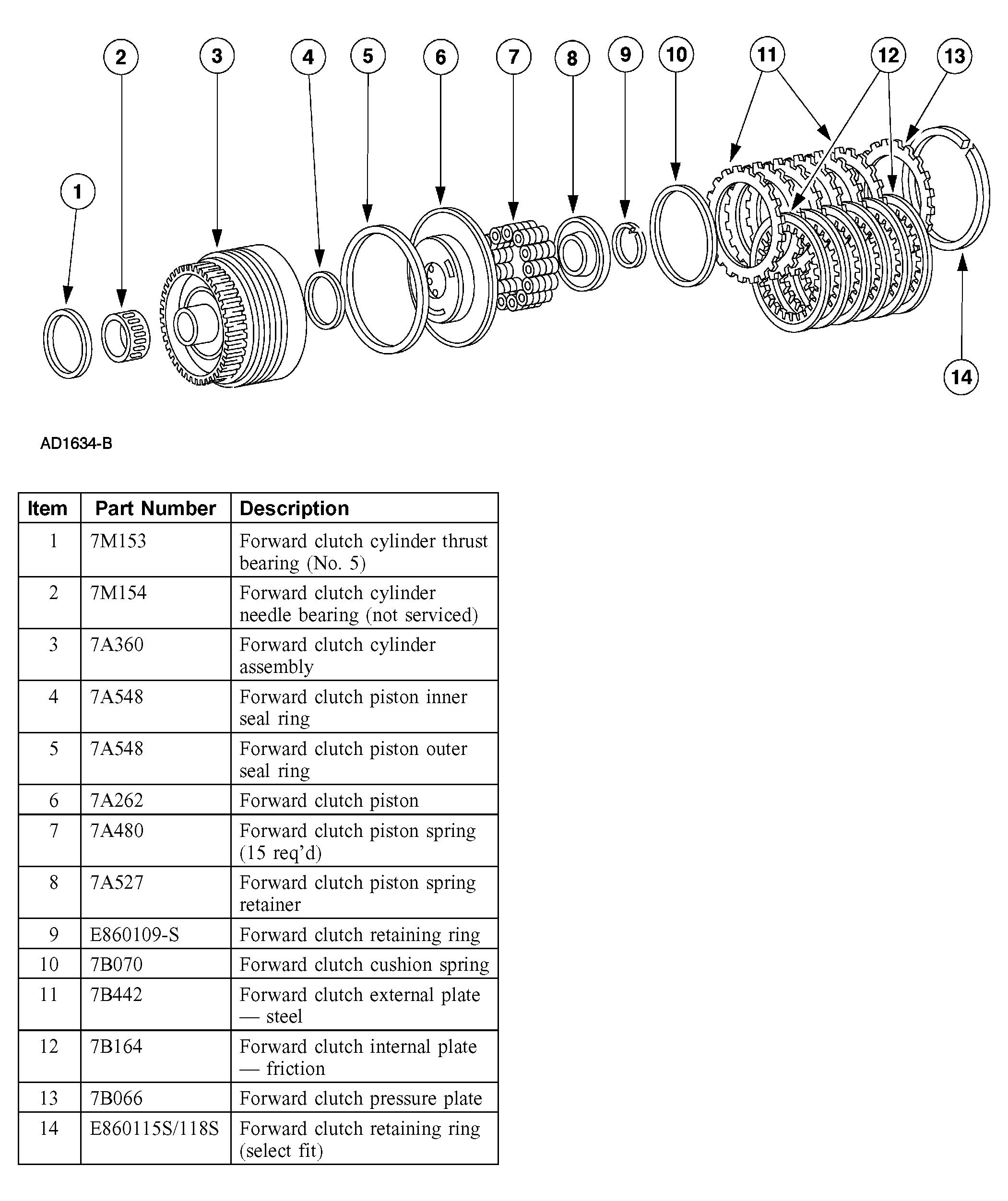

Fig 1: Identifying Forward Clutch Assembly
G03915061Courtesy of FORD MOTOR CO.
