Removal and Installation

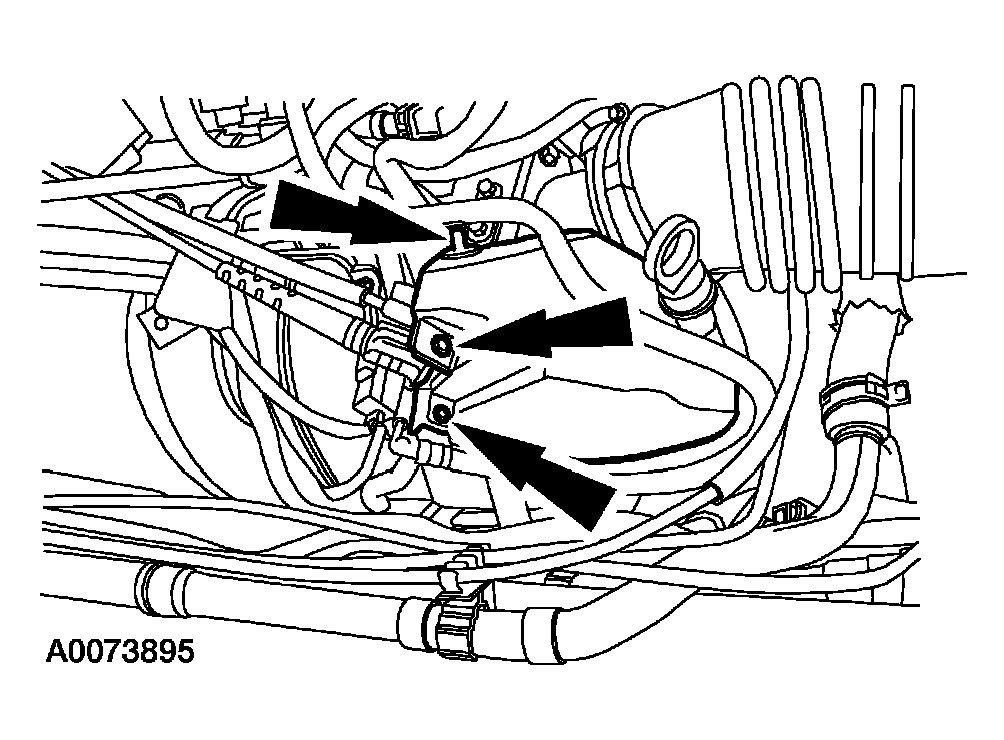

If equipped, remove the watershield.
- Remove the screw.
- Remove the pin-type retainers.
Fig 1: Removing Screw And Pin-Type Retainers
Courtesy of FORD MOTOR CO.

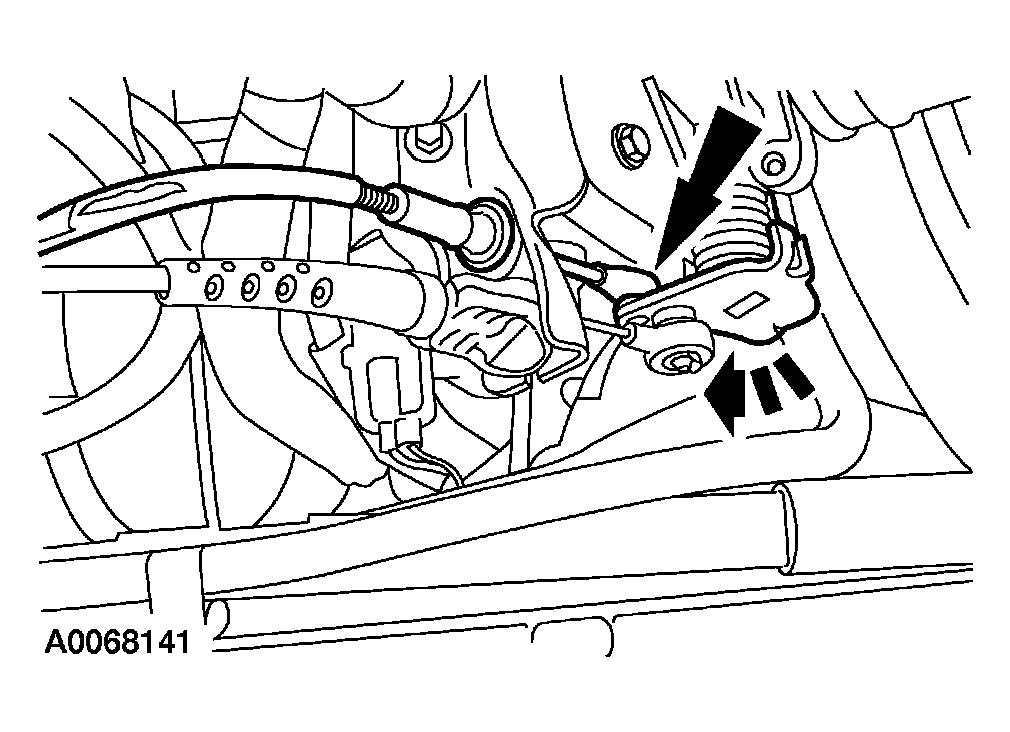

Disconnect the speed control cable from the throttle body linkage.
- Rotate the throttle body linkage and disconnect the speed control cable end by pushing forward.
Fig 2: Disconnecting Speed Control Cable From Throttle Body Linkage
Courtesy of FORD MOTOR CO.

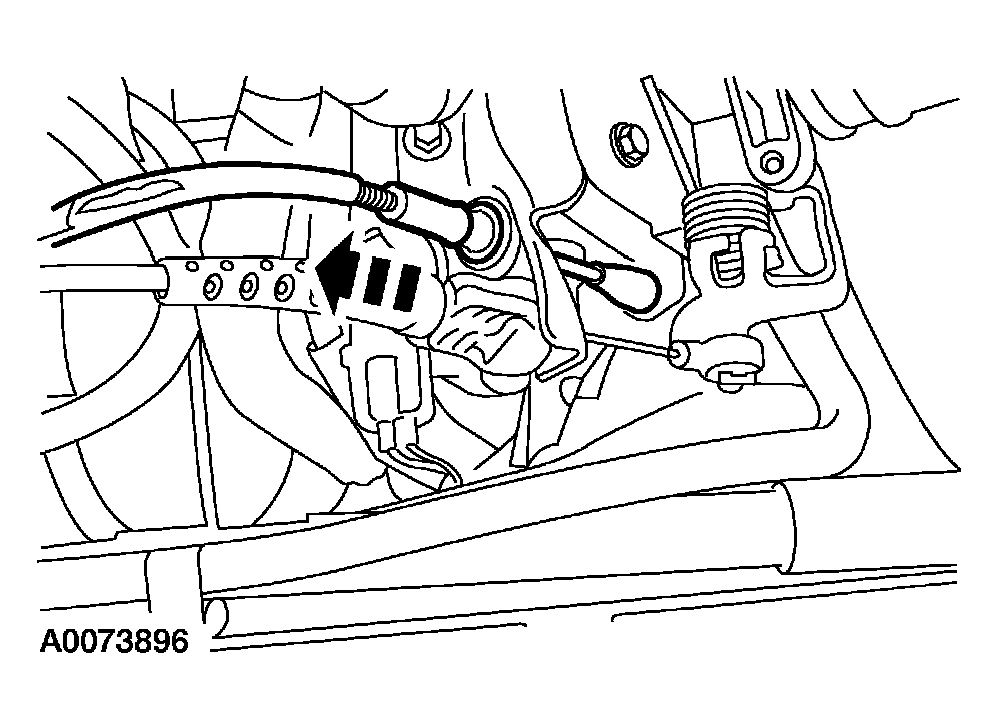

Position the speed control cable away from the throttle body bracket retaining ring.

Fig 3: Positioning Speed Control Cable Away From Throttle Body Bracket Retaining Ring
Courtesy of FORD MOTOR CO.

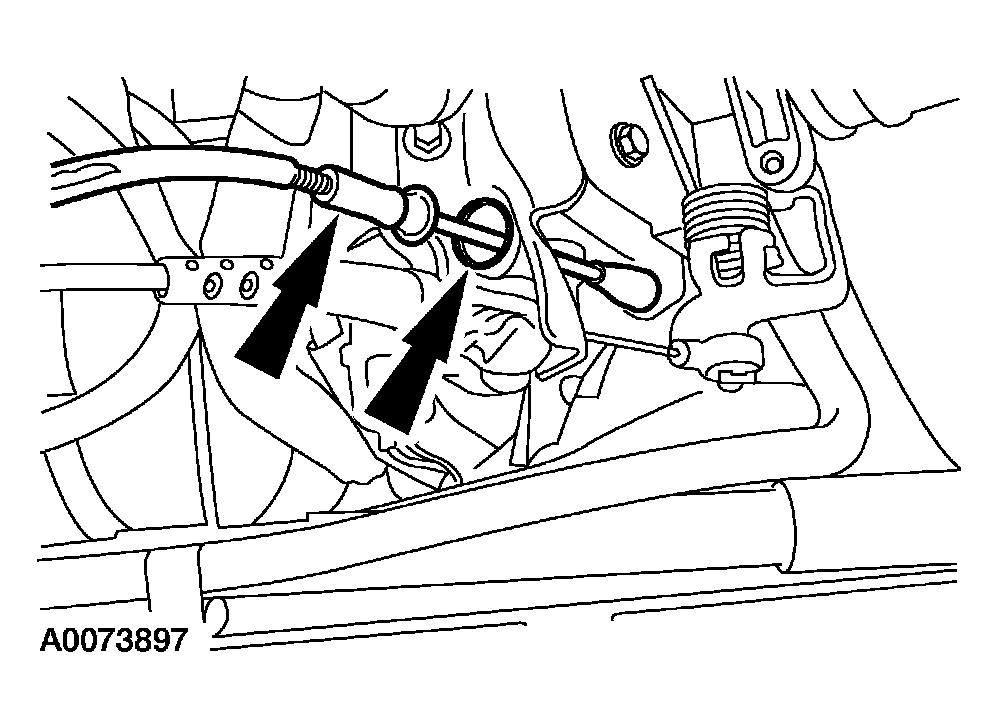

Remove the speed control cable from the throttle body bracket.
- Using a suitable tool, remove the retaining ring from the throttle body bracket.
Fig 4: Removing Speed Control Cable From Throttle Body Bracket
Courtesy of FORD MOTOR CO.

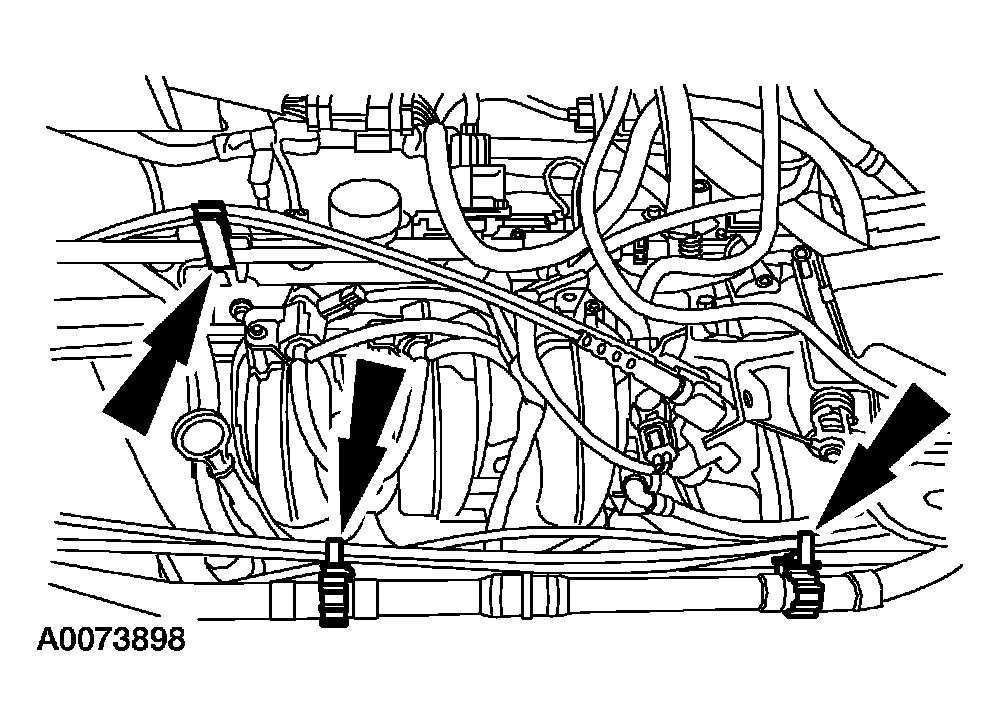

Remove the speed control cable from the retaining clips.

Fig 5: Removing Speed Control Cable From Retaining Clips
Courtesy of FORD MOTOR CO.

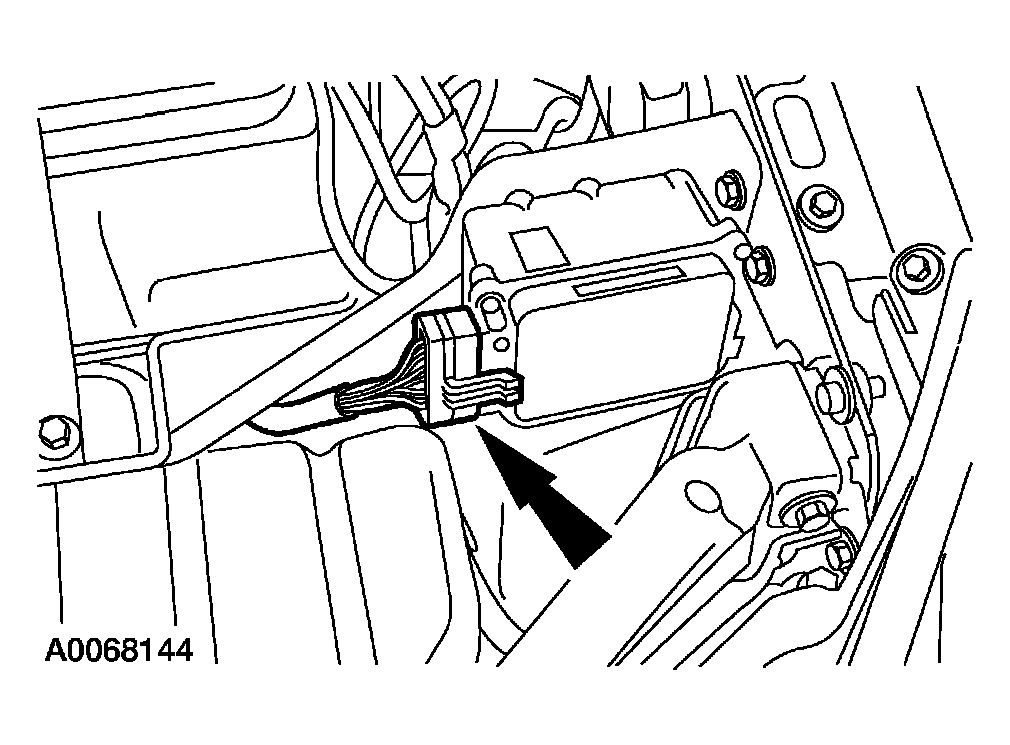

Disconnect the speed control actuator electrical connector.

Fig 6: Disconnecting Speed Control Actuator Electrical Connector
Courtesy of FORD MOTOR CO.

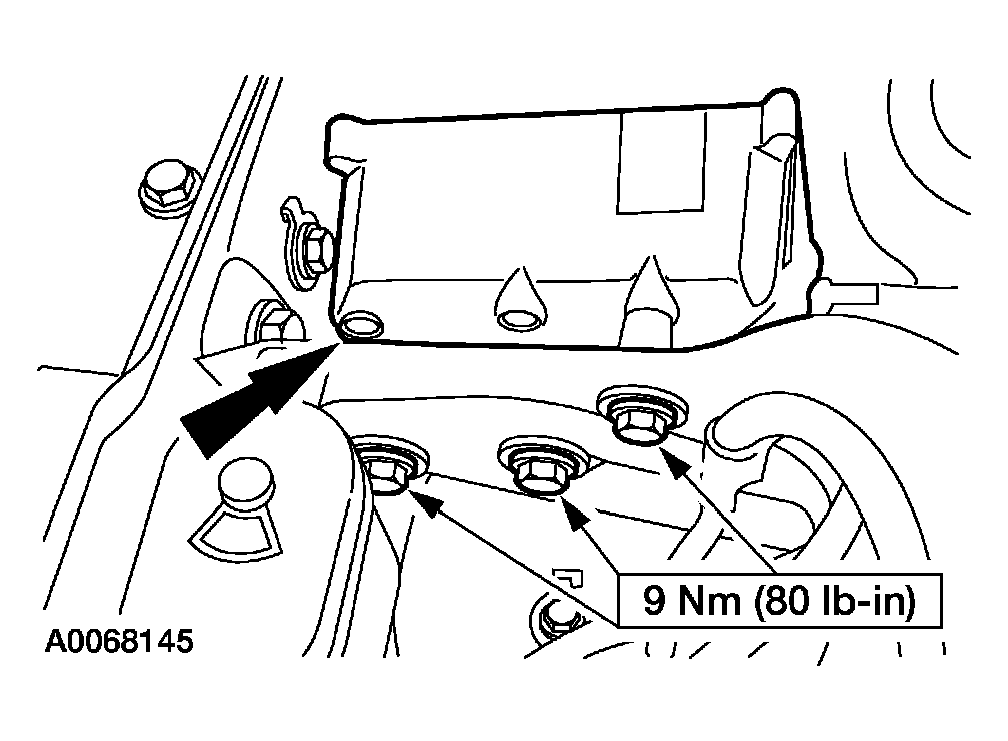

Remove the speed control actuator.
- Remove the bolts.
Fig 7: Removing Speed Control Actuator
Courtesy of FORD MOTOR CO.
Press the locking tab and rotate the speed control cable cover counterclockwise to remove.

Fig 8: Pressing Locking Tab And Rotating Speed Control Cable Cover
Courtesy of FORD MOTOR CO.
Remove the speed control cable from the speed control actuator pulley.
1. Press the spring retainer.
2. Slide the core wire end out of the speed control actuator pulley and disconnect the speed control actuator cable.
Fig 9: Removing Speed Control Cable From Speed Control Actuator Pulley
Courtesy of FORD MOTOR CO.

CAUTION: A new speed control cable must be installed.

NOTE: Make sure downward pressure is applied to the speed control actuator cable cover prior to rotating it clockwise.

To install, reverse the removal procedure.
