Input Shaft: Notes

SPECIAL TOOL(S)

Remover, Bearing/Gear
205-D064 (D84L-1123-A)

MATERIAL CHART

Item	Specification
Full Synthetic Manual Transmission Fluid XT-M5-QS	WSD-M2C200-C

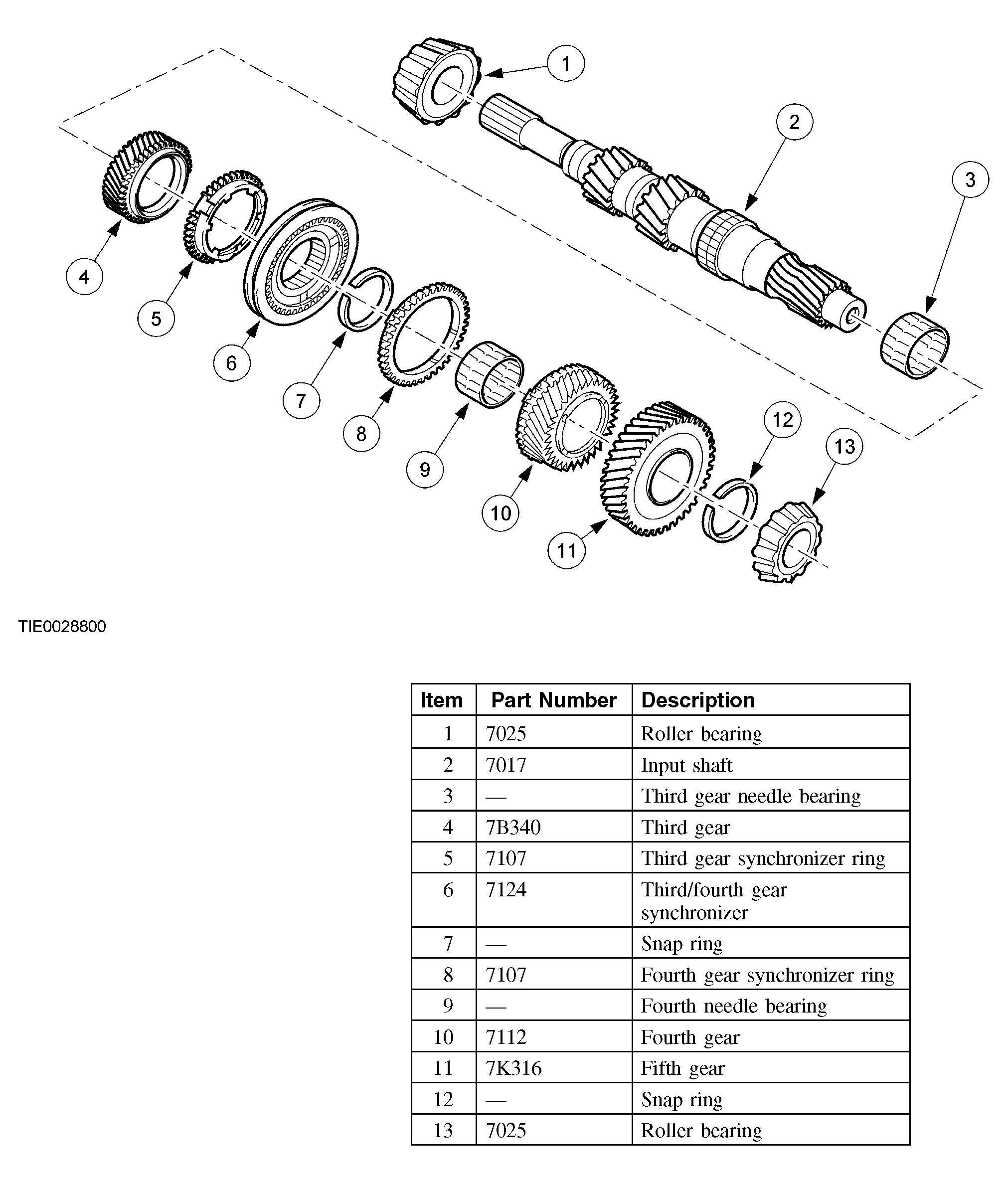

Fig 1: Exploded View Of Input Shaft

Courtesy of FORD MOTOR CO.
