Output Shaft: Notes

SPECIAL TOOL(S)

	Remover, Bearing/Gear 205-D064 (D84L-1123-A)
	Installer, Drive Pinion Bearing 205-068
	Remover, Bearing/Gear 205-310

MATERIAL CHART

Item	Specification
Full Synthetic Manual Transmission Fluid XT-M5-QS	WSD-M2C200-C

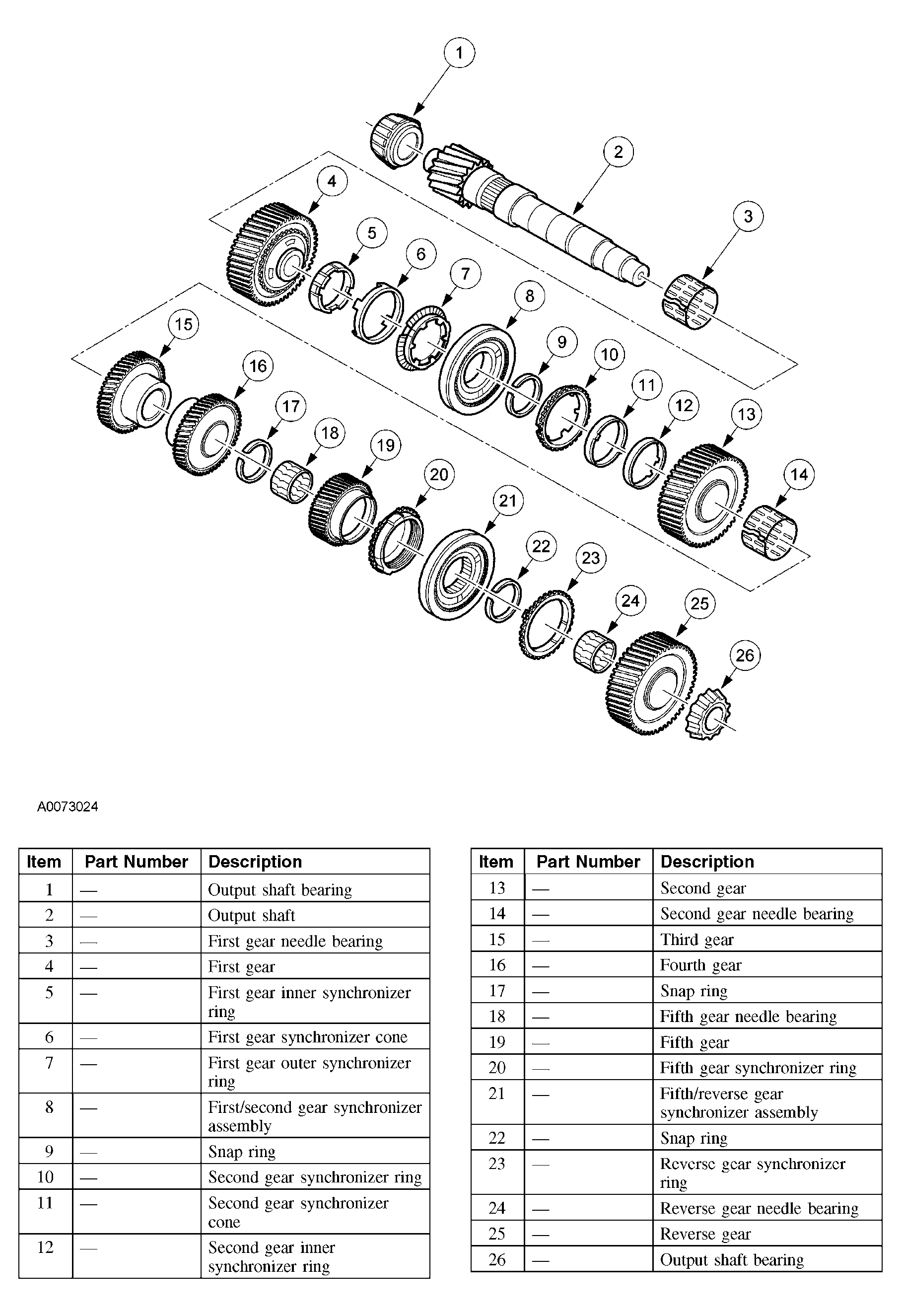

Fig 1: Exploded View Of Output Shaft

Courtesy of FORD MOTOR CO.
