Removal and Installation

  1. Disconnect the electrical connector.

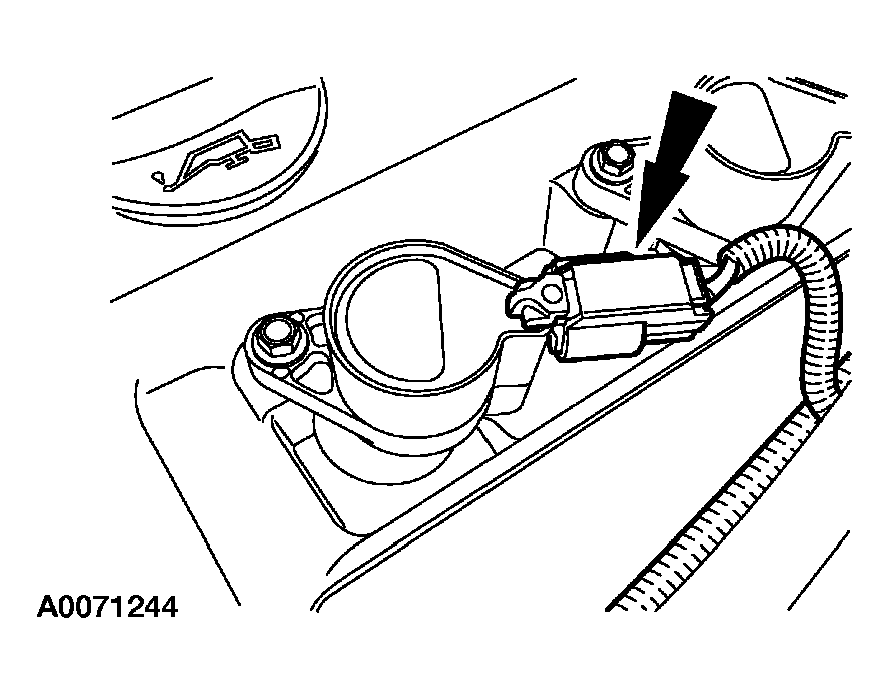

    Fig 1: Disconnecting Ignition Coil Electrical Connector
    G03951082Courtesy of FORD MOTOR CO.
  2. Remove the bolt and the ignition coil.

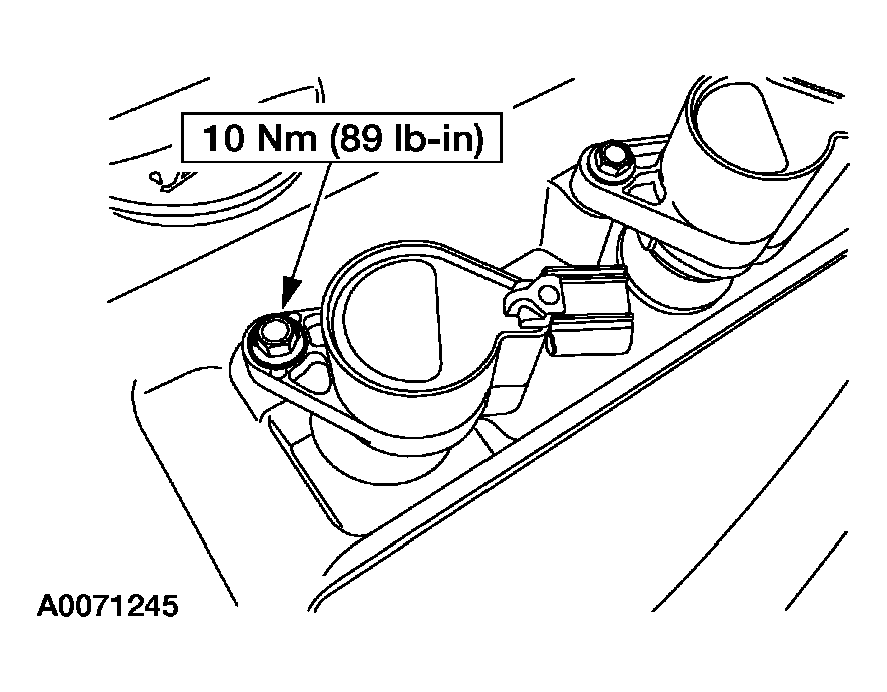

    Fig 2: Removing Ignition Coil Bolt
    G03951083Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
    • Apply silicone dielectric compound to the inside of the ignition coil boot.
