Exhaust System: Notes

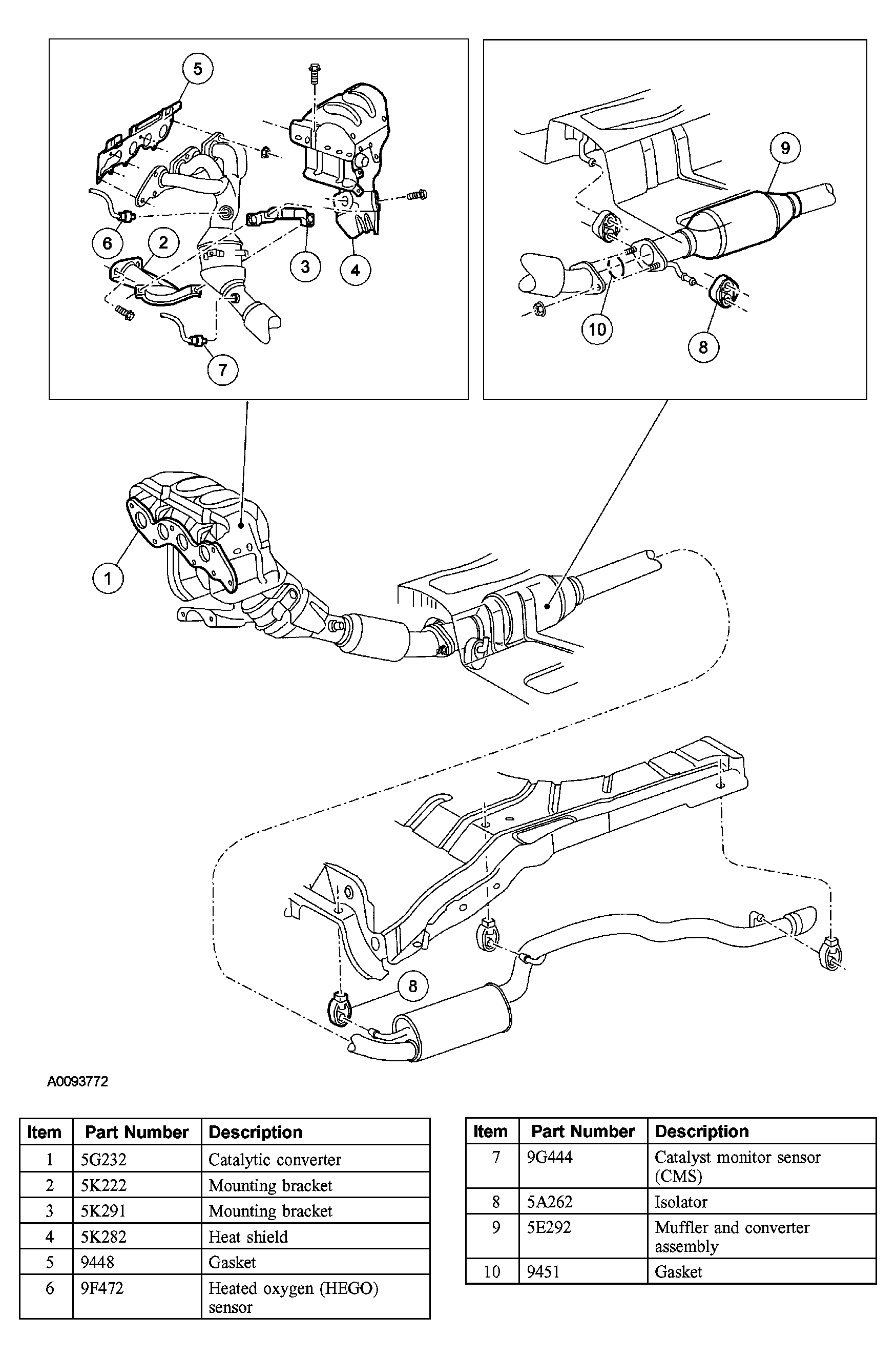

Fig 1: Identifying Exhaust System Components - Vehicles With 2.0L PZEV Engine

Courtesy of FORD MOTOR CO.

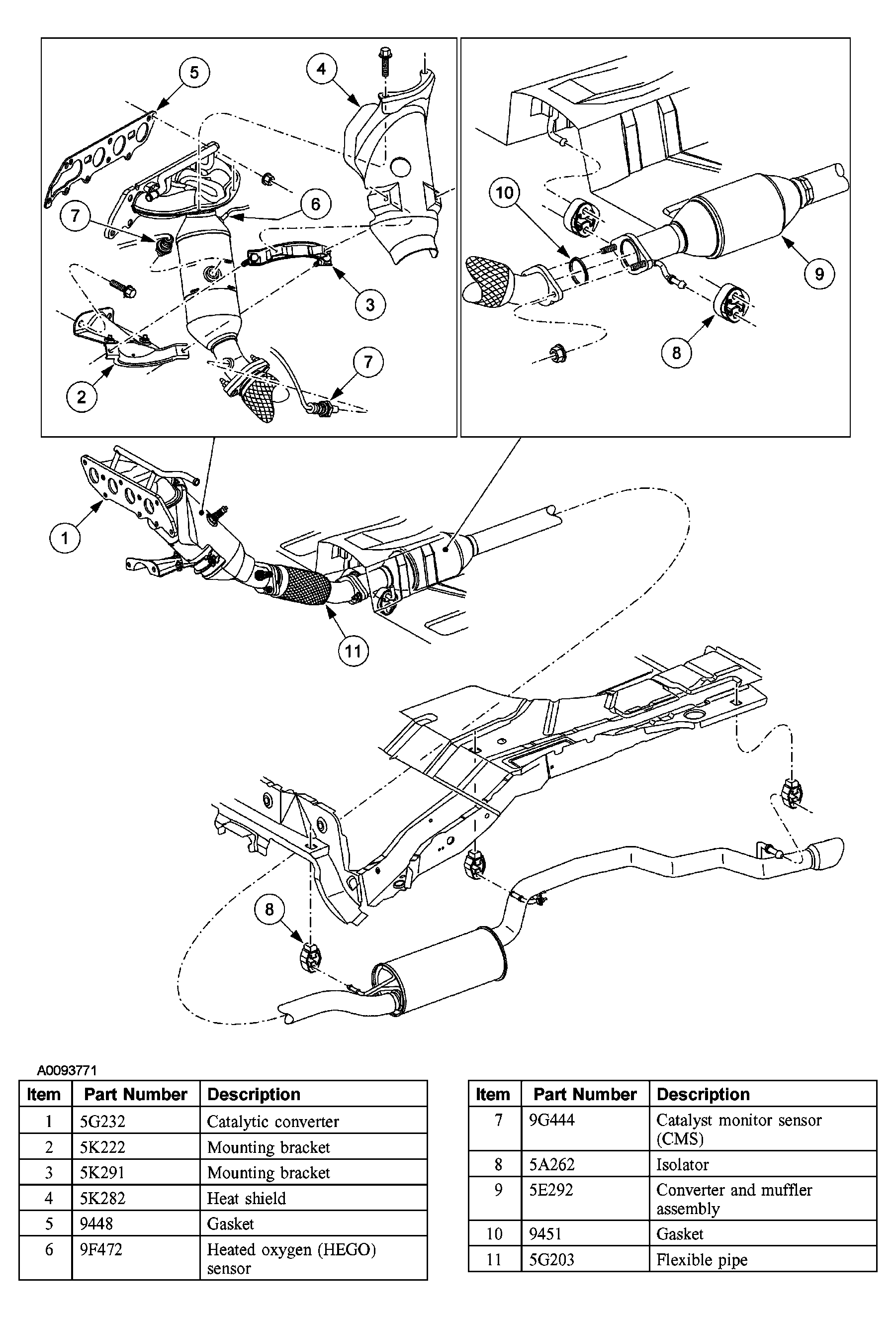

Fig 2: Identifying Exhaust System Components - Vehicles With 2.0L Zetec And 2.3L Engines

Courtesy of FORD MOTOR CO.

The exhaust systems are of a two-piece construction for production and five-piece construction for service.
