Speed Control Deactivator Switch Adjustment

    NOTE: Brake pedal position (BPP) switch and clutch pedal position (CPP) switch removed for clarity.
    Fig 1: Removing Speed Control Deactivator Switch By Turning Switch Counterclockwise
    G03951915Courtesy of FORD MOTOR CO.
  1. Remove the speed control deactivator switch by turning the switch counterclockwise.
  2. Pull out the speed control deactivator switch plunger until it is fully extended.
    1. Measure the plunger length. It should measure 24 mm (0.94 in).
    Fig 2: Measuring Plunger Length
    G03951916Courtesy of FORD MOTOR CO.
  3. Apply the brake pedal.
    4. CAUTION: When installing the deactivator switch, the switch is rotated clockwise. Failure to follow this instruction will result in the switch plunger binding inside the switch.
    NOTE: The speed control deactivator switch is automatically adjusted during installation.
    NOTE: A slight ratcheting noise and feel during installation of the speed control deactivator switch is normal.

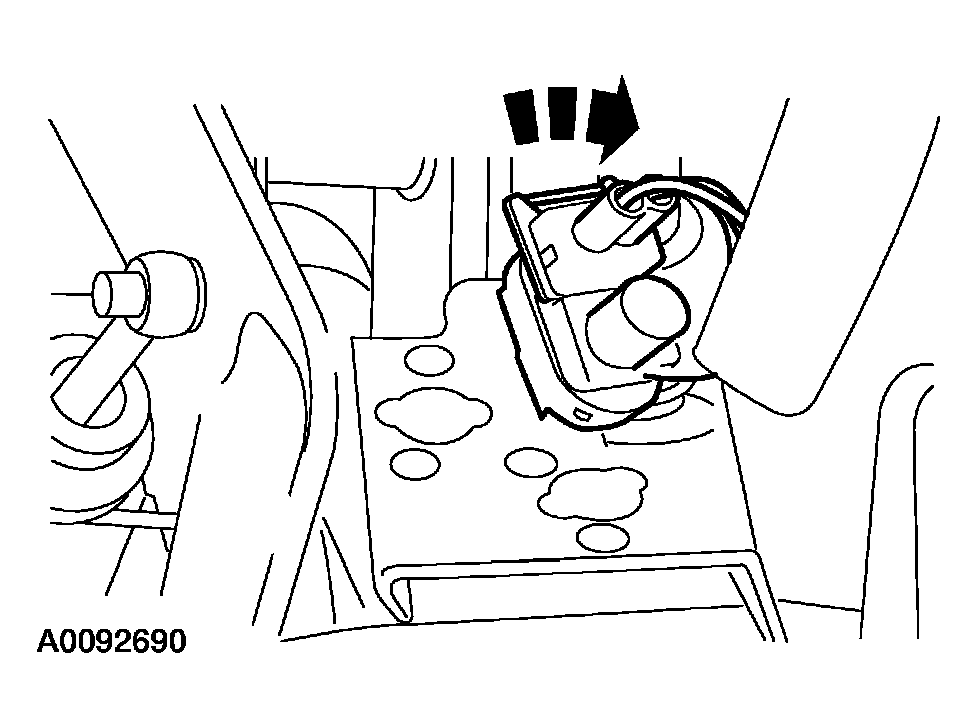

    Fig 3: Installing Speed Control Deactivator Switch By Turning Switch Clockwise
    G03951917Courtesy of FORD MOTOR CO.
  4. Install the speed control deactivator switch by turning the switch clockwise.
  5. Slowly release the brake pedal.
