Removal and Installation

Remove the wheel. For additional information, refer to WHEELS AND TIRES .
Remove the wheel speed sensor.
- Remove the wheel speed sensor bolt.

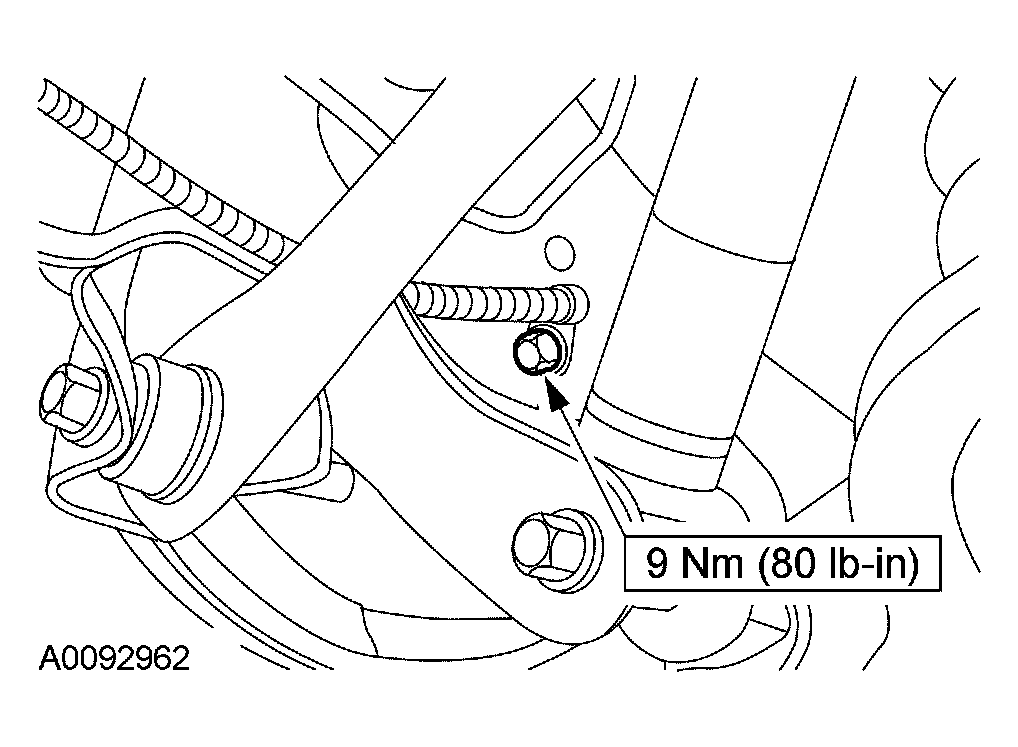

Fig 1: Removing Wheel Speed Sensor Bolt
Courtesy of FORD MOTOR CO.

NOTE: Not all the clips are part of the sensor assembly and may not be reusable.

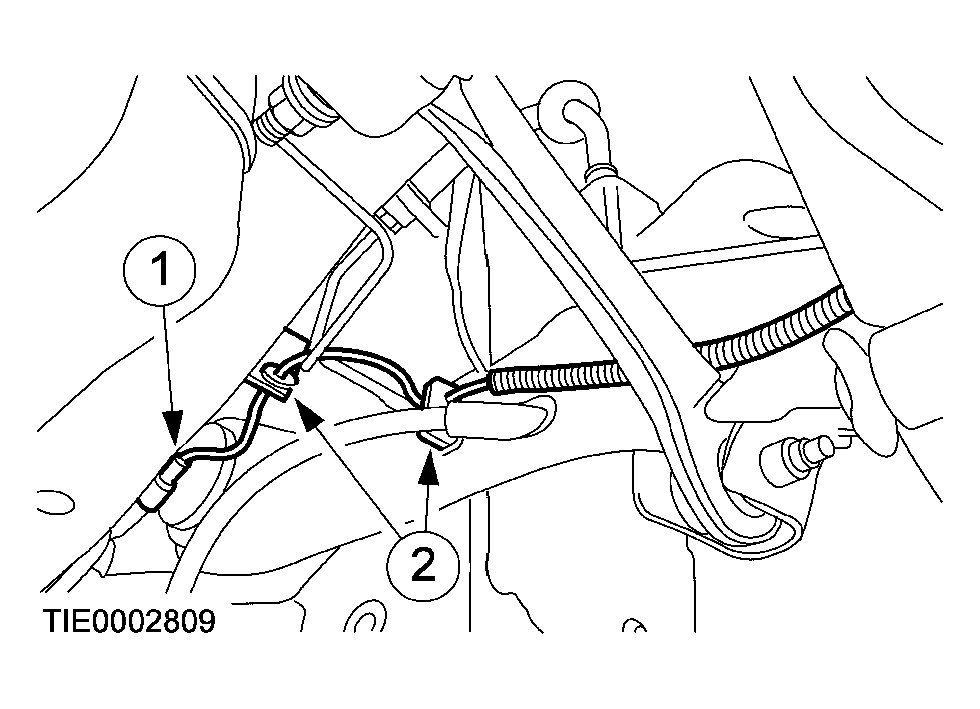

Fig 2: Disconnecting Wheel Speed Sensor Wiring Harness

Courtesy of FORD MOTOR CO.

Disconnect the wheel speed sensor wiring harness.
1. Disconnect the electrical connector.
2. Remove sensor by detaching small clip and pulling sensor grommets out of clips.
To install, reverse the removal procedure.
