Engine Cooling: Notes

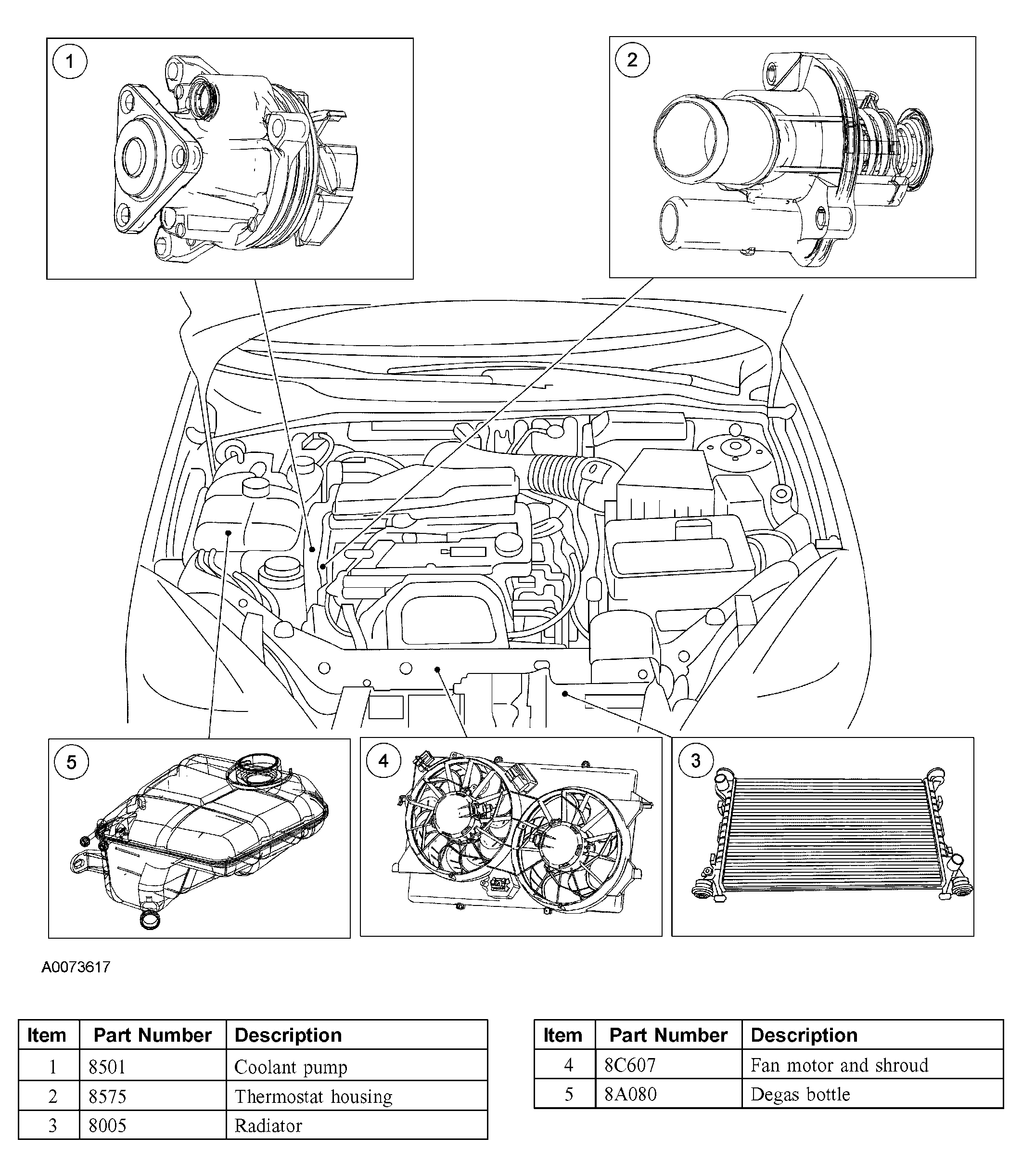

Fig 1: Identifying Engine Cooling Components Location (2.0L And 2.3L Engines)

Courtesy of FORD MOTOR CO.

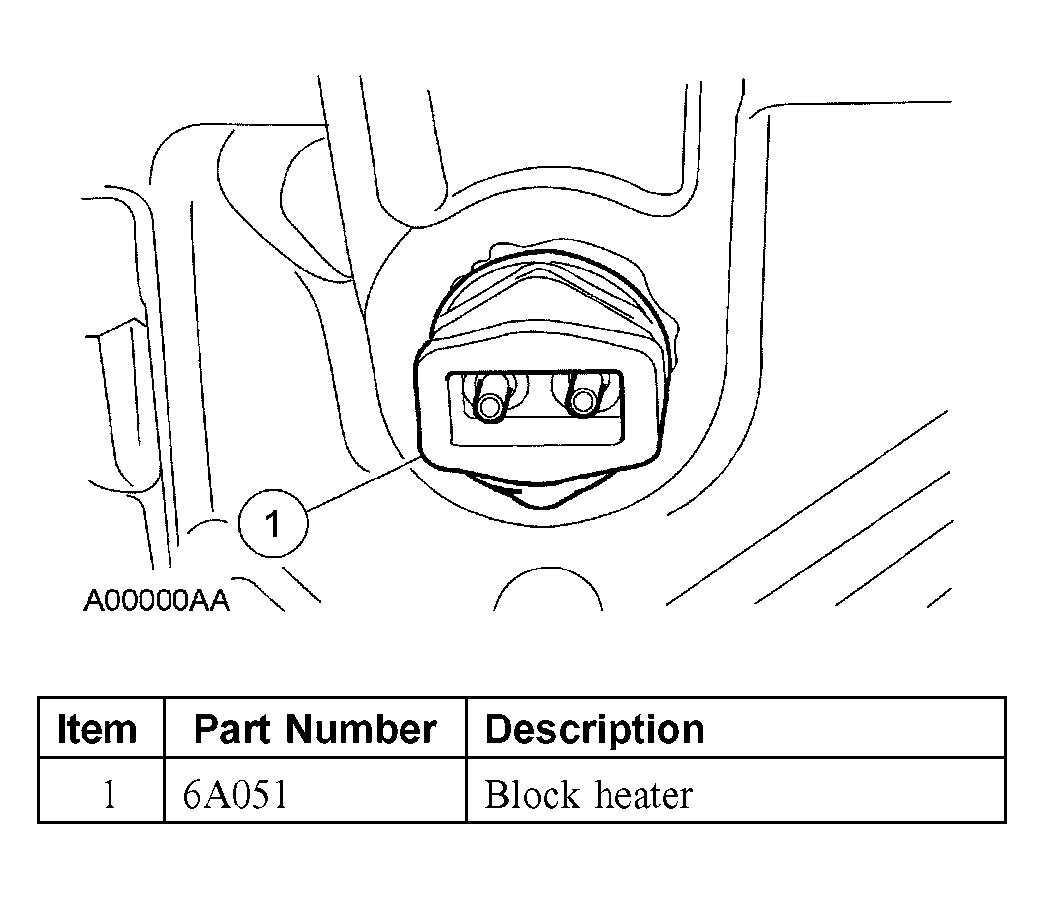

Fig 2: Identifying Block Heater (2.0L And 2.3L Engines - If Equipped)

Courtesy of FORD MOTOR CO.

The thermostat allows rapid engine warm-up by restricting engine coolant flow at lower operating temperatures. It also assists in maintaining engine operating temperatures between predetermined limits.

WARNING: Disconnect the battery when working in the vicinity of the engine cooling fan. The fan is controlled by the engine management system and an increase in coolant temperature can cause the fan to operate, even with the ignition in the OFF position. Failure to follow this instruction can result in personal injury.

The cooling fan(s) is mounted within a shroud behind the radiator.
