Removal and Installation

WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near fuel-related components. Highly flammable vapors are always present and can ignite. Failure to follow these instructions can result in personal injury.

WARNING: Fuel in the fuel system remains under high pressure even when the engine is not running. Before working on or disconnecting any of the fuel lines or fuel system components, the fuel system pressure must be relieved. Failure to follow these instructions can result in personal injury.

Release the fuel system pressure. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION .
Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Disconnect the fuel tube quick release coupling from the fuel rail and position the tube aside.

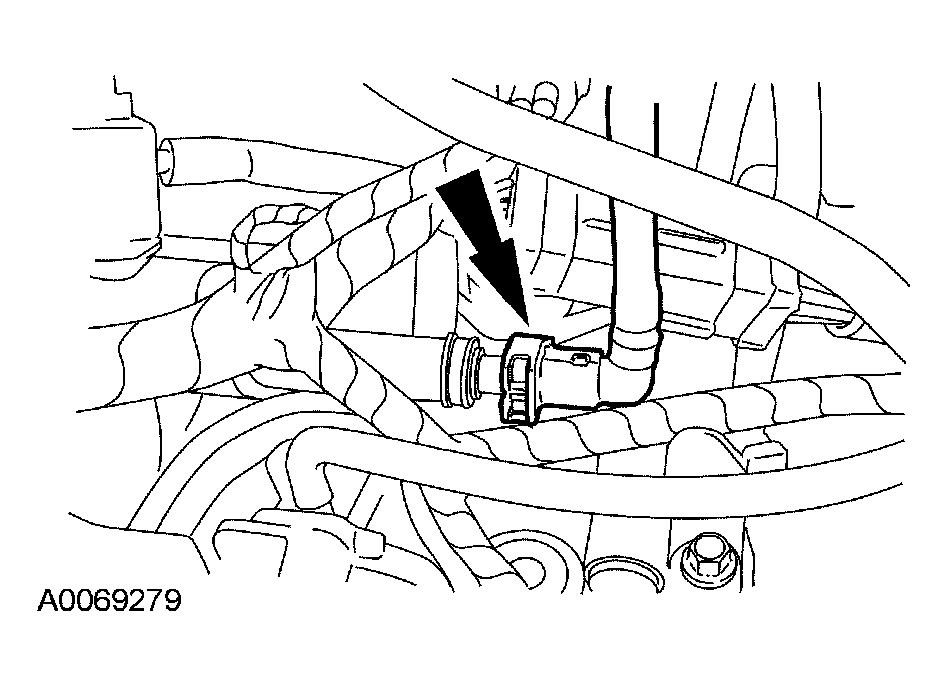

Fig 1: Disconnecting Fuel Tube Quick Release Coupling From Fuel Rail
Courtesy of FORD MOTOR CO.
Disconnect the fuel injector electrical connectors.

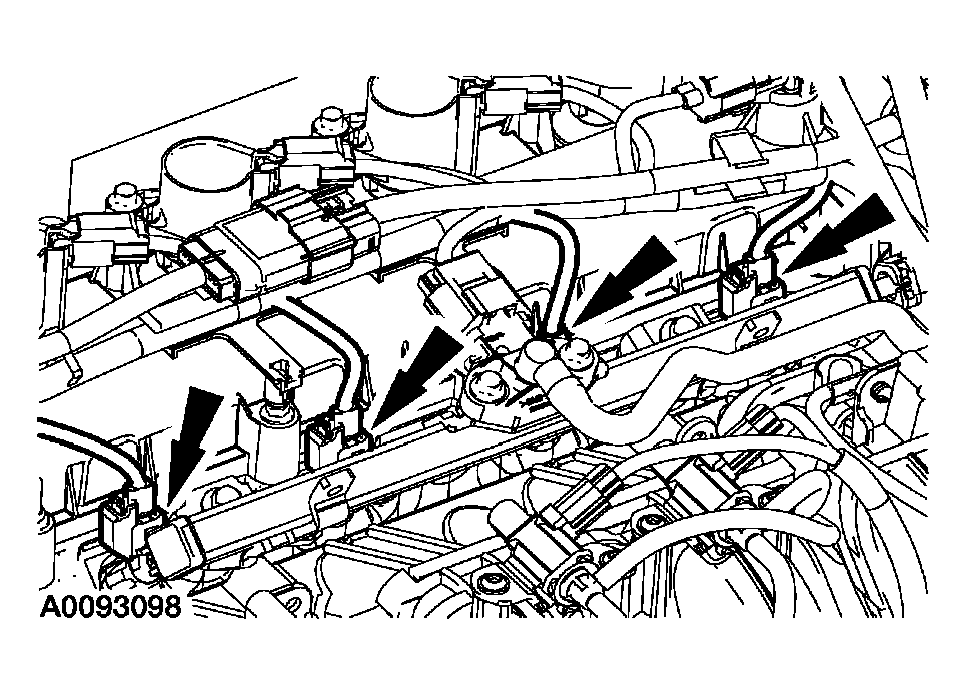

Fig 2: Disconnecting Fuel Injector Electrical Connectors
Courtesy of FORD MOTOR CO.
Disconnect the fuel rail pressure and temperature sensor electrical connector and vacuum tube.

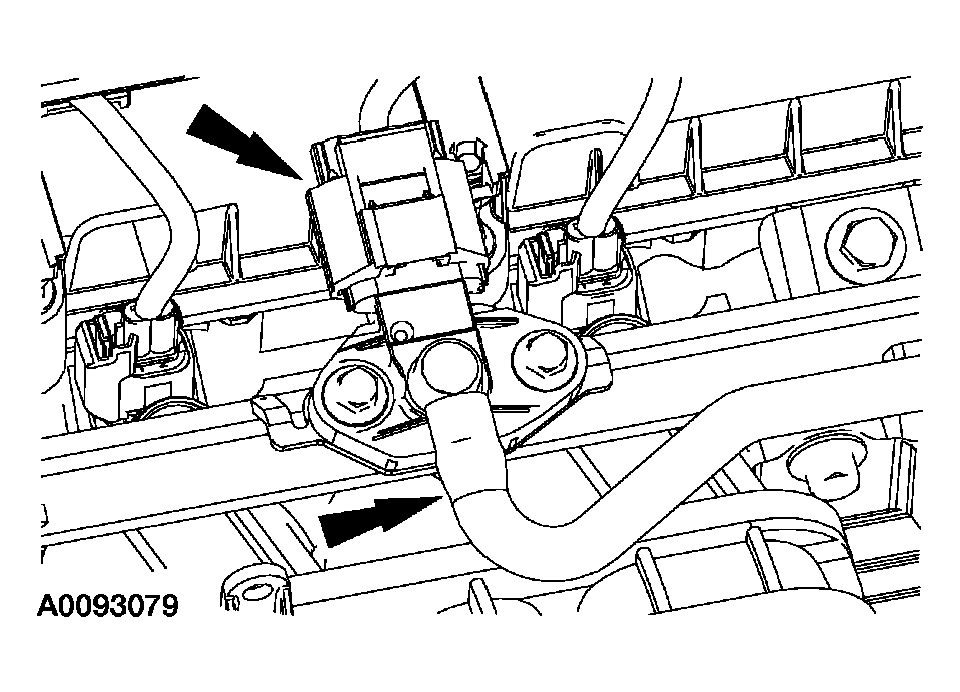

Fig 3: Disconnecting Fuel Rail Pressure And Temperature Sensor Electrical Connector And Vacuum Tube
Courtesy of FORD MOTOR CO.
Remove the bolts, fuel rail and injectors.

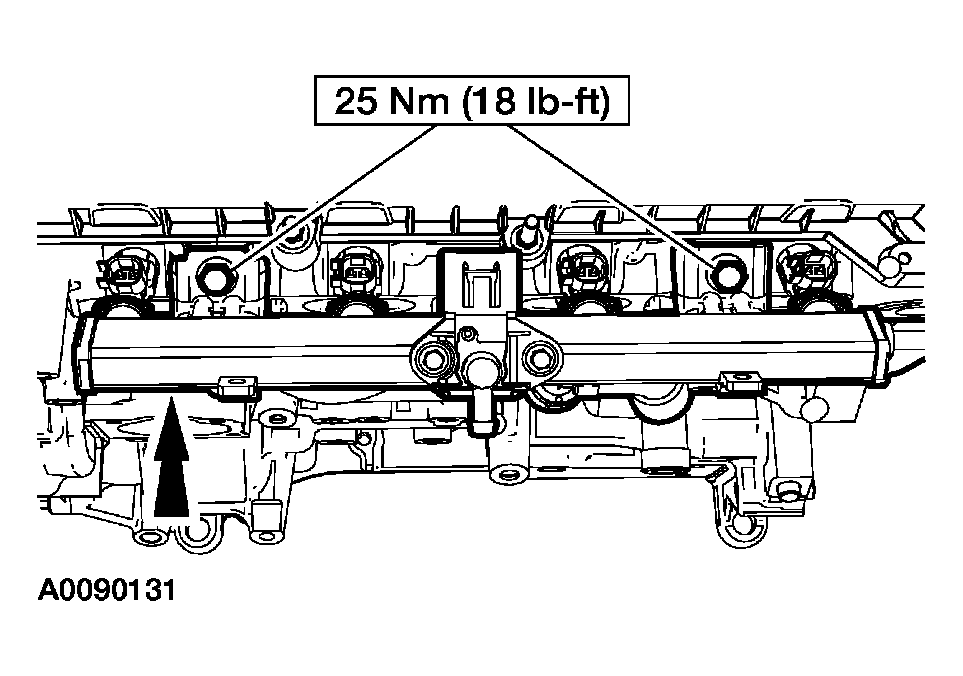

Fig 4: Removing Bolts, Fuel Rail And Injectors
Courtesy of FORD MOTOR CO.
Remove the spacers.

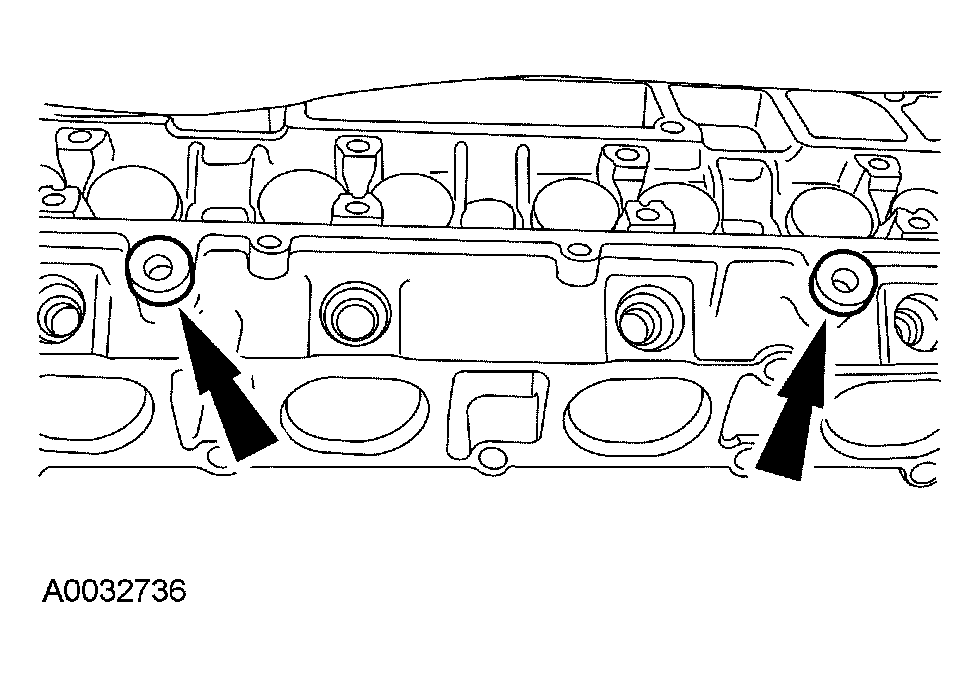

Fig 5: Identifying Fuel Rail Spacers
Courtesy of FORD MOTOR CO.

CAUTION: Use O-ring seals that are made of special fuel resistant material. Use of ordinary O-rings can cause the fuel system to leak. Do not reuse the O-ring seals.

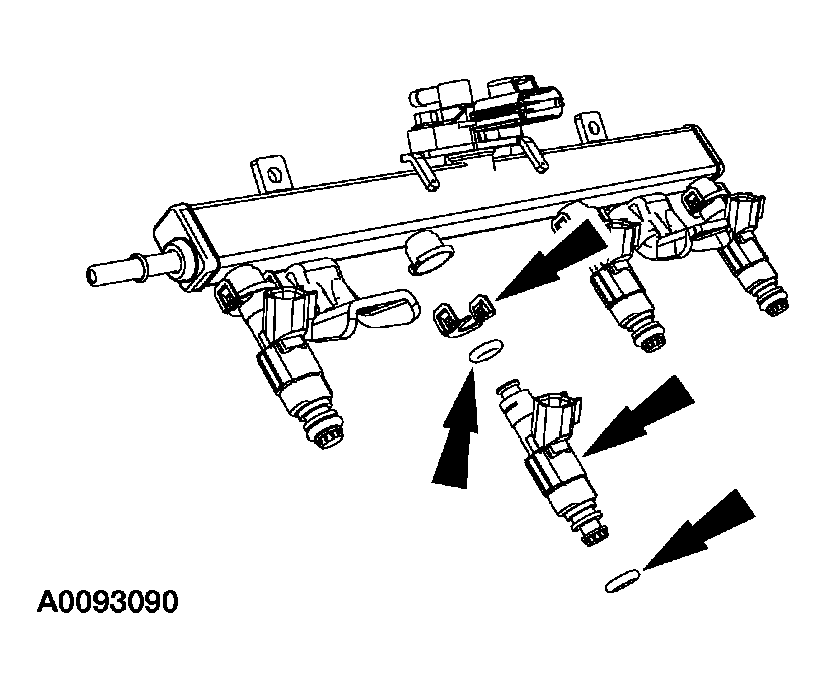

Fig 6: Removing O-Ring Seals

Courtesy of FORD MOTOR CO.

If necessary, remove the fuel injector retaining clips and the fuel injectors.
- Remove and discard the O-ring seals.

NOTE: Install new O-ring seals and lubricate them with clean engine oil.

To install, reverse the removal procedure.
