Removal and Installation

Remove the air cleaner outlet pipe.
- Remove the crankcase breather tube.
- Loosen the clamps.
- Remove the air cleaner outlet pipe.

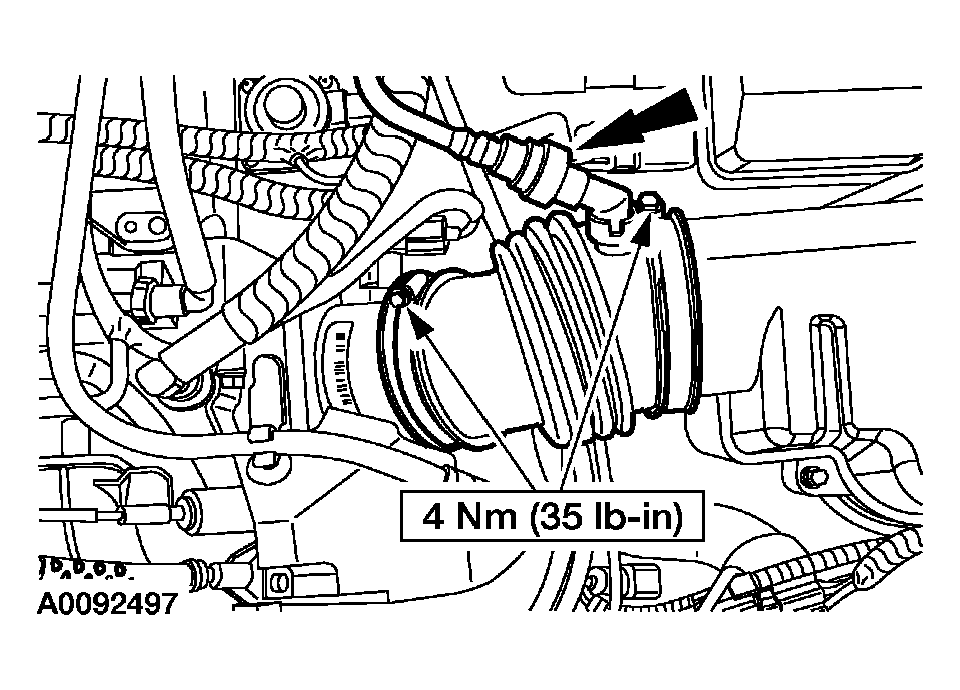

Fig 1: Removing Air Cleaner Outlet Pipe
Courtesy of FORD MOTOR CO.
Remove the accelerator control snow shield.
- Unclip emission tube.
- Remove the retainer screw.
- Release the alignment tab and remove the cover.

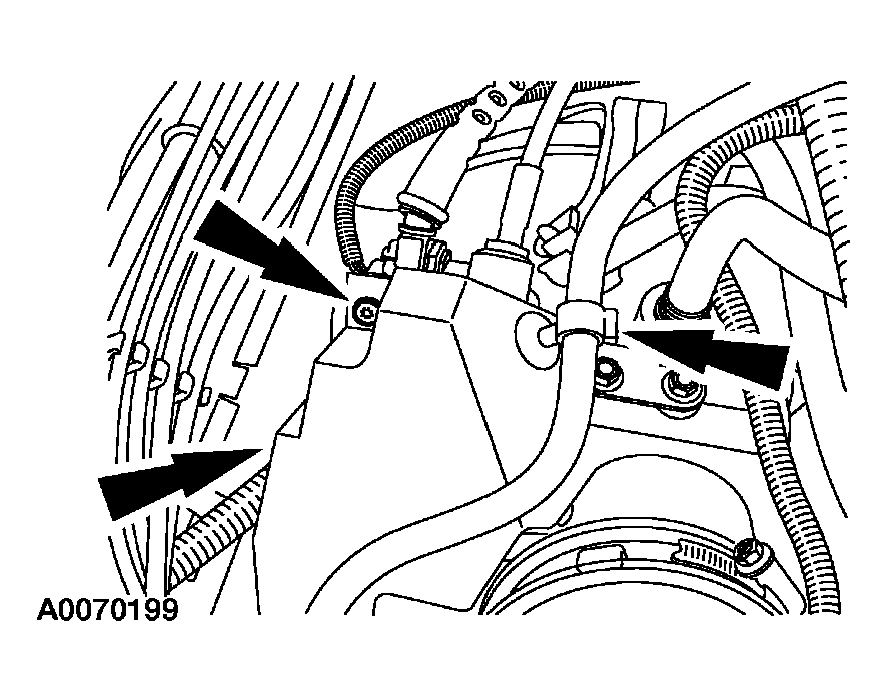

Fig 2: Removing Accelerator Control Snow Shield
Courtesy of FORD MOTOR CO.
Disconnect the accelerator cable and the speed control cable (if equipped) at the throttle body.

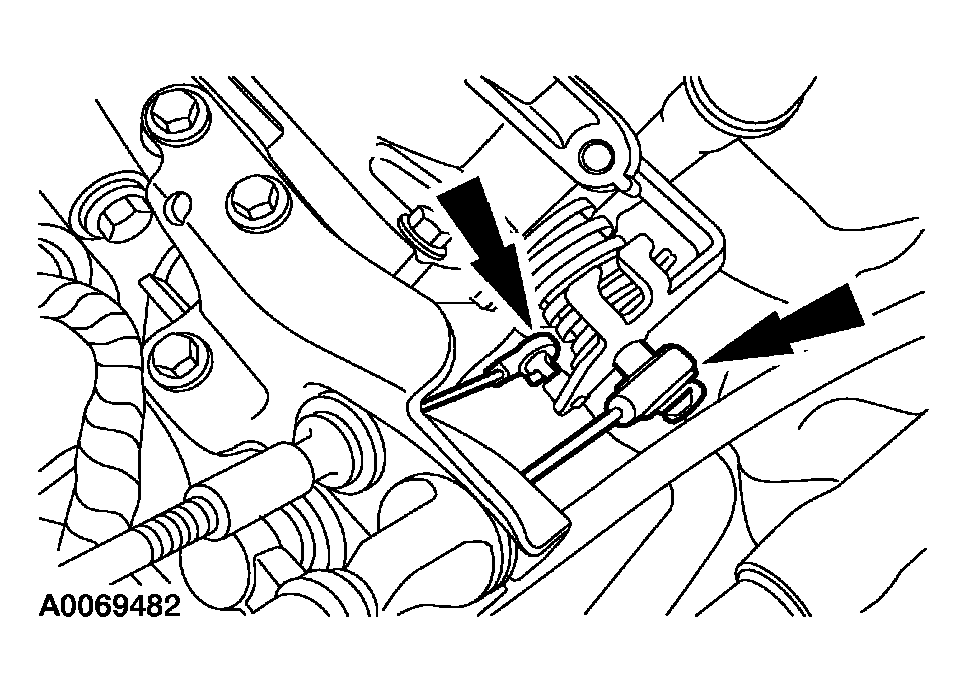

Fig 3: Disconnecting Accelerator Cable And Speed Control Cable At Throttle Body
Courtesy of FORD MOTOR CO.
Disconnect the throttle position (TP) sensor electrical connector.

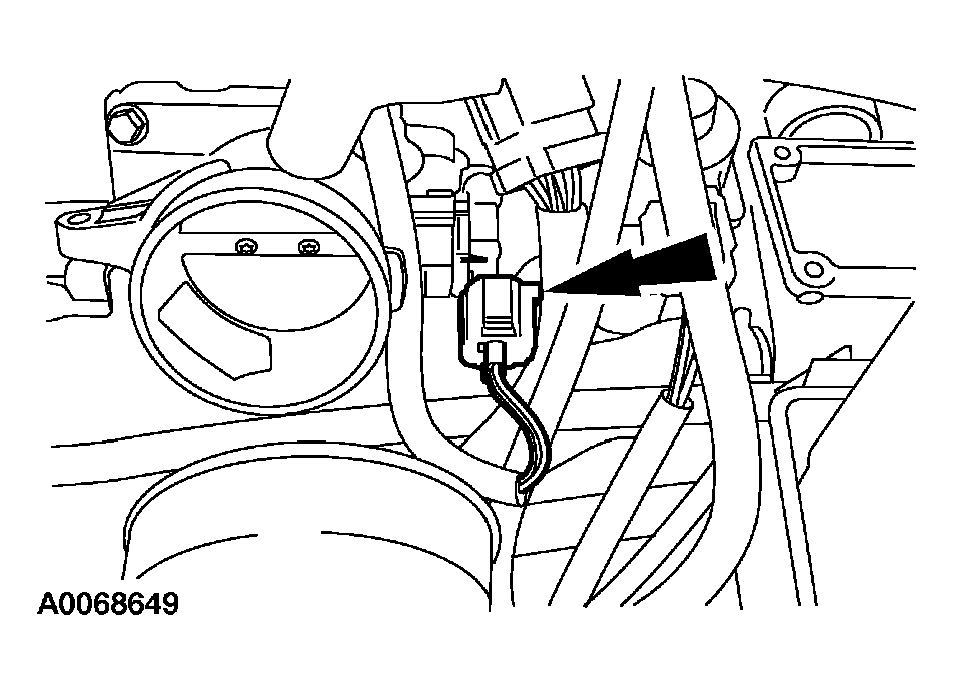

Fig 4: Disconnecting Throttle Position Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the bolts and the throttle body.

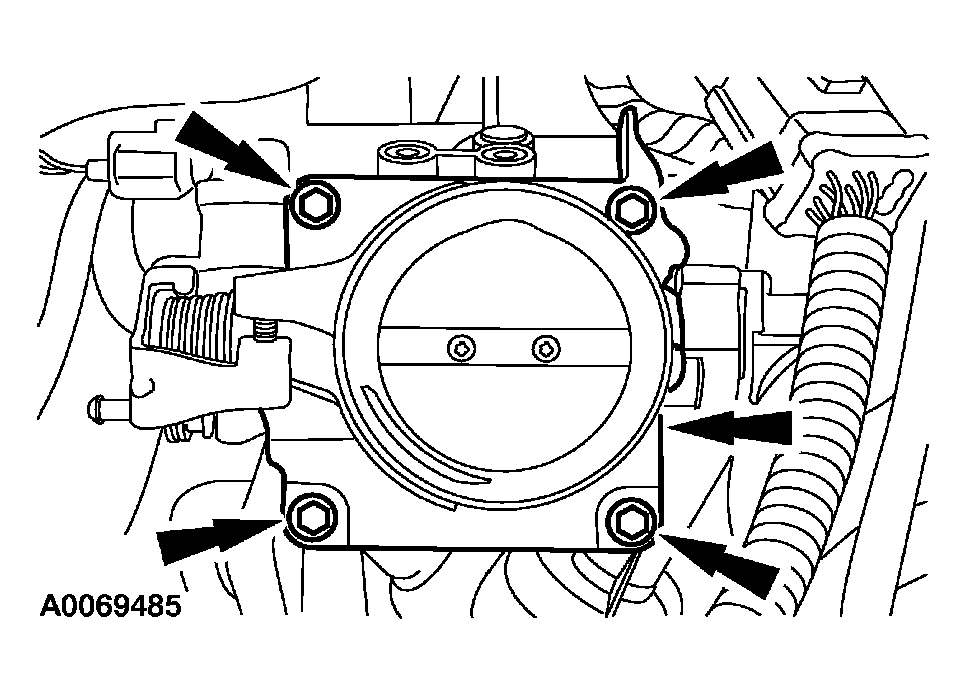

Fig 5: Removing Throttle Body Bolts
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Tighten the throttle body bolts in the sequence shown.

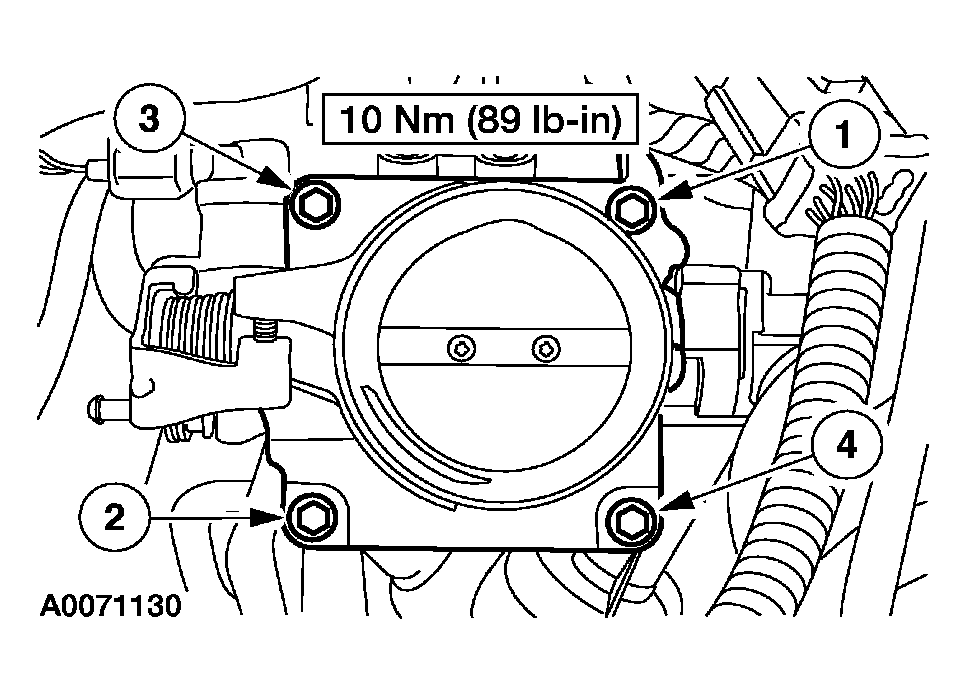

Fig 6: Identifying Tightening Sequence Of Throttle Body Bolts

Courtesy of FORD MOTOR CO.
