Multifunction switch (13K359): Schematic

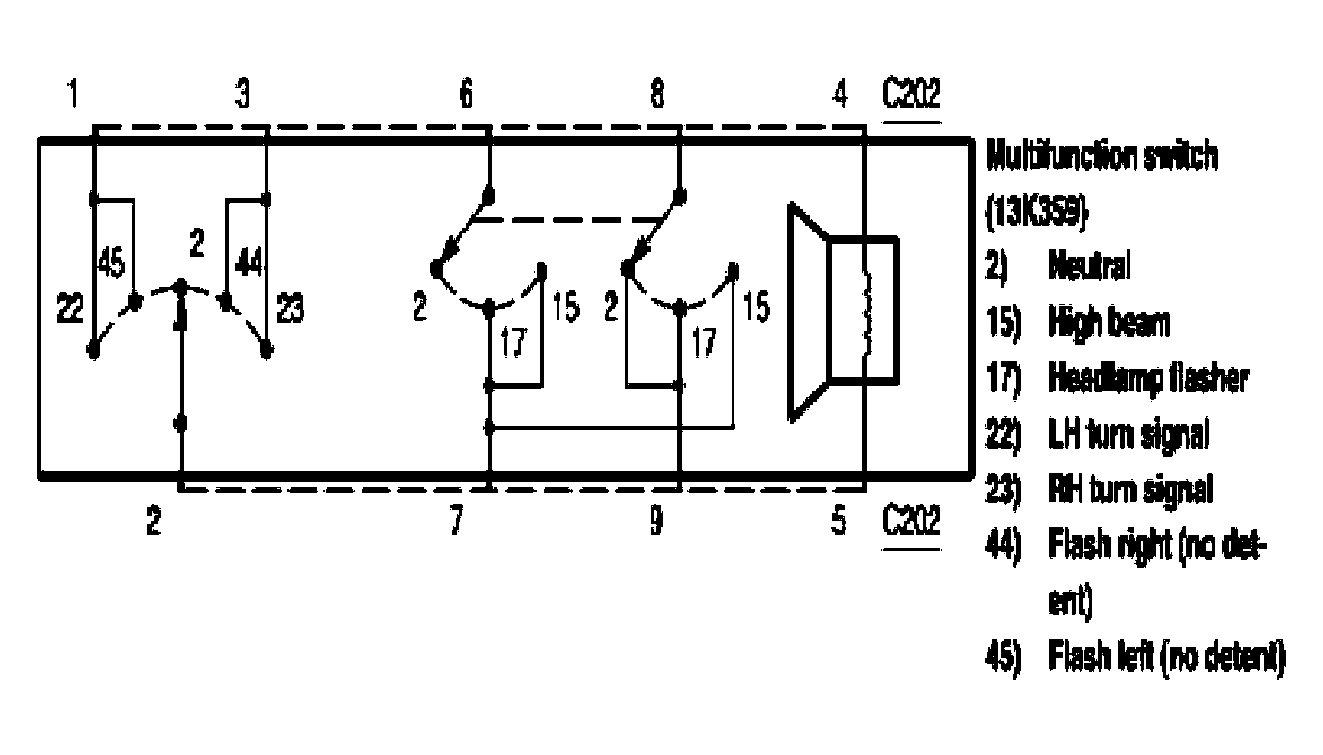

Fig 1: Multifunction Switch (13K359) - Schematic
G03994000Courtesy of FORD MOTOR CO.
