Direct Clutch: Notes

SPECIAL TOOL SPECIFICATION

G03951486
 Compressor, Spring Washer 307-209
MATERIAL SPECIFICATION

Item Specification
Automatic Transmission Fluid XT-5-QM MERCON® V

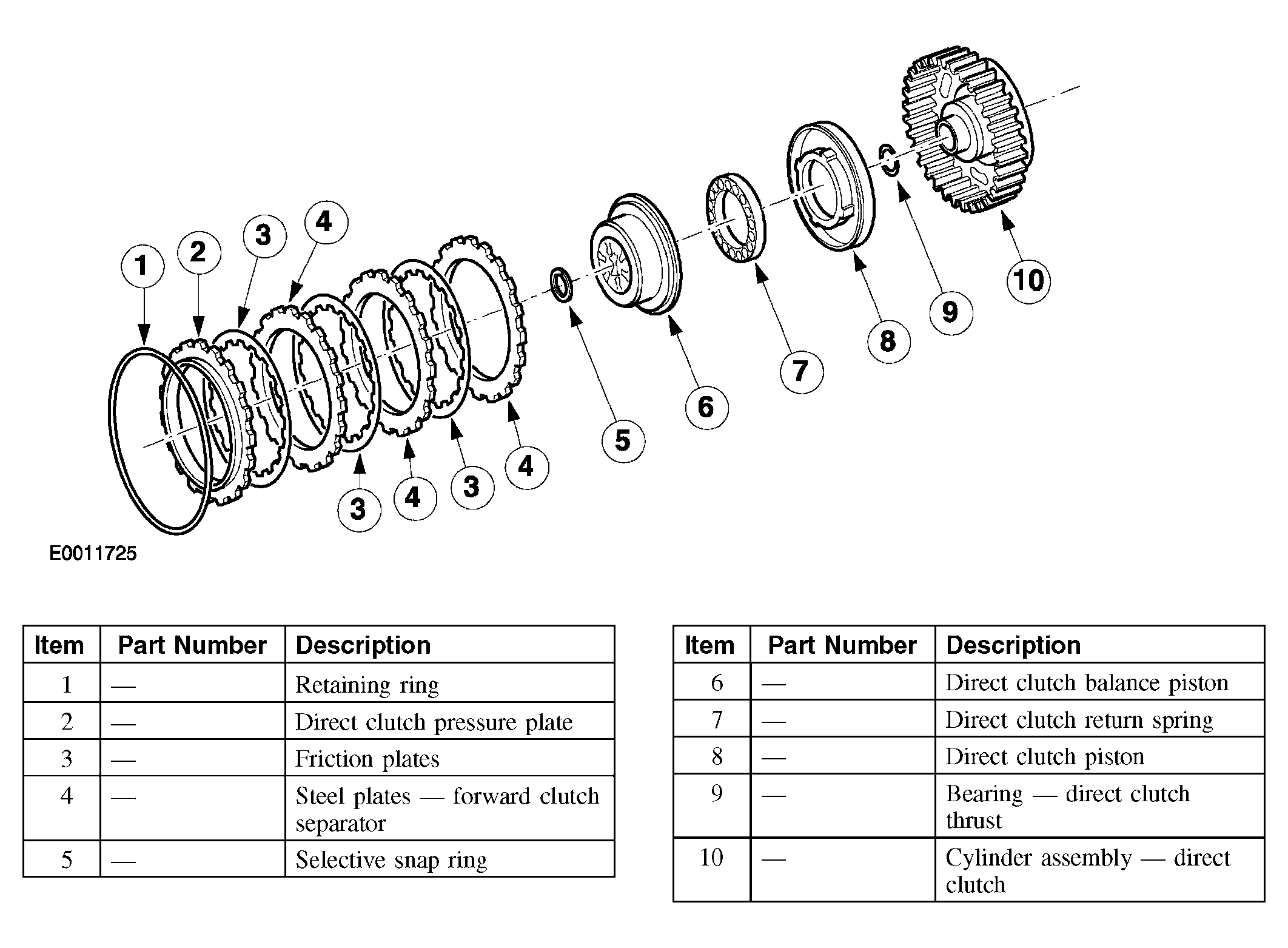

Fig 1: Exploded View Of Direct Clutch
G03951487Courtesy of FORD MOTOR CO.
