Main Control Valve Body: Disassembly

  1. Remove the solenoid body bolts and the solenoid body.

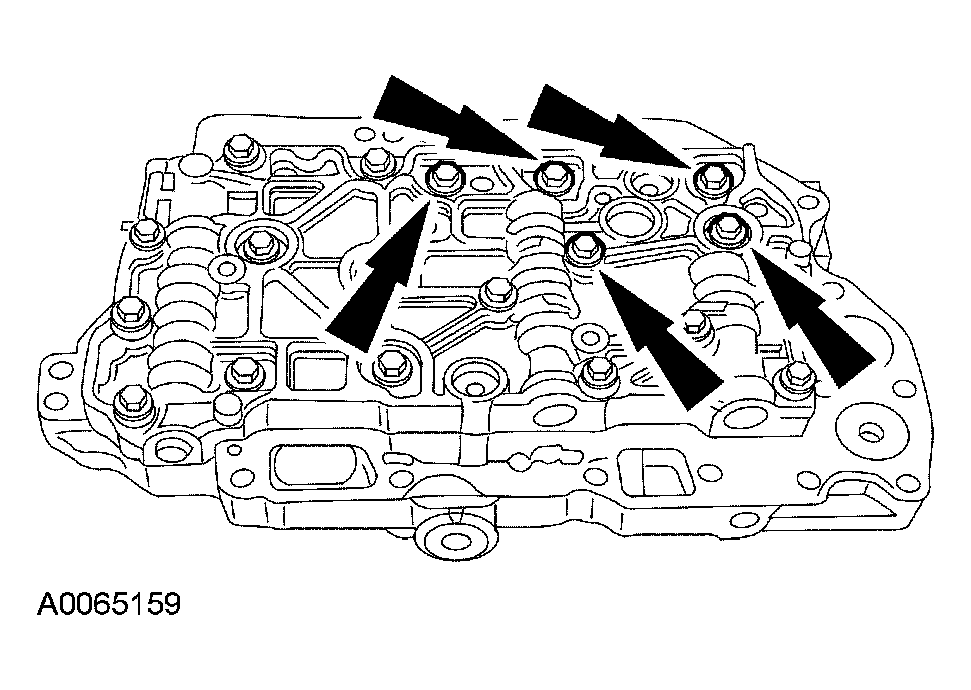

    Fig 1: Removing Solenoid Body Bolts
    G03951536Courtesy of FORD MOTOR CO.
  2. Remove and discard the solenoid body gaskets.

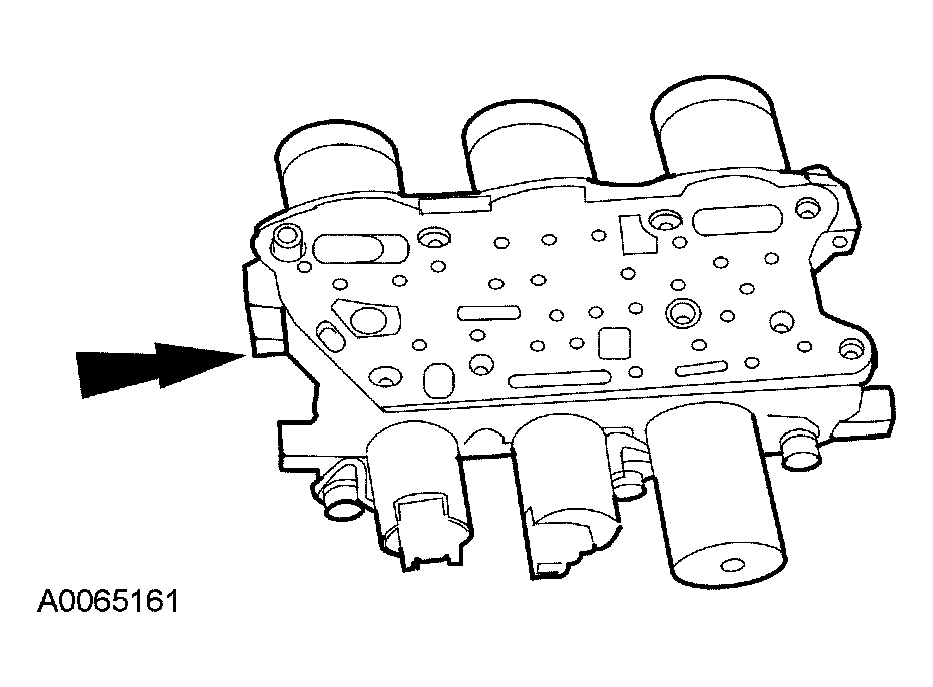

    Fig 2: Removing Solenoid Body Gaskets
    G03951537Courtesy of FORD MOTOR CO.
  3. Remove and discard the seals.

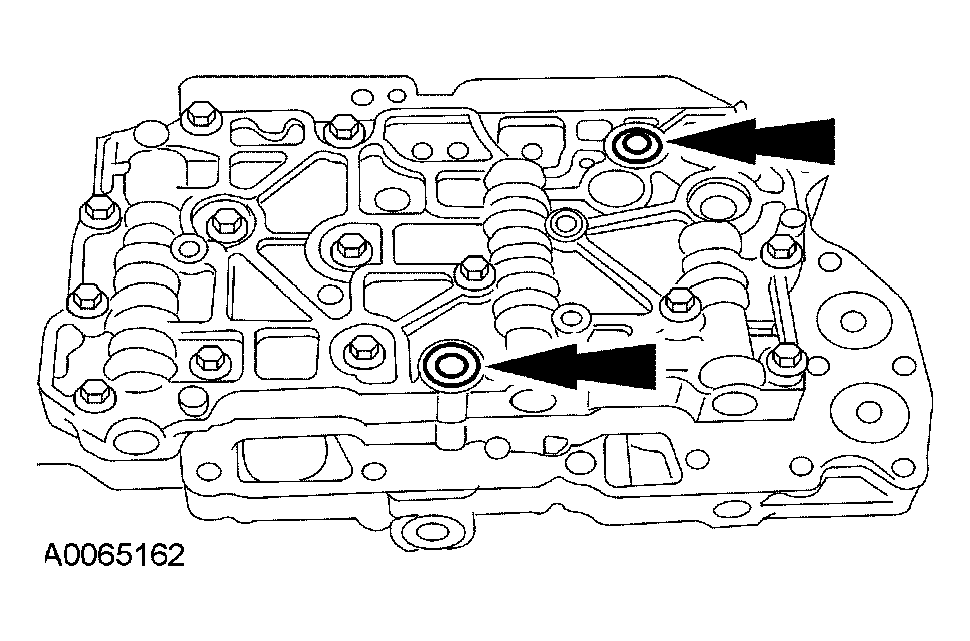

    Fig 3: Removing Seals
    G03951538Courtesy of FORD MOTOR CO.
  4. Disassemble the main control valve body.

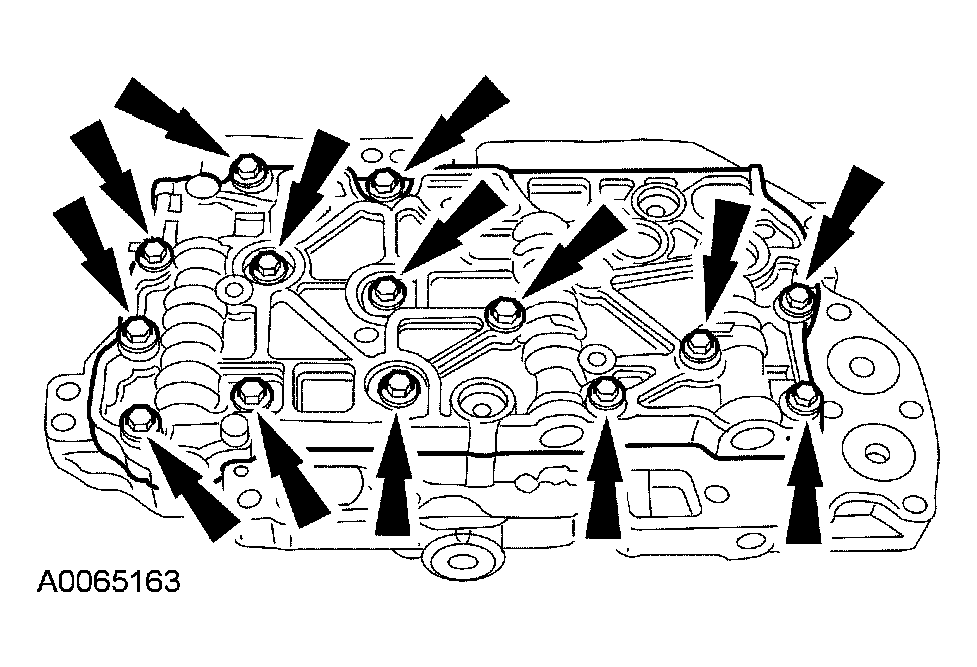

    Fig 4: Disassembling Main Control Valve Body
    G03951539Courtesy of FORD MOTOR CO.
