Main Control Valve Body: Notes

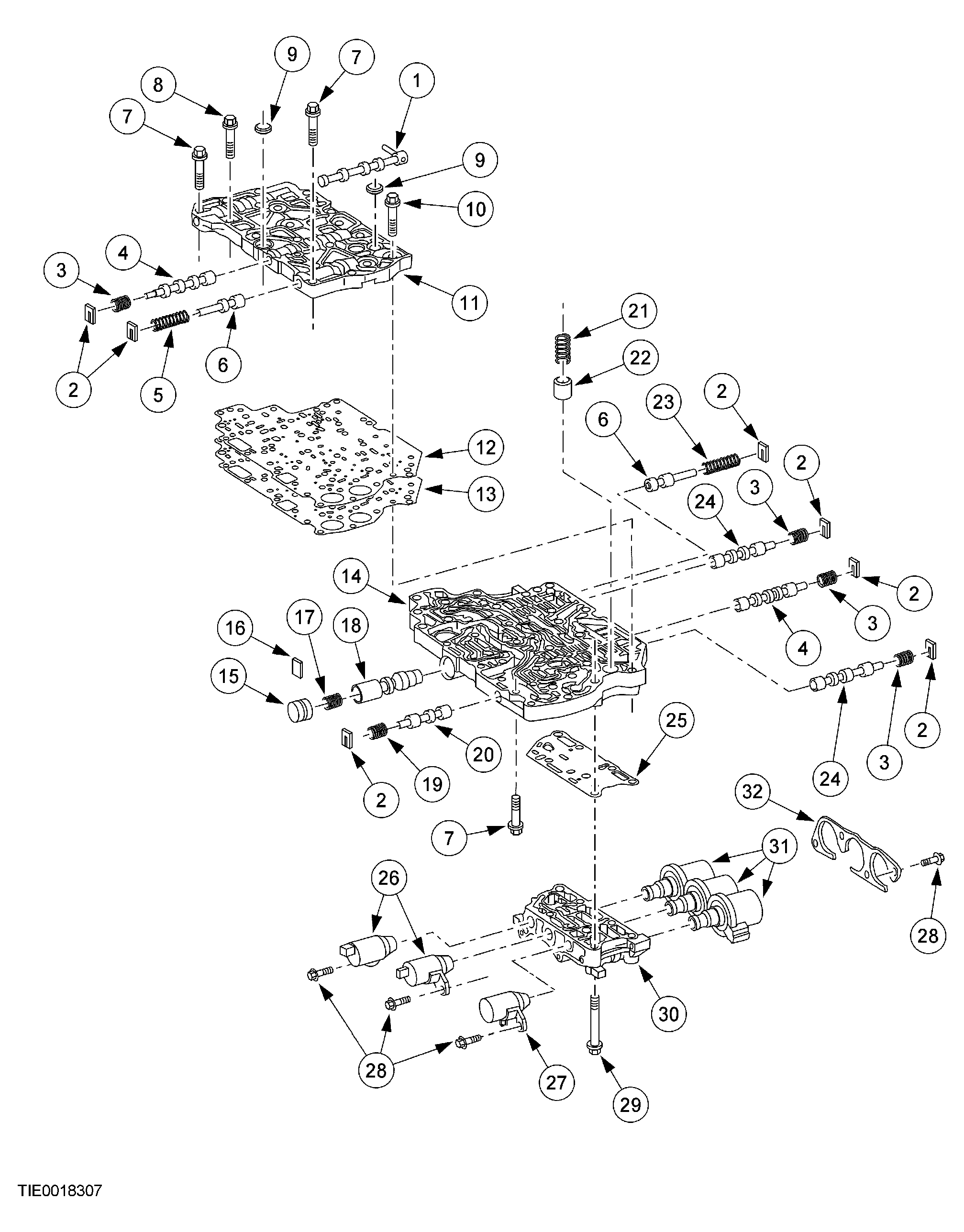

Fig 1: Exploded View Of Main Control Valve Body (1 Of 2)
G03951534Courtesy of FORD MOTOR CO.

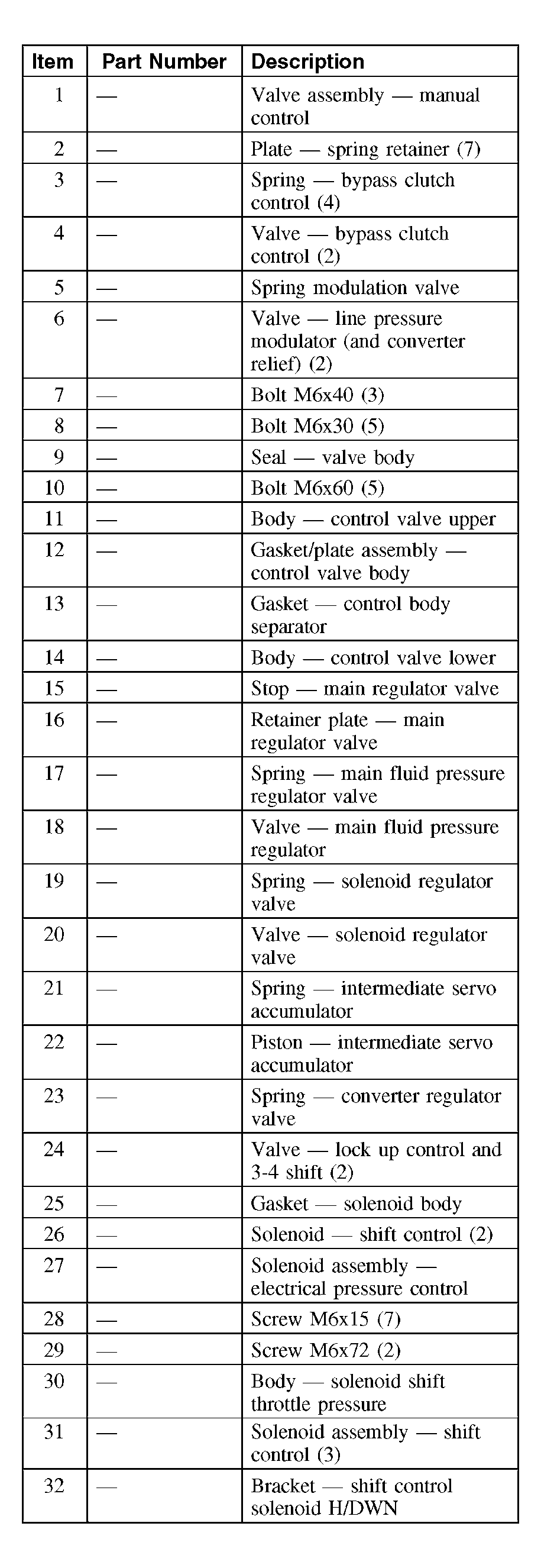

Fig 2: Exploded View Of Main Control Valve Body (2 Of 2)
G03951535Courtesy of FORD MOTOR CO.
