Reverse Clutch: Assembly

Soak the internal spline clutch plates in clean automatic transmission fluid for 15 minutes before assembly.
Lubricate and install the reverse clutch piston assembly.

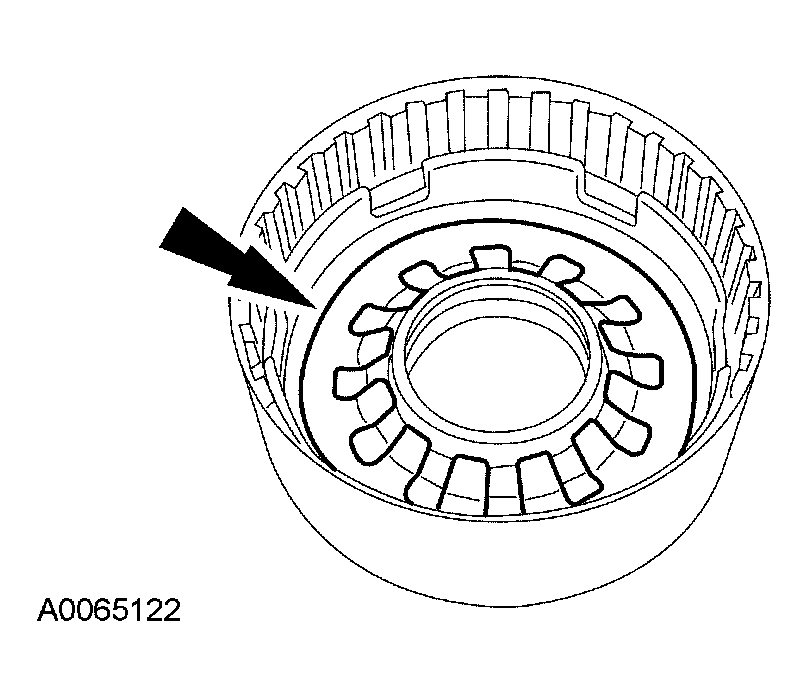

Fig 1: Installing Reverse Clutch Piston Assembly
Courtesy of FORD MOTOR CO.
Install the reverse clutch piston return spring.

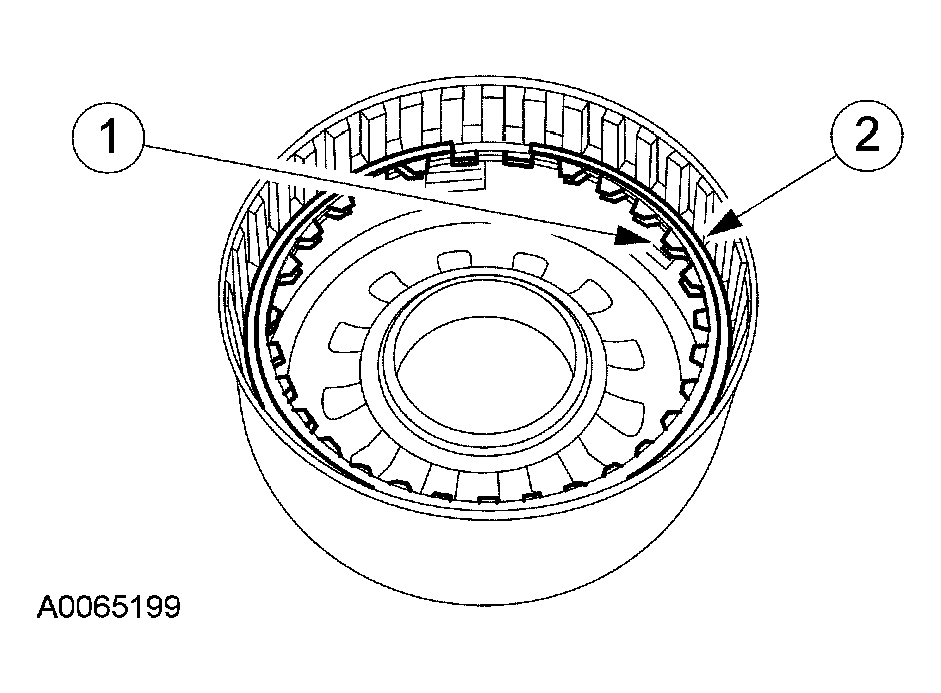

Fig 2: Installing Reverse Clutch Piston Return Spring
Courtesy of FORD MOTOR CO.
Using the special tool, install the reverse clutch piston return spring retainer and retainer ring.

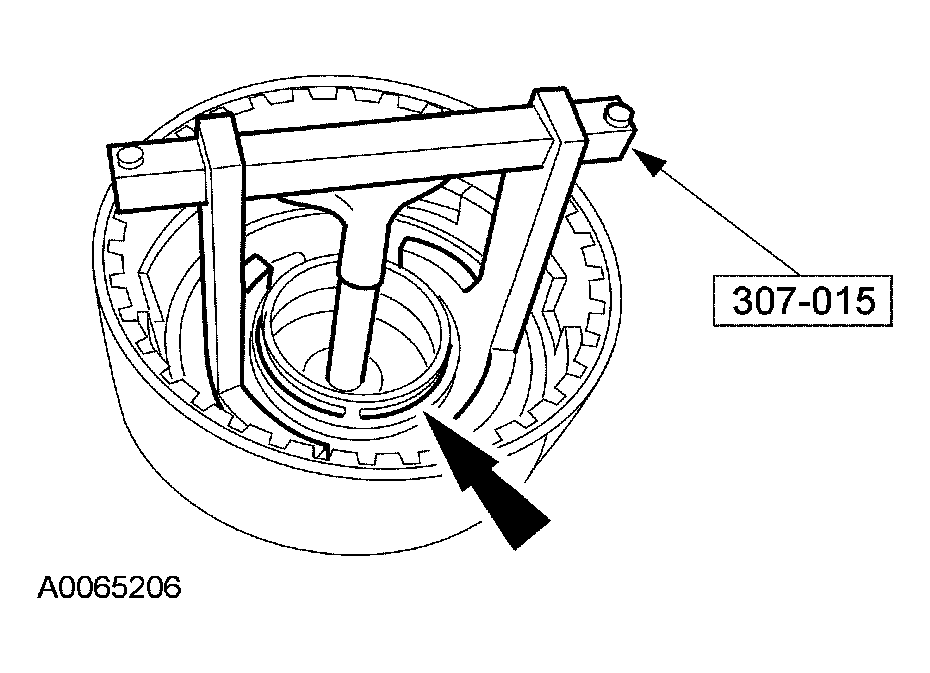

Fig 3: Installing Reverse Clutch Piston Return Spring Retainer And Retainer Ring Using Special Tool
Courtesy of FORD MOTOR CO.
Install the reverse clutch pressure, friction and steel plates.
1. Install the plates.
2. Install the retaining ring.
  - Check the clearance. For additional information, refer to SPECIFICATIONS .

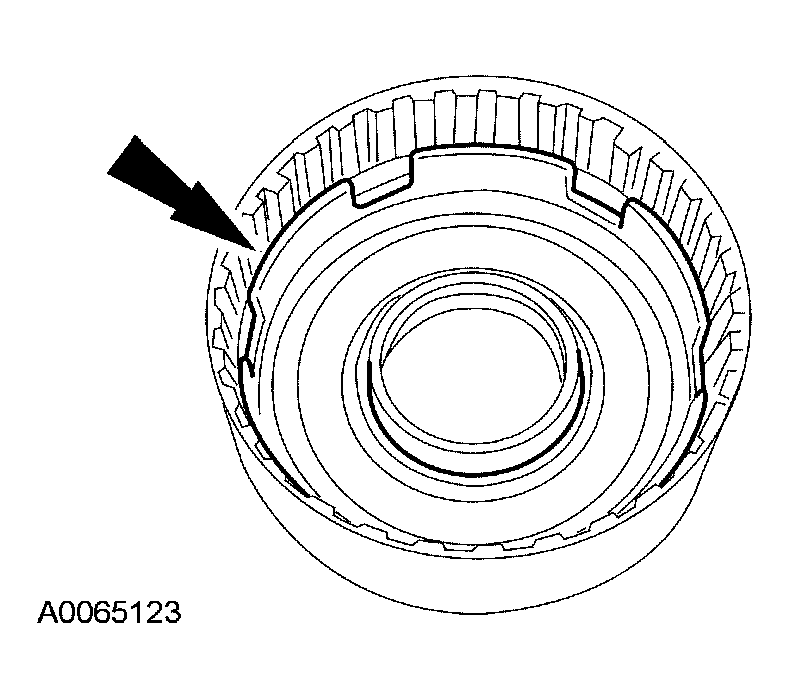

Fig 4: Installing Reverse Clutch Pressure, Friction And Steel Plates
