Fuel Injector Control Module

The fuel injector control module (FICM) is used to control the dual-injection fuel delivery system for gasoline engines. Based on an input from the PCM the FICM will control either single or dual-injection modes.

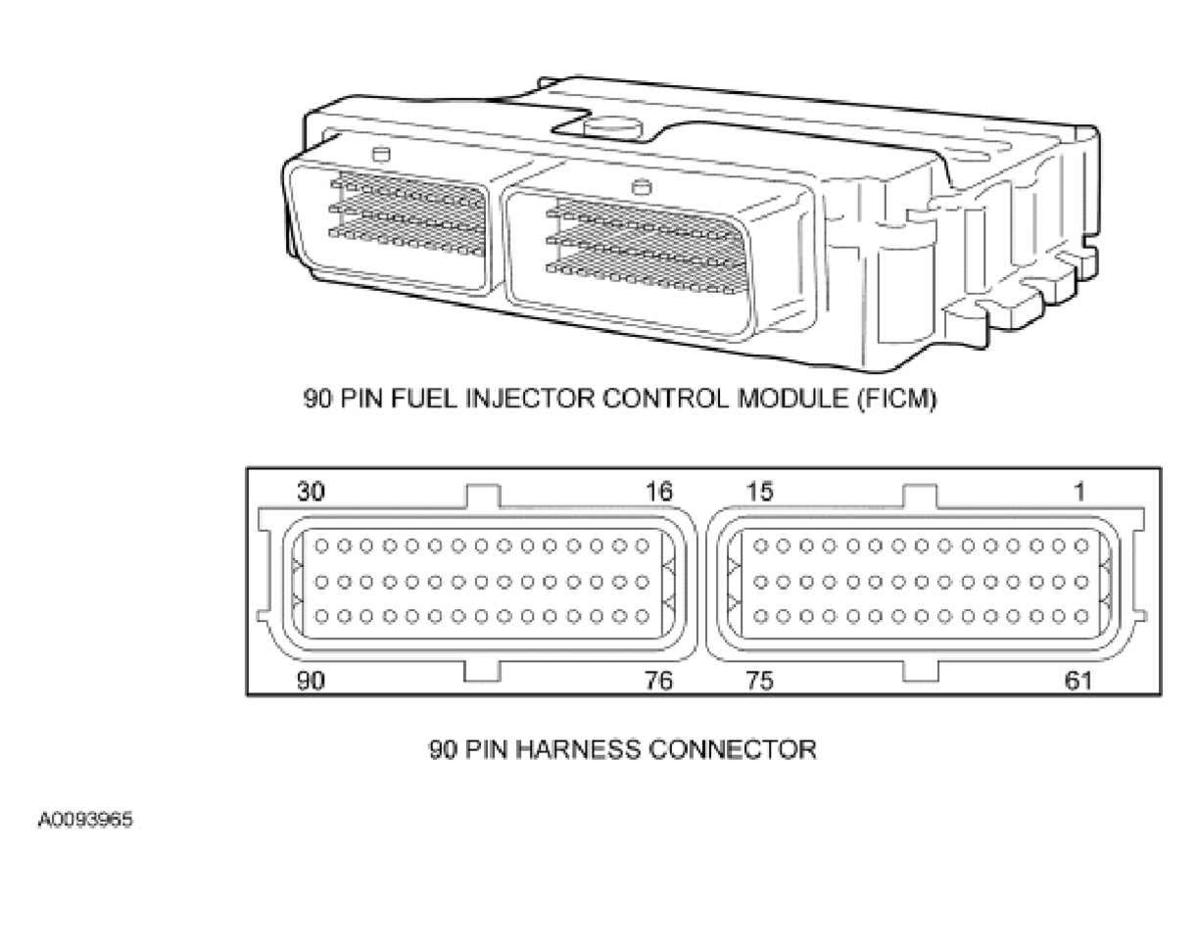

Fig 1: 90-Pin Fuel Injection Control Module (FICM)

Courtesy of FORD MOTOR CO.
