Smart Junction Box (SJB): Notes

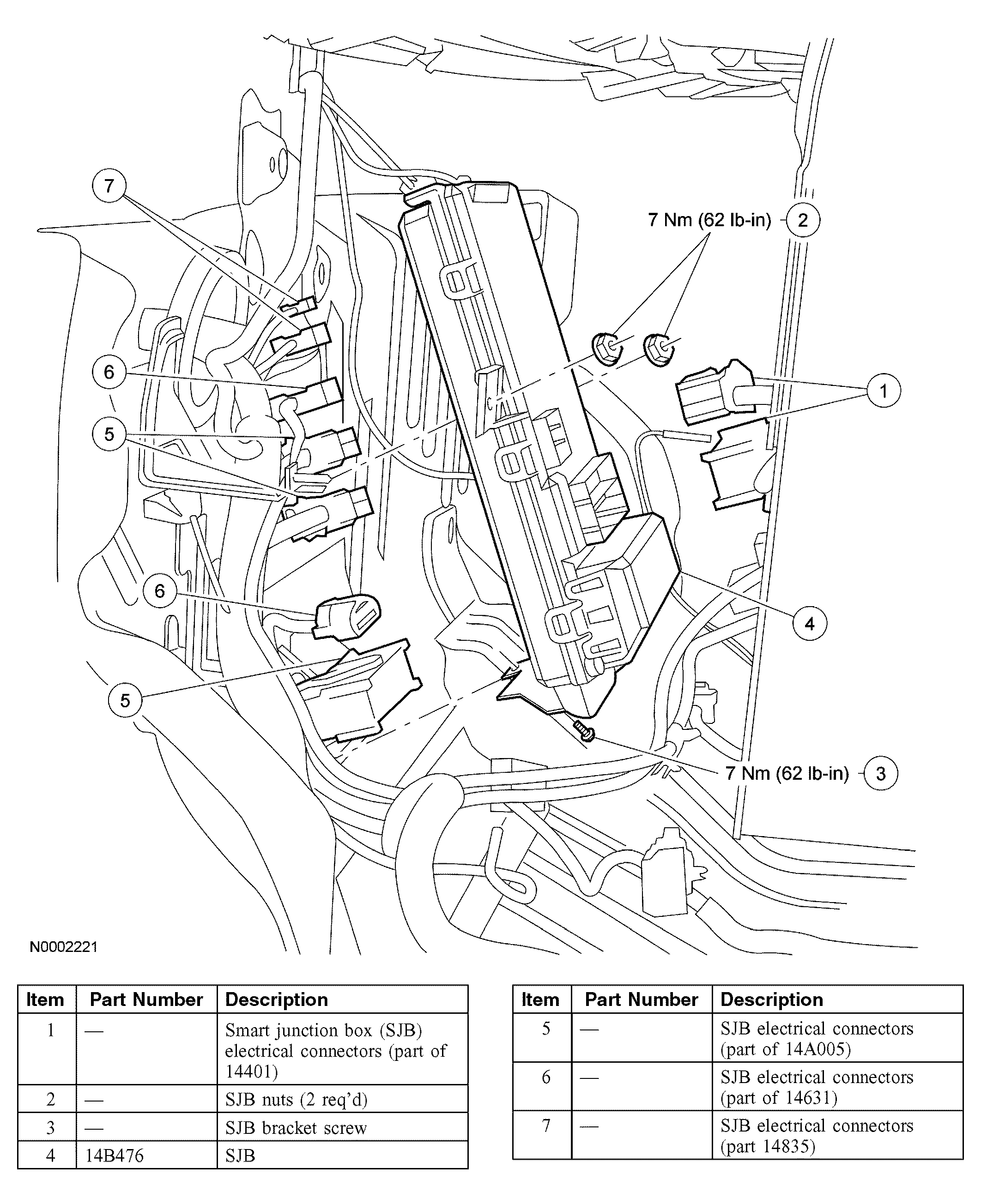

Fig 1: Removing & Installing Smart Junction Box (SJB)
G04006469Courtesy of FORD MOTOR CO.
