Home › Ford › 2005 › Freestar Base › Repair and Diagnosis › Body & Frame › Seats › Seat System › Disassembly And Assembly › Seat Backrest - Second Row, Bucket › Notes

Seat Backrest - Second Row, Bucket: Notes

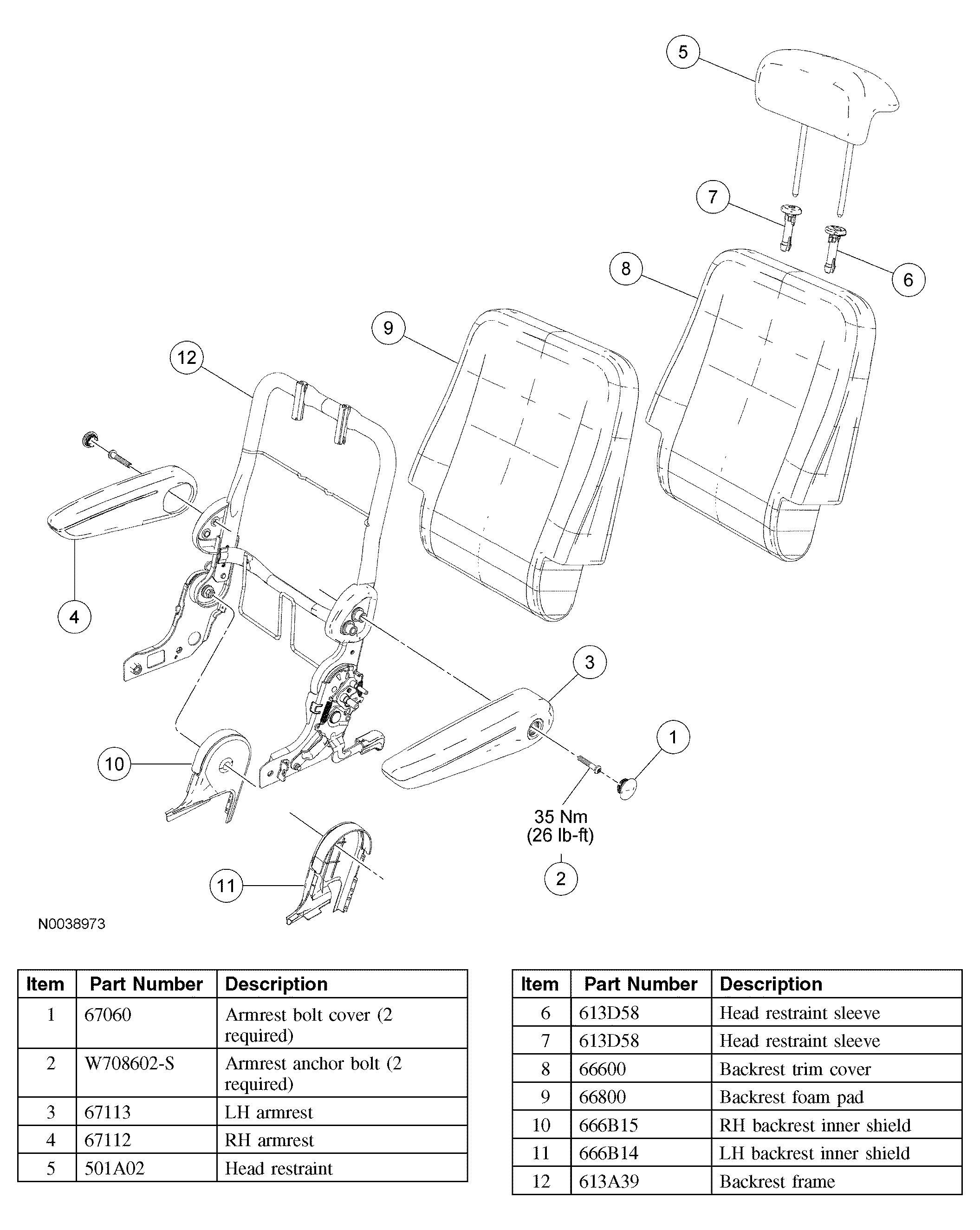

Fig 1: Exploded View Of Seat Backrest - Second Row, Bucket
G04011003Courtesy of FORD MOTOR CO.
