Seat Cushion - Third Row
›
Notes
Seat Cushion - Third Row: Notes

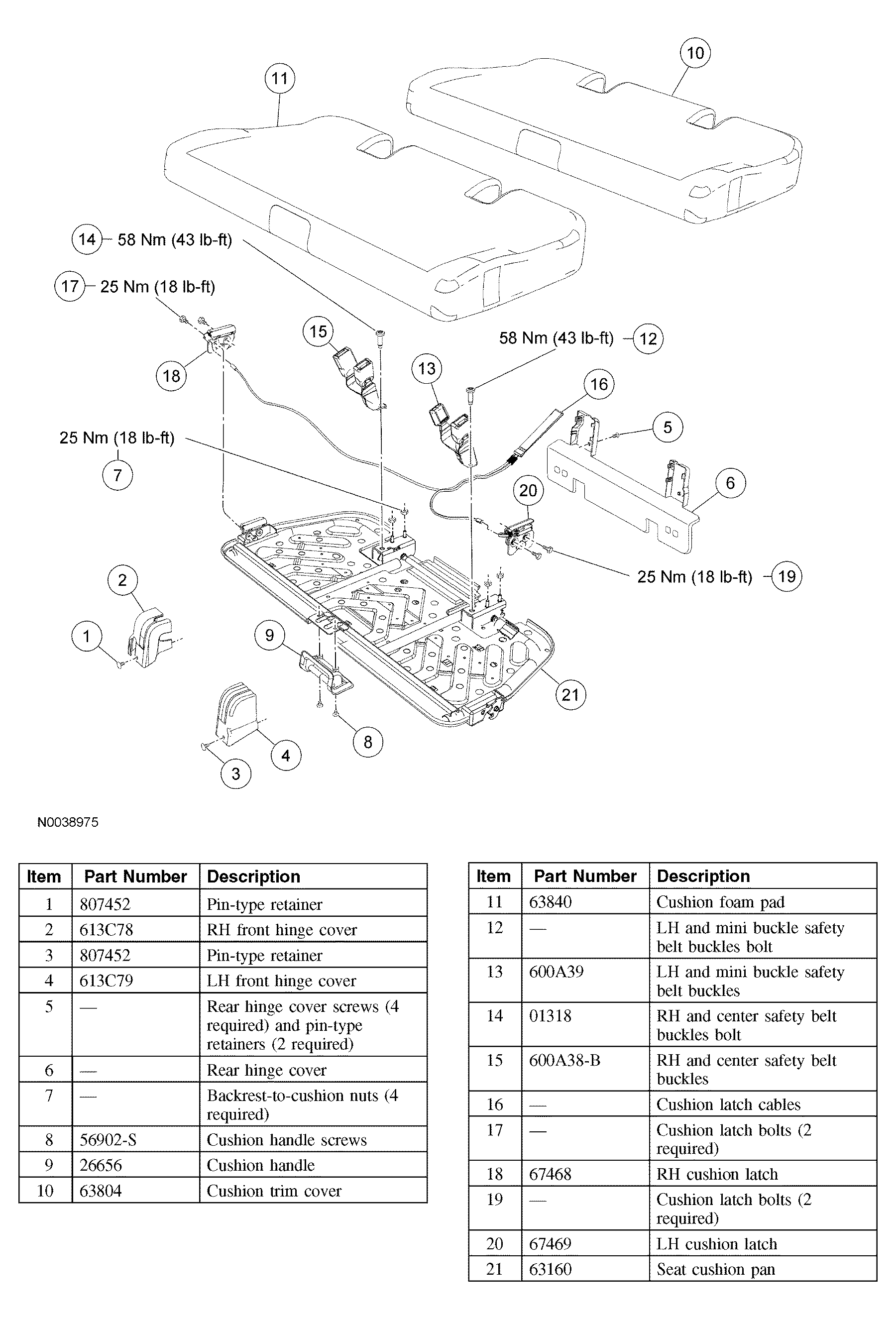

Fig 1: Exploded View Of Seat Cushion - Third Row
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
