Seat - Exploded View, Third Row

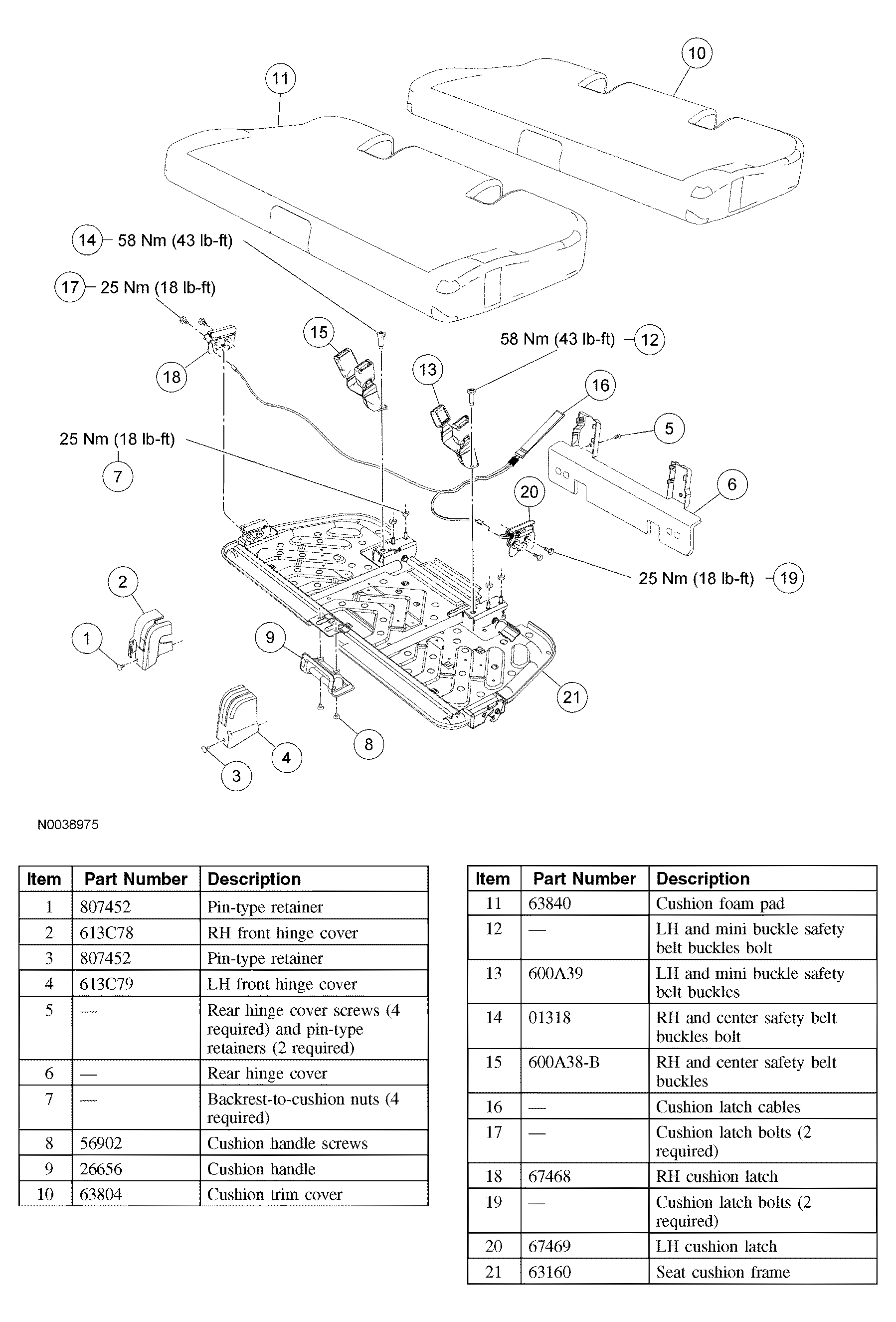

Fig 1: Exploded View Of Rear Seat Cushion - Third Row

Courtesy of FORD MOTOR CO.

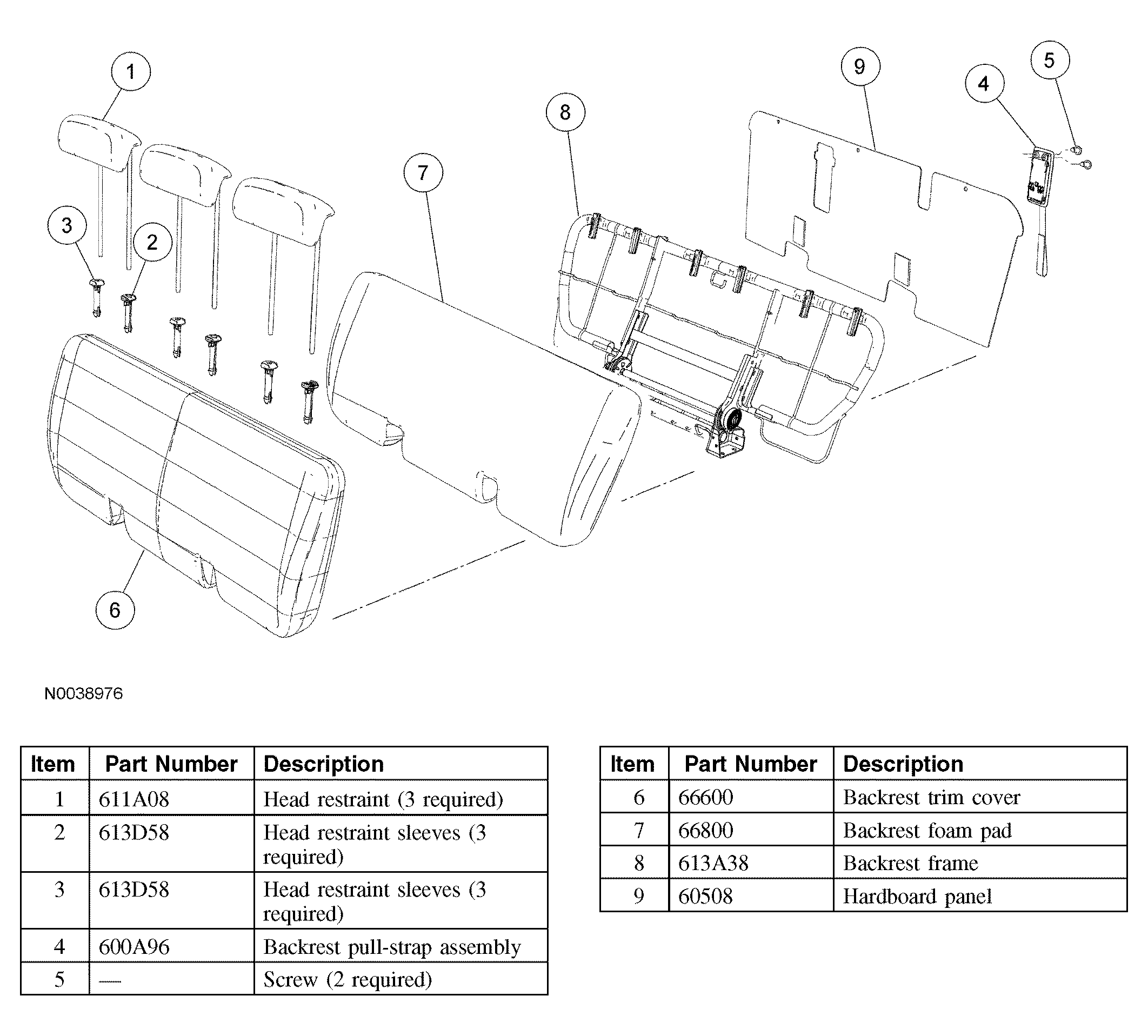

Fig 2: Exploded View Of Rear Seat Backrest - Third Row

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the appropriate component procedures.
