Valve Spring Installed Length

Measure the installed length of each valve spring.
- Refer to ENGINE - 3.9L AND 4.2L article for the procedure.
- If out of specification, install new components. Refer to ENGINE - 3.9L AND 4.2L article for the procedure.

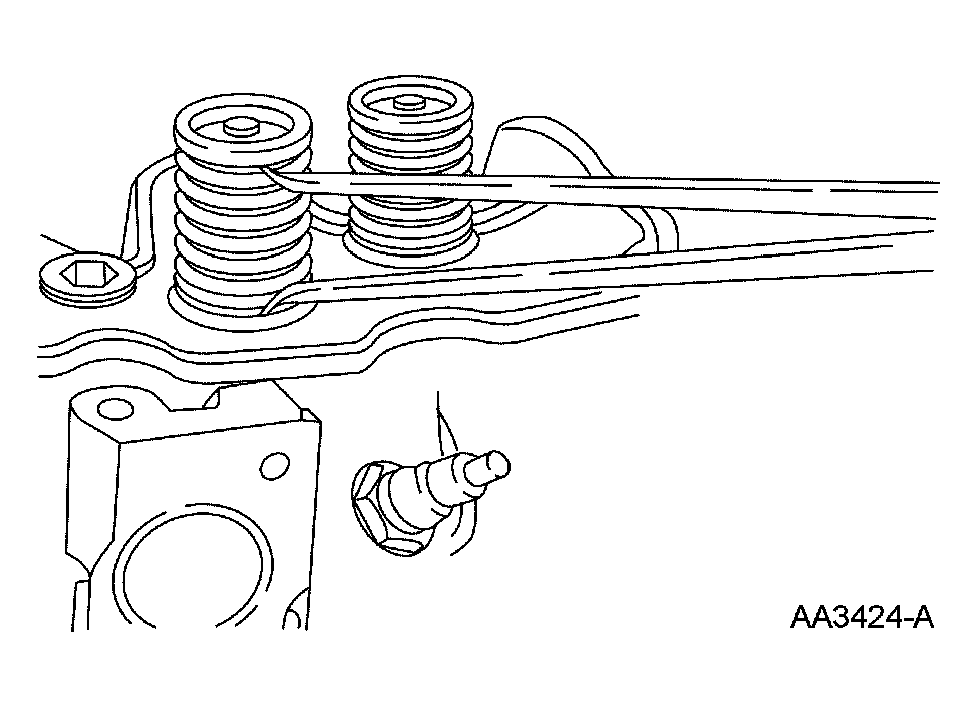

Fig 1: Measuring Installed Length Of Valve Spring
Courtesy of FORD MOTOR CO.
