Engine Mounts - Exploded View

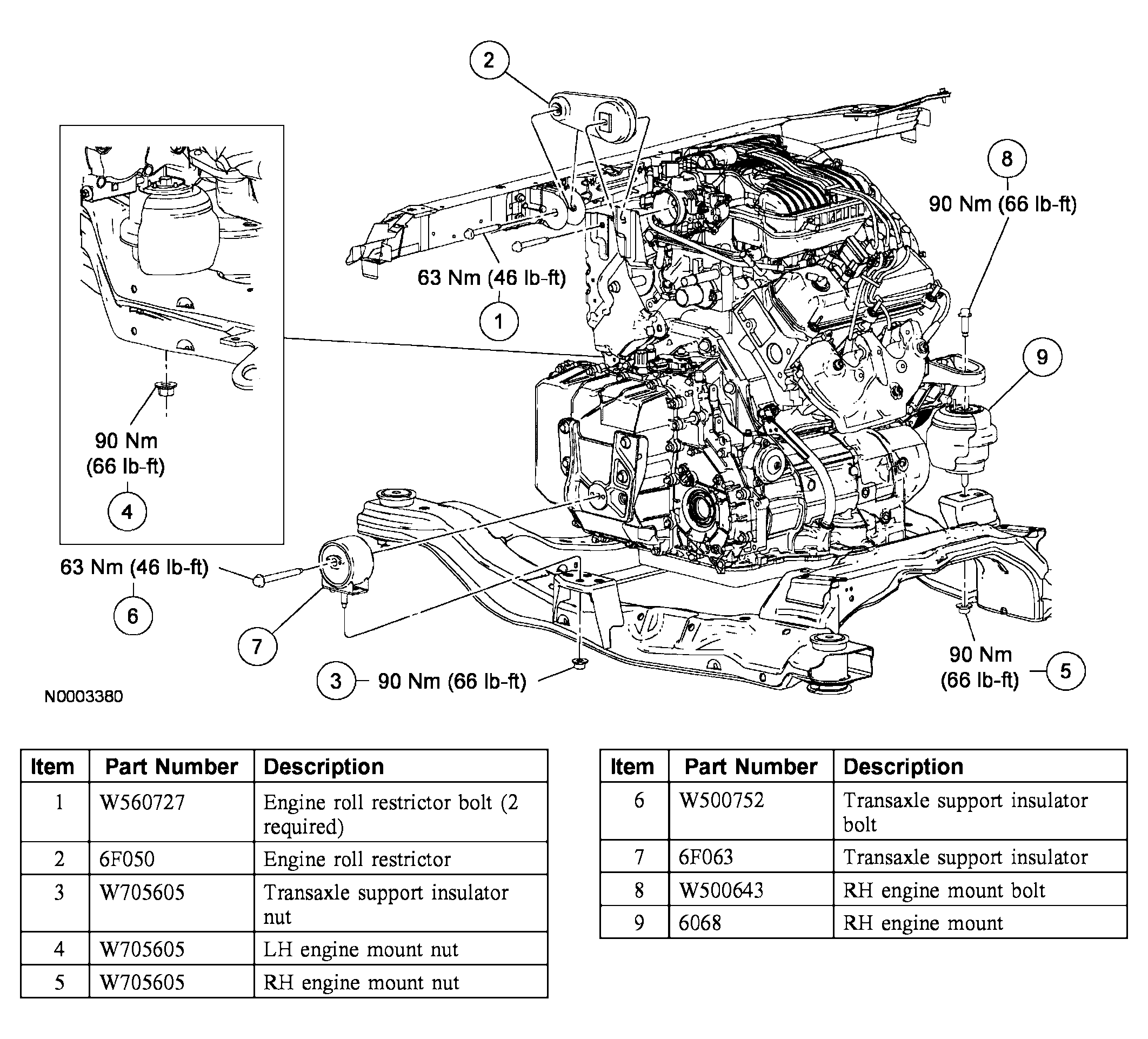

Fig 1: Identifying Engine Mount Components (1 Of 2)

Courtesy of FORD MOTOR CO.

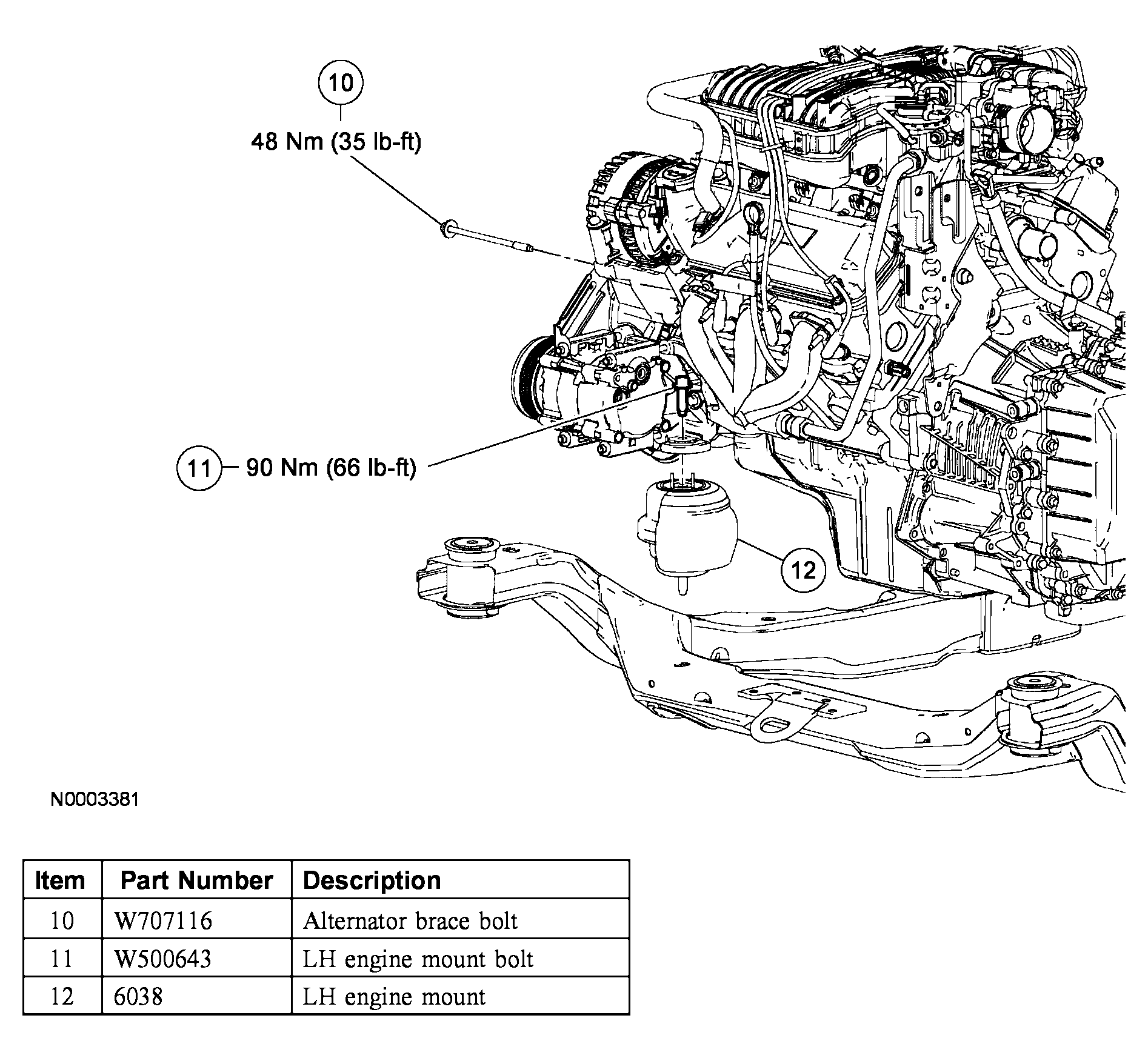

Fig 2: Identifying Engine Mount Components (2 Of 2)

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the appropriate procedures.
