Exhaust Manifold - RH
›
Notes
Exhaust Manifold - RH: Notes

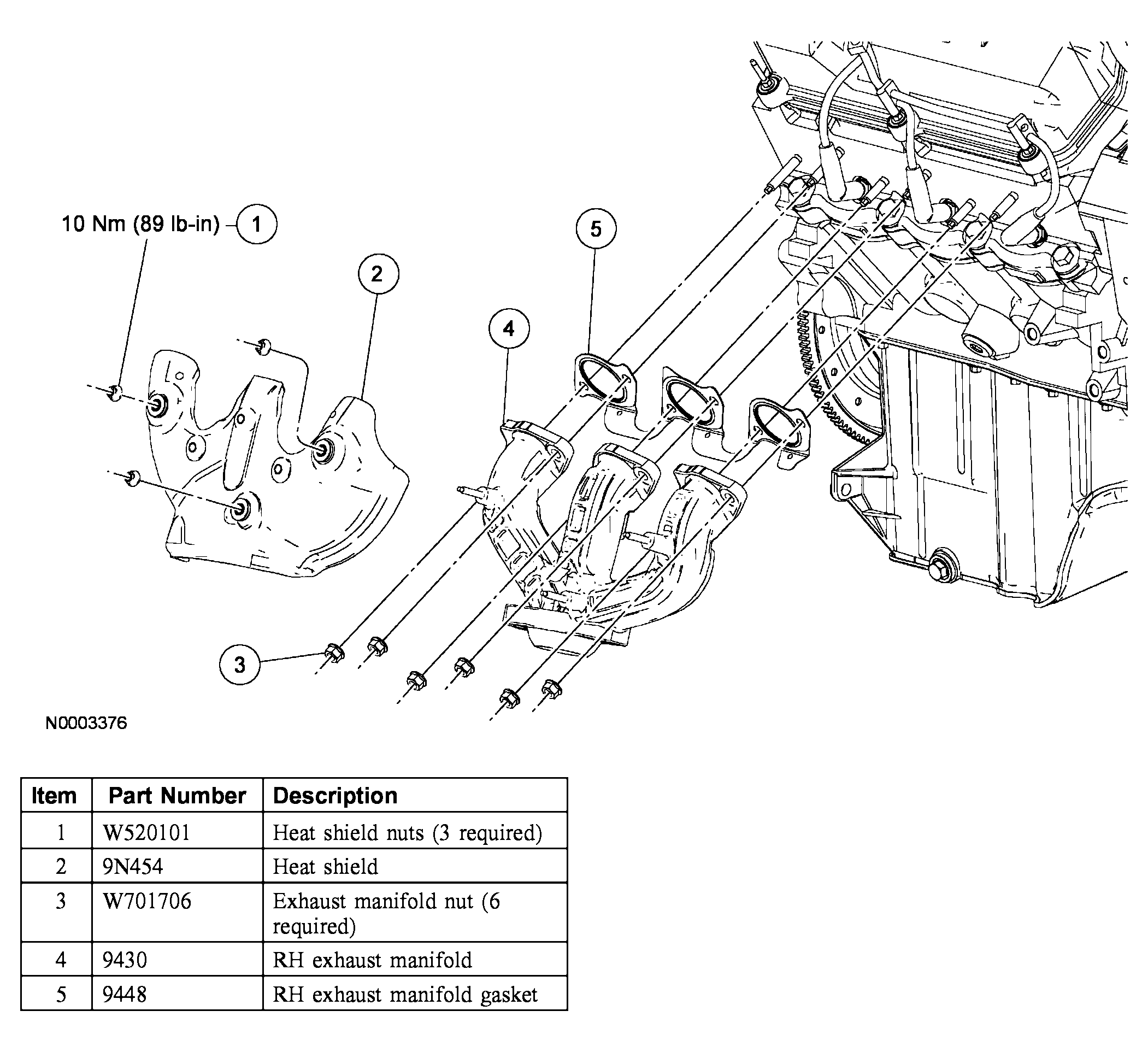

Fig 1: Identifying Exhaust Manifold - RH Components
Courtesy of FORD MOTOR CO.
