EVAP Monitor

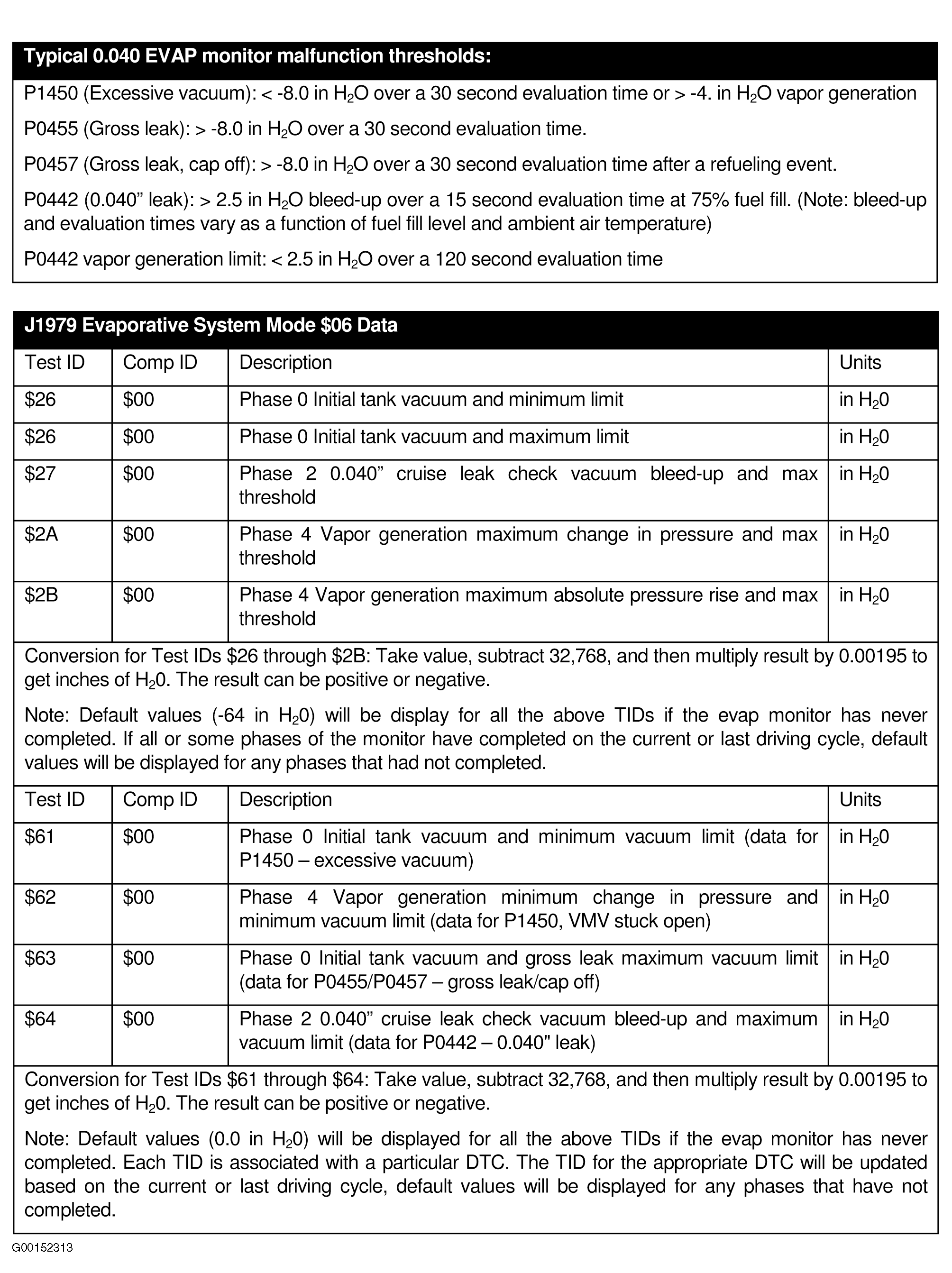

Fig 1: Mode $06 Data For EVAP Monitor (0.040" Leak)
G00152313Courtesy of FORD MOTOR CO.

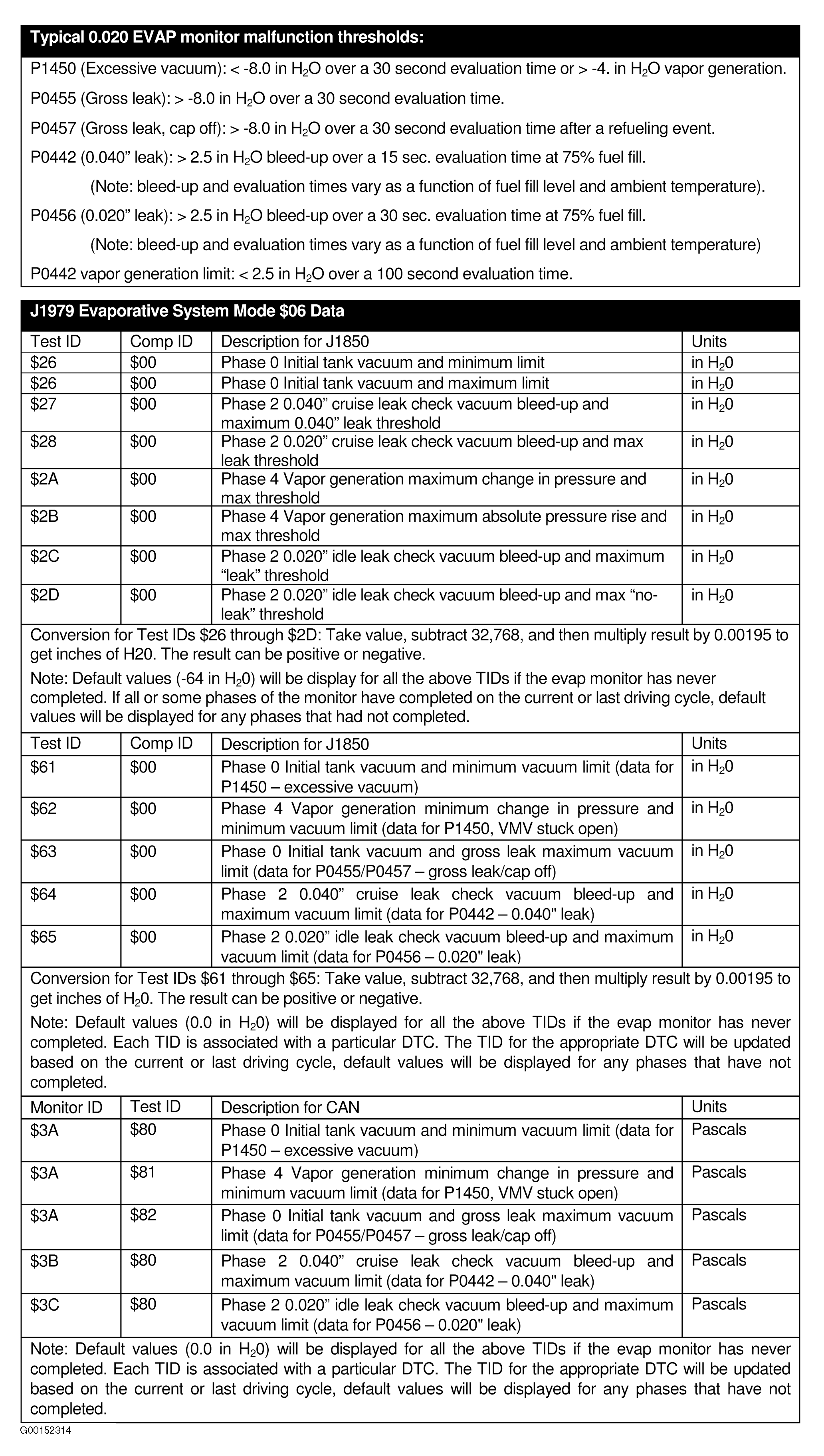

Fig 2: Mode $06 Data For EVAP Monitor (0.020" Leak)
G00152314Courtesy of FORD MOTOR CO.

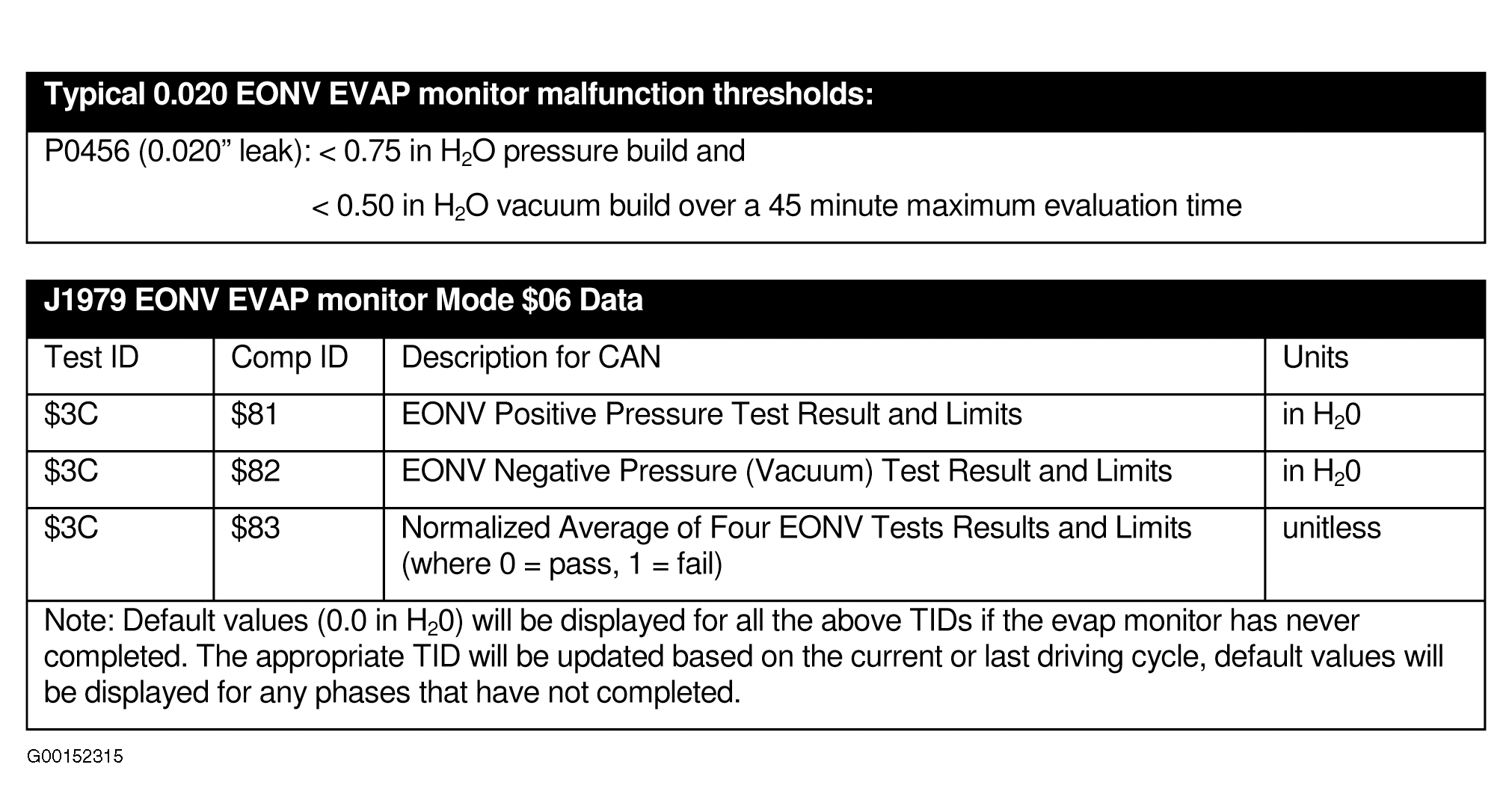

Fig 3: Mode $06 Data For EVAP Monitor (EONV 0.020" Leak)
G00152315Courtesy of FORD MOTOR CO.
