Home › Ford › 2005 › Freestar Base › Repair and Diagnosis › Restraints › Air Bag, SRS › Supplemental Inflatable Restraint System › Removal And Installation › Clockspring › Notes

Removal And Installation: Clockspring: Notes

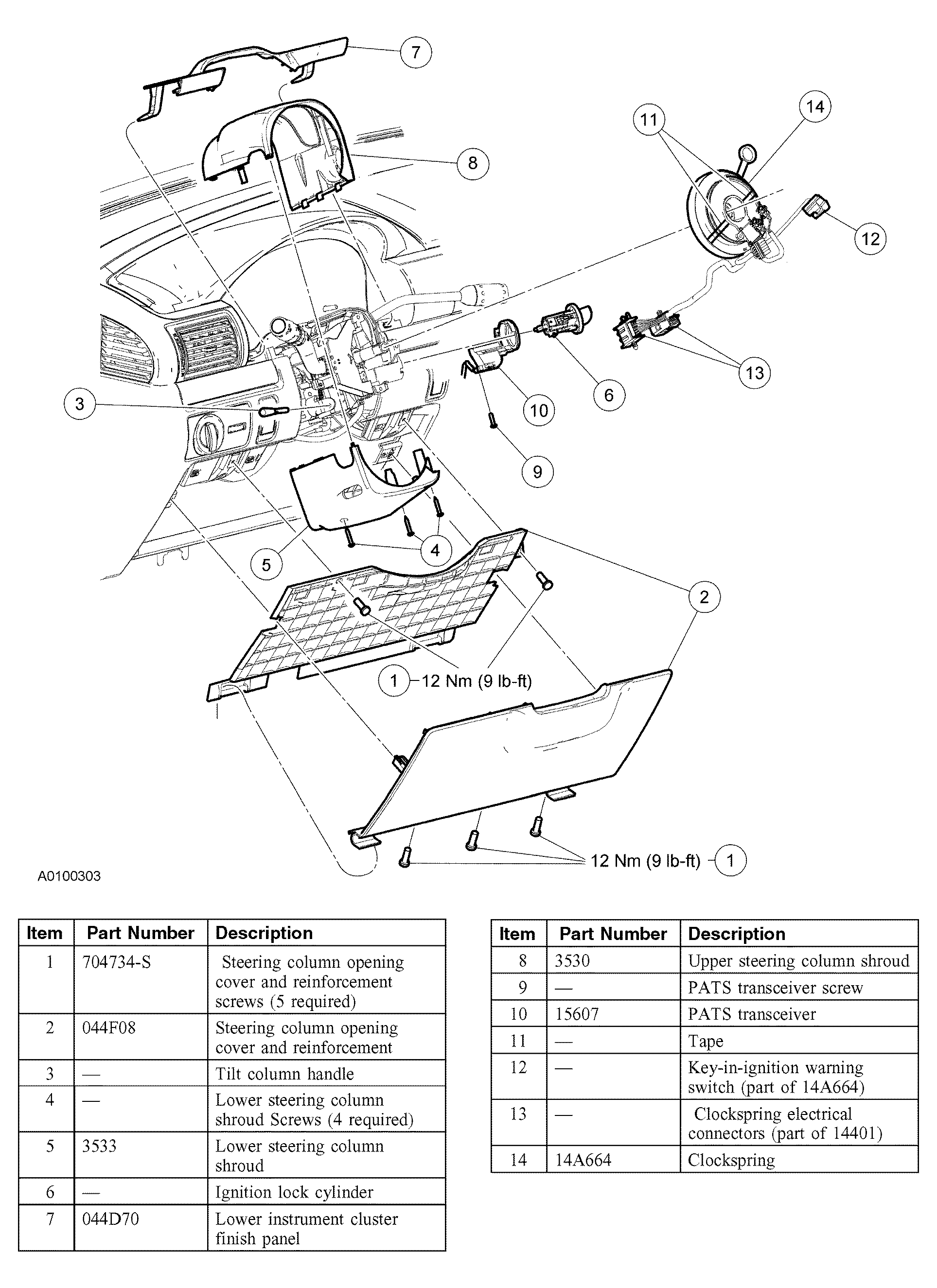

Fig 1: Removing & Installing Clockspring
G04011613Courtesy of FORD MOTOR CO.
