Driver Air Bag Module: Installation
- Connect the horn switch electrical connector.
- Make sure the spring clip is behind all the holders on the driver air bag module.

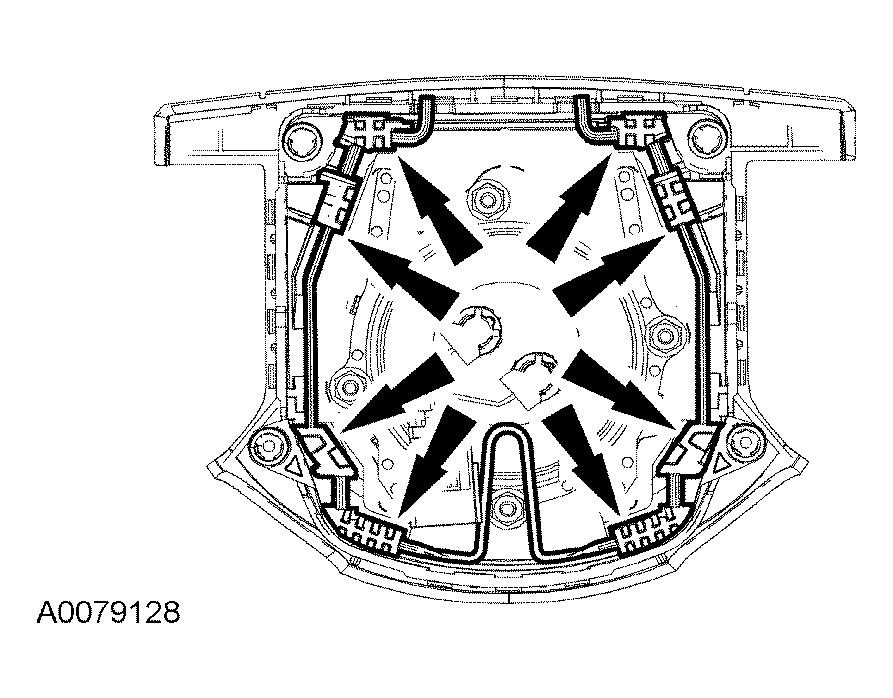

- Align the 4 driver air bag module springs to the steering wheel seats.
- At the top, the springs will align into the cups.
At the bottom, the springs will align around the pins.
- At the top, the springs will align into the cups.
- With the driver air bag module springs aligned to the steering wheel seats, push in on the driver air bag module, seating the spring clips behind the steering wheel tabs.
- Make sure the spring clips are securely fastened behind the tabs on the steering wheel.
- Slide the electrical connector on the wire shield retainer.

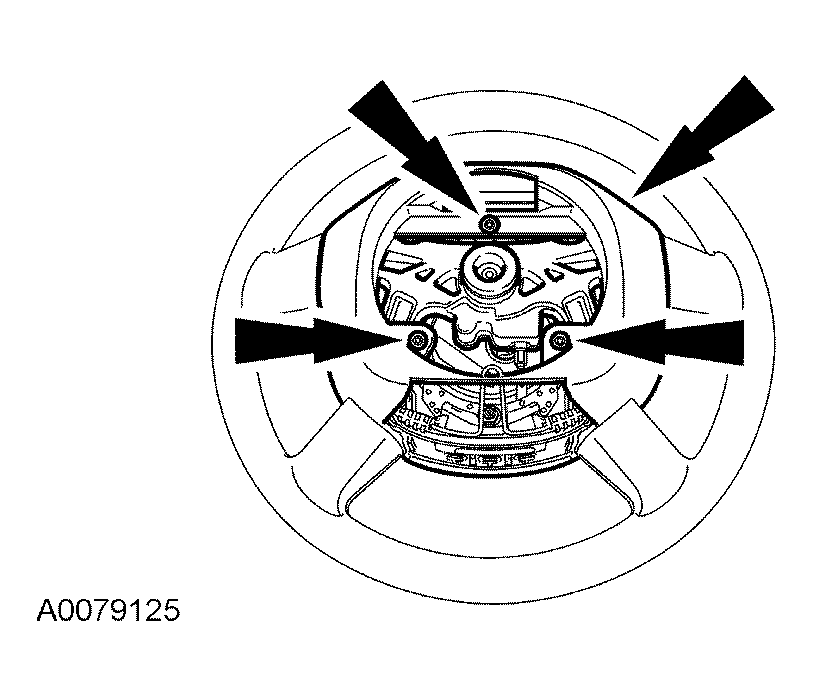

- Align the steering wheel back cover to the steering wheel and install the 3 screws.
- Make sure that the steering wheel back cover is seated all the way around in the steering wheel mating groove.
- Install the steering wheel to the vehicle. For additional information, refer to STEERING COLUMN .
- Repower the system. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
NOTE:

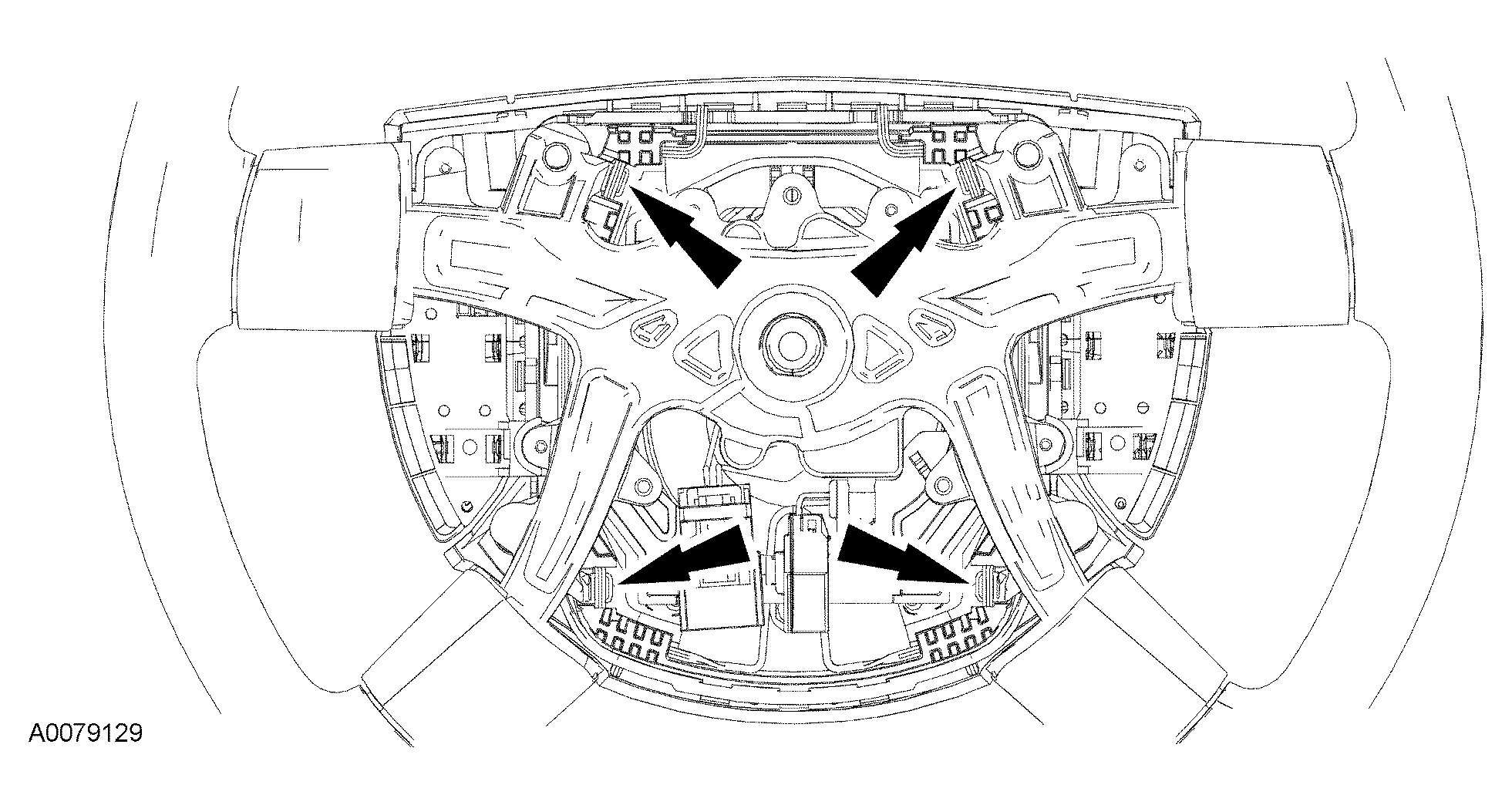

The 4 driver air bag module springs and 4 steering wheel seats can be seen in the exploded view graphic.
