Front Impact Severity Sensor: Notes

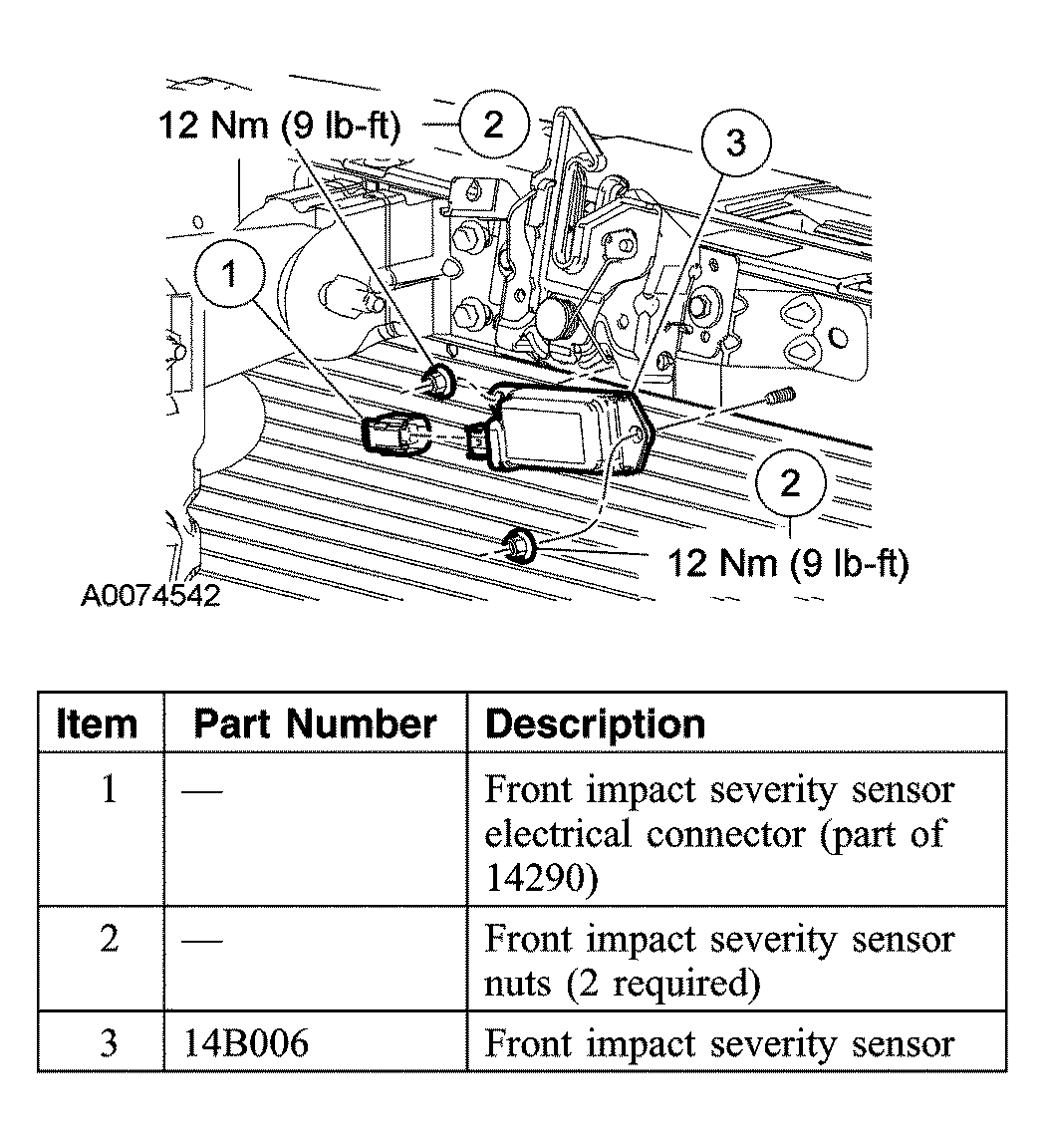

Fig 1: Removing & Installing Front Impact Severity Sensor
G04011629Courtesy of FORD MOTOR CO.
