Home › Ford › 2005 › Freestar Base › Repair and Diagnosis › Restraints › Air Bag, SRS › Supplemental Inflatable Restraint System › Removal And Installation › Passenger Air Bag Module › Notes

Passenger Air Bag Module: Notes

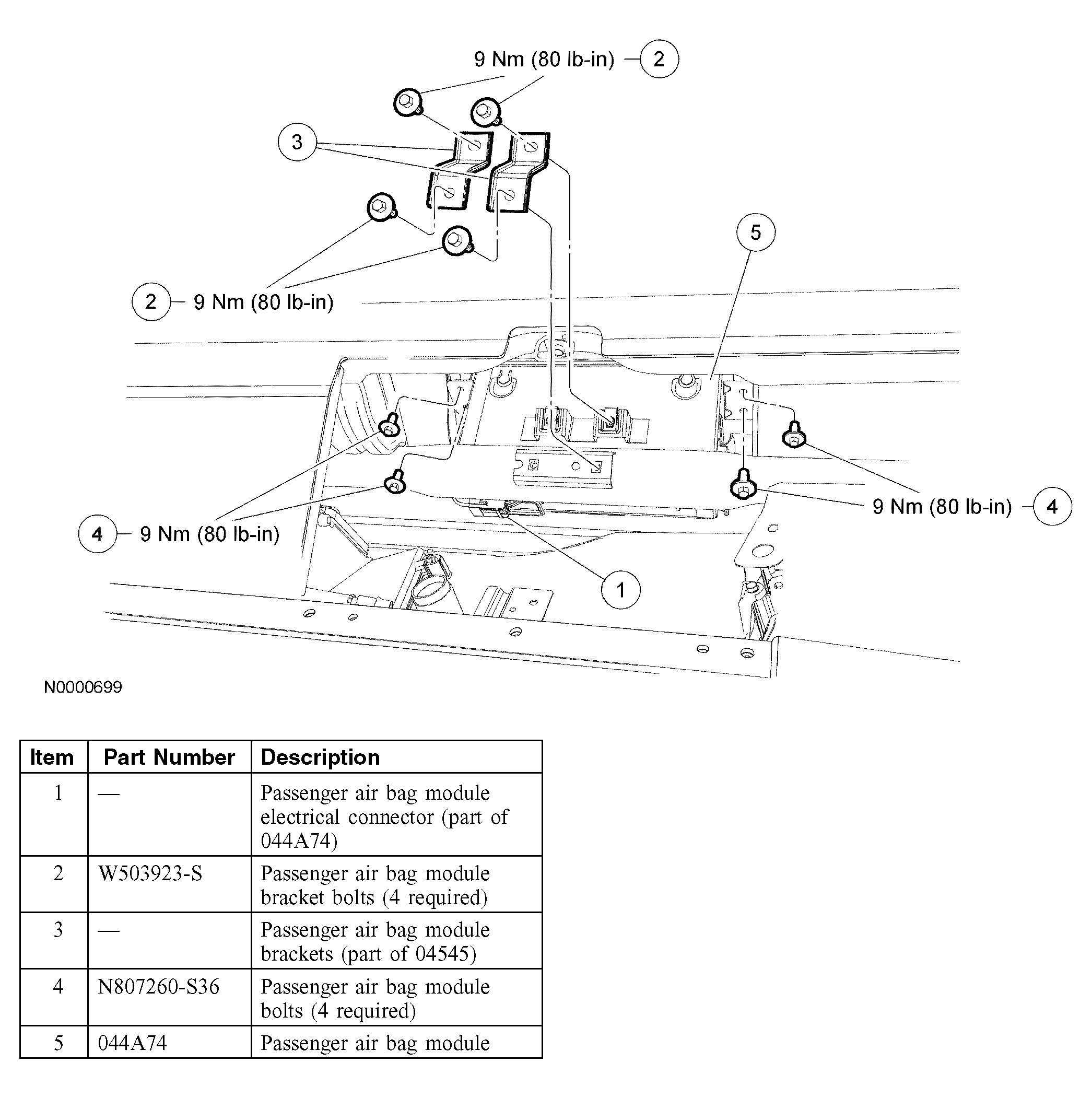

Fig 1: Removing & Installing Passenger Air Bag Module
G04011655Courtesy of FORD MOTOR CO.
