Safety Canopy Module - Early Build: Notes

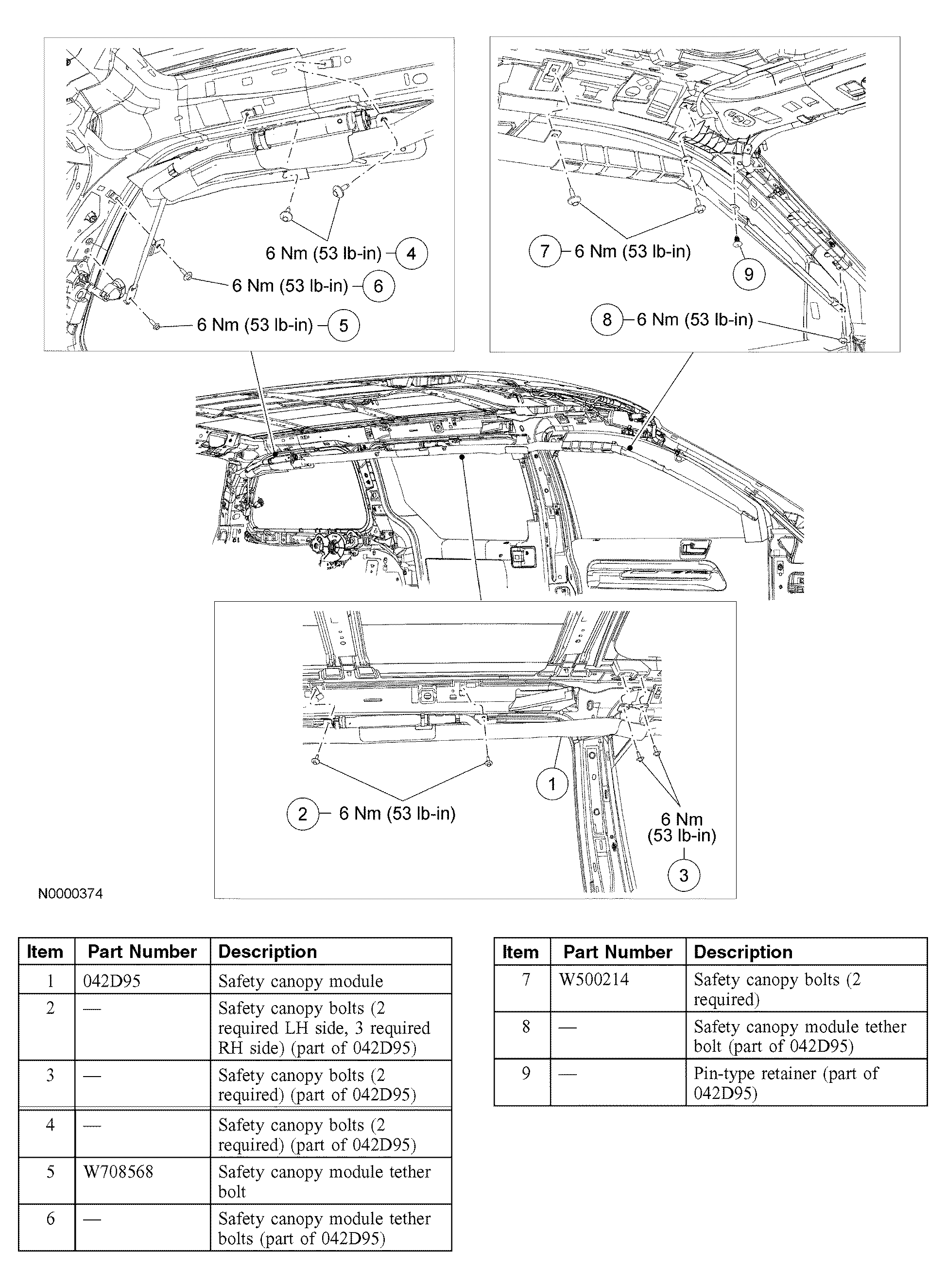

Fig 1: Removing & Installing Safety Canopy Module - Early Build
G04011669Courtesy of FORD MOTOR CO.
