Home › Ford › 2005 › Freestar Base › Repair and Diagnosis › Restraints › Air Bag, SRS › Supplemental Inflatable Restraint System › Removal And Installation › Safety Canopy Module - Late Build › Notes

Safety Canopy Module - Late Build: Notes

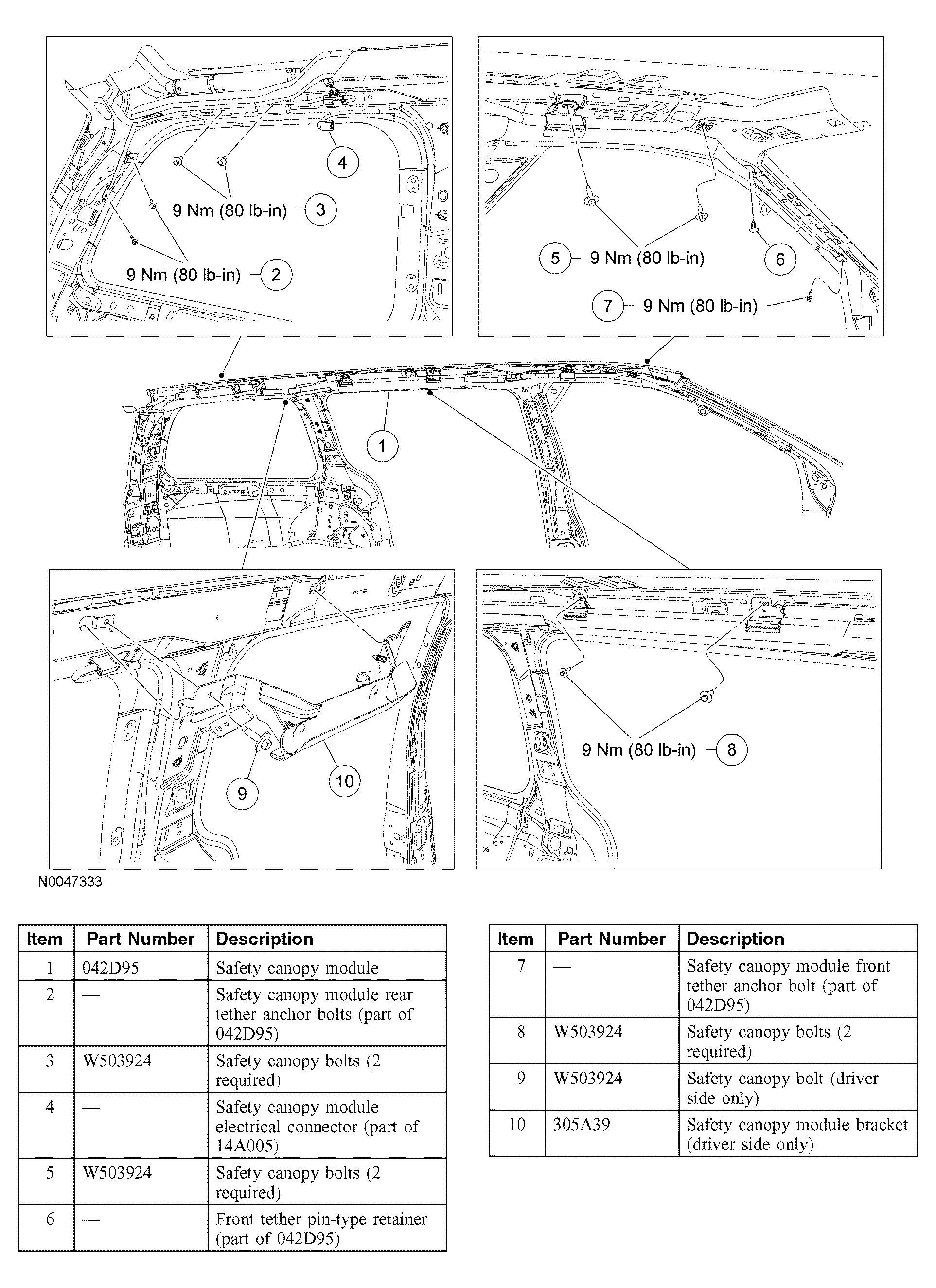

Fig 1: Removing & Installing Safety Canopy Module - Late Build
G04011676Courtesy of FORD MOTOR CO.
