Seat Position Sensor: Notes
NOTE:
Manual seat track position sensor shown, power seat track position sensor similar.

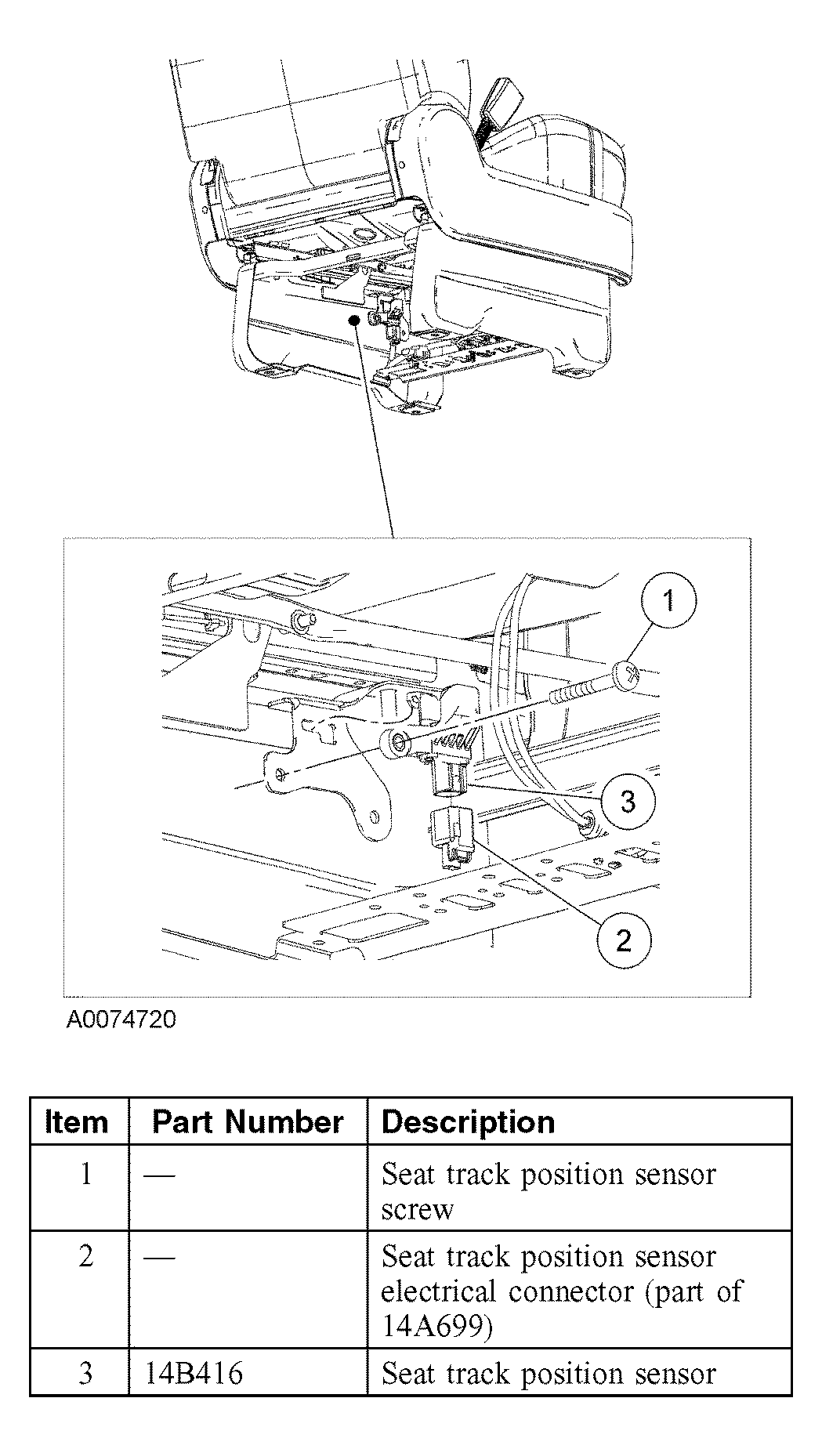

Fig 1: Removing & Installing Seat Track Position Sensor
Courtesy of FORD MOTOR CO.
