Side Impact Sensor - First Row: Notes

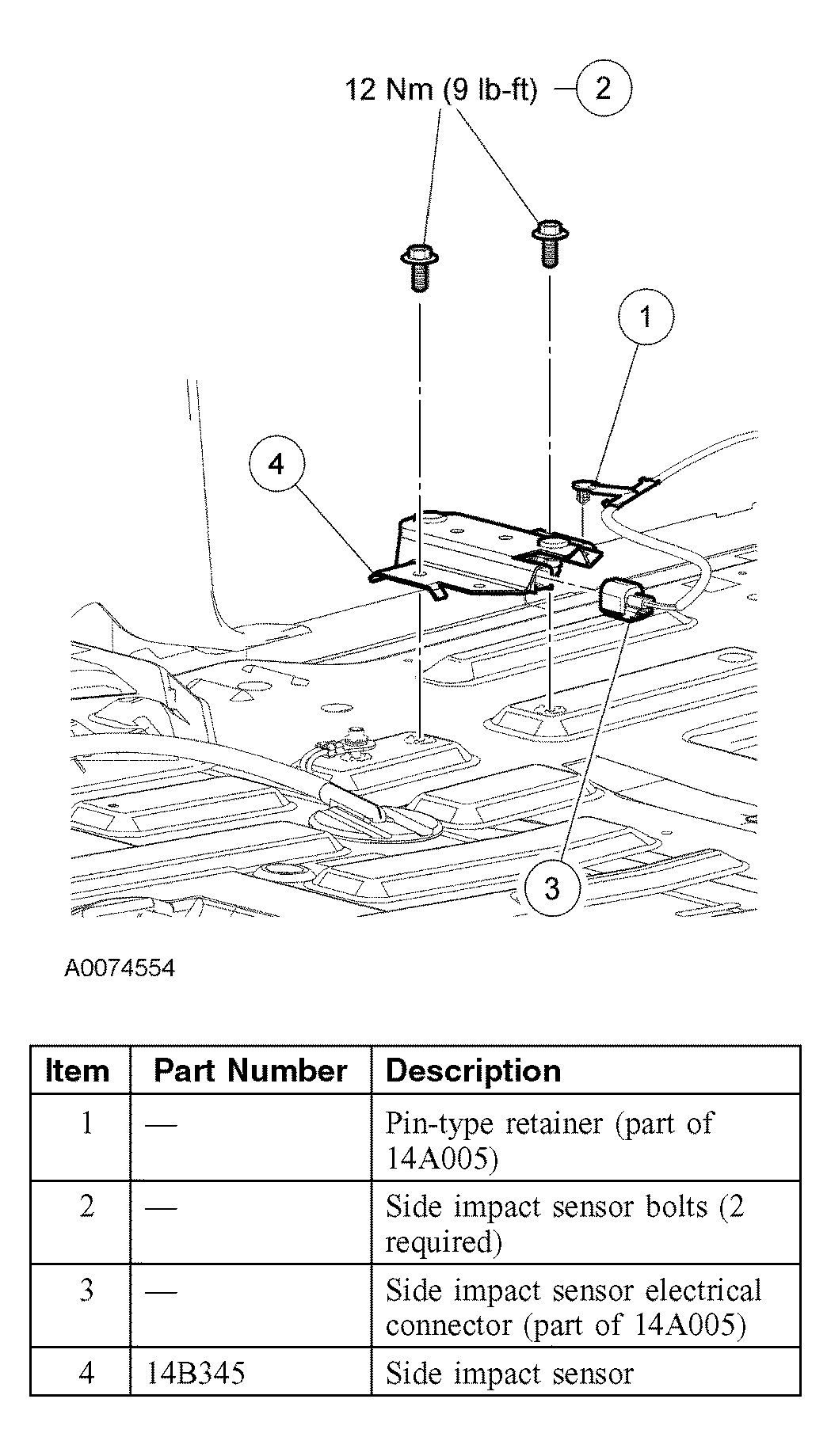

Fig 1: Removing & Installing Side Impact Sensor - First Row
G04011698Courtesy of FORD MOTOR CO.
