Child Safety Seat Tether Anchor - Bucket Seat, Second Row: Notes

NOTE: RH seat shown in illustration, LH seat similar.

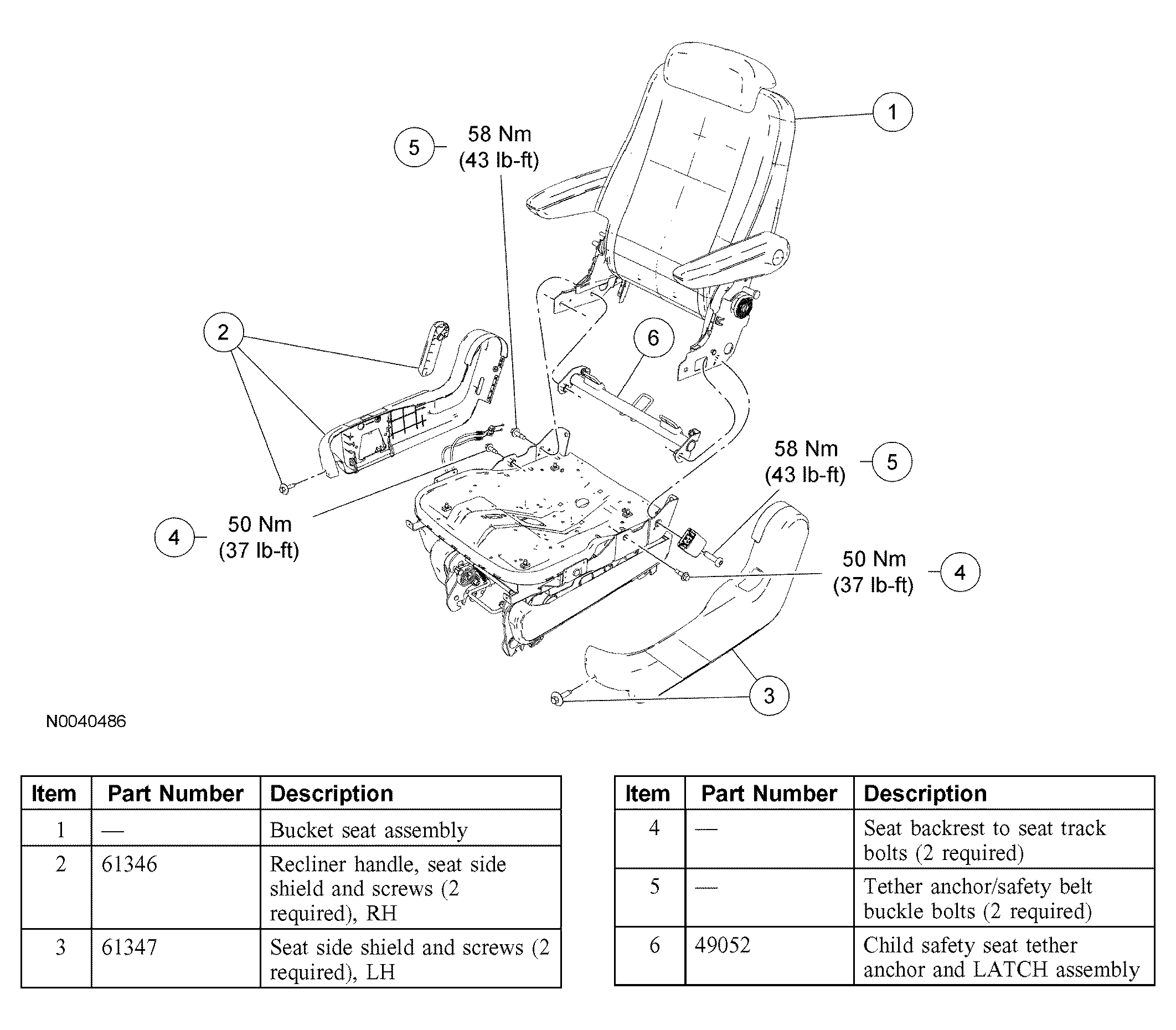

Fig 1: Exploded View Of Child Safety Seat Tether Anchor - Bucket Seat, Second Row
G04011305Courtesy of FORD MOTOR CO.
