Removal and Installation

NOTE: RH side shown in illustration, LH side similar.

NOTE: Vehicle may be equipped with a power liftgate motor assembly.

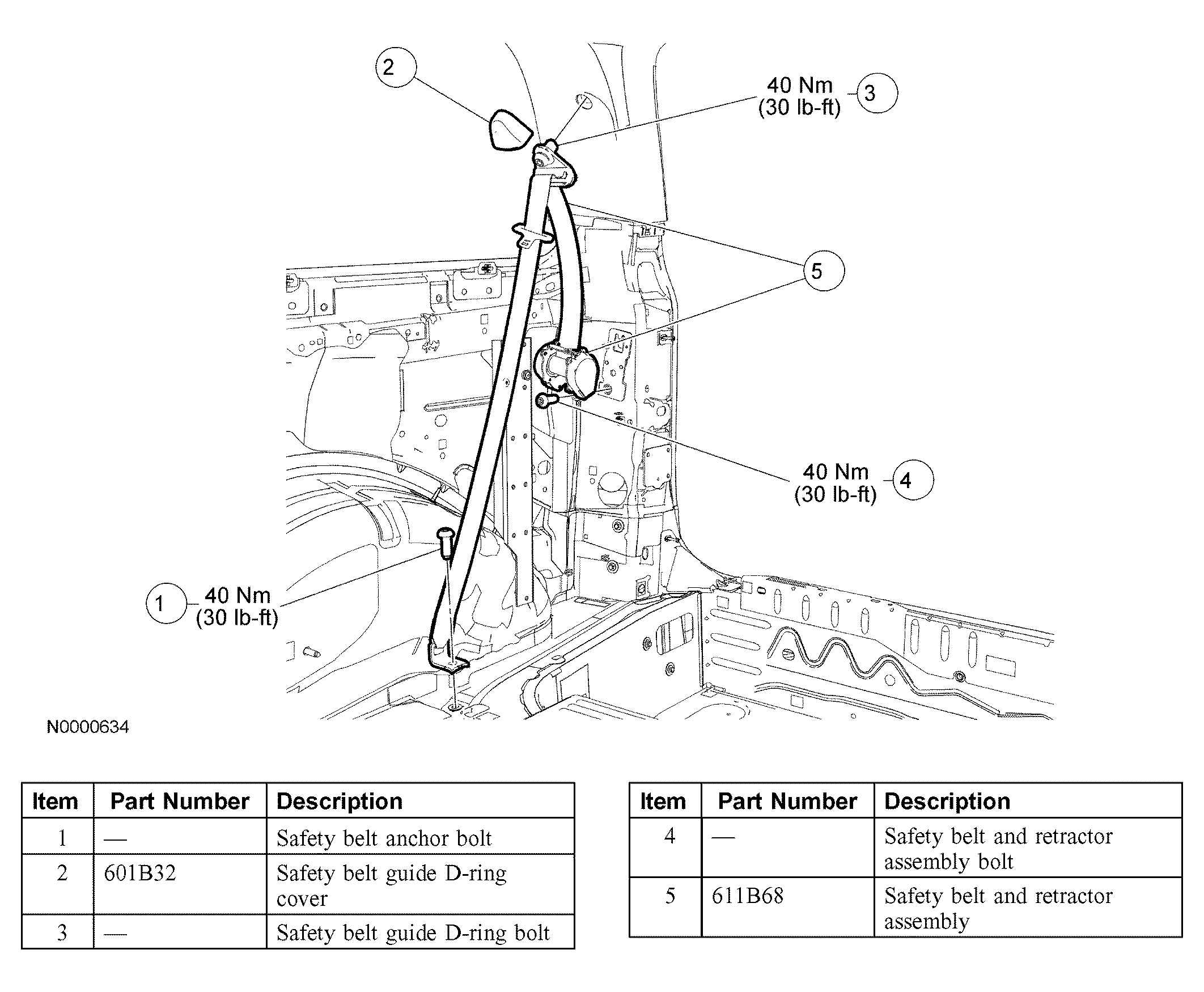

Fig 1: Exploded View Of Safety Belt Retractor - Third Row

Courtesy of FORD MOTOR CO.

WARNING: All safety belt assemblies including retractors, buckles, front seat belt buckle support assemblies (slide bar), shoulder belt height adjusters (if so equipped), child safety seat tether attachments and attaching hardware should be inspected after any collision. All belt assemblies should be installed new unless a qualified technician finds the assemblies show no damage and operate properly. Belt assemblies not in use during a collision should also be inspected and installed new if either damage or improper operation is noted.

CAUTION: When installing the LH third row safety belt retractor, make sure the hook on the retractor frame is installed prior to installing the mounting bolt. Failure to install the safety belt retractor correctly will result in lazy retraction due to the safety belt webbing rubbing on the trim panel.

All vehicles

Remove the safety belt and retractor assembly lower anchor bolt.
- To install, tighten to 40 Nm (30 lb-ft).

NOTE: Push up to remove the D-ring bolt cover.

Remove the safety belt guide cover and D-ring bolt.
- To install, tighten to 40 Nm (30 lb-ft).
Remove the quarter trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .

Vehicles with power liftgate

Remove the power liftgate assembly. For additional information, refer to BODY CLOSURES .

All vehicles

Remove the bolt and safety belt and retractor assembly.
- To install, tighten to 40 Nm (30 lb-ft).

NOTE: Make sure the D-ring and belt move freely after installing.

To install, reverse the removal procedure.
Check the active restraint system for correct operation. For additional information, refer to SAFETY BELT SYSTEM .
